Suspension and wheels
F
- 70 -

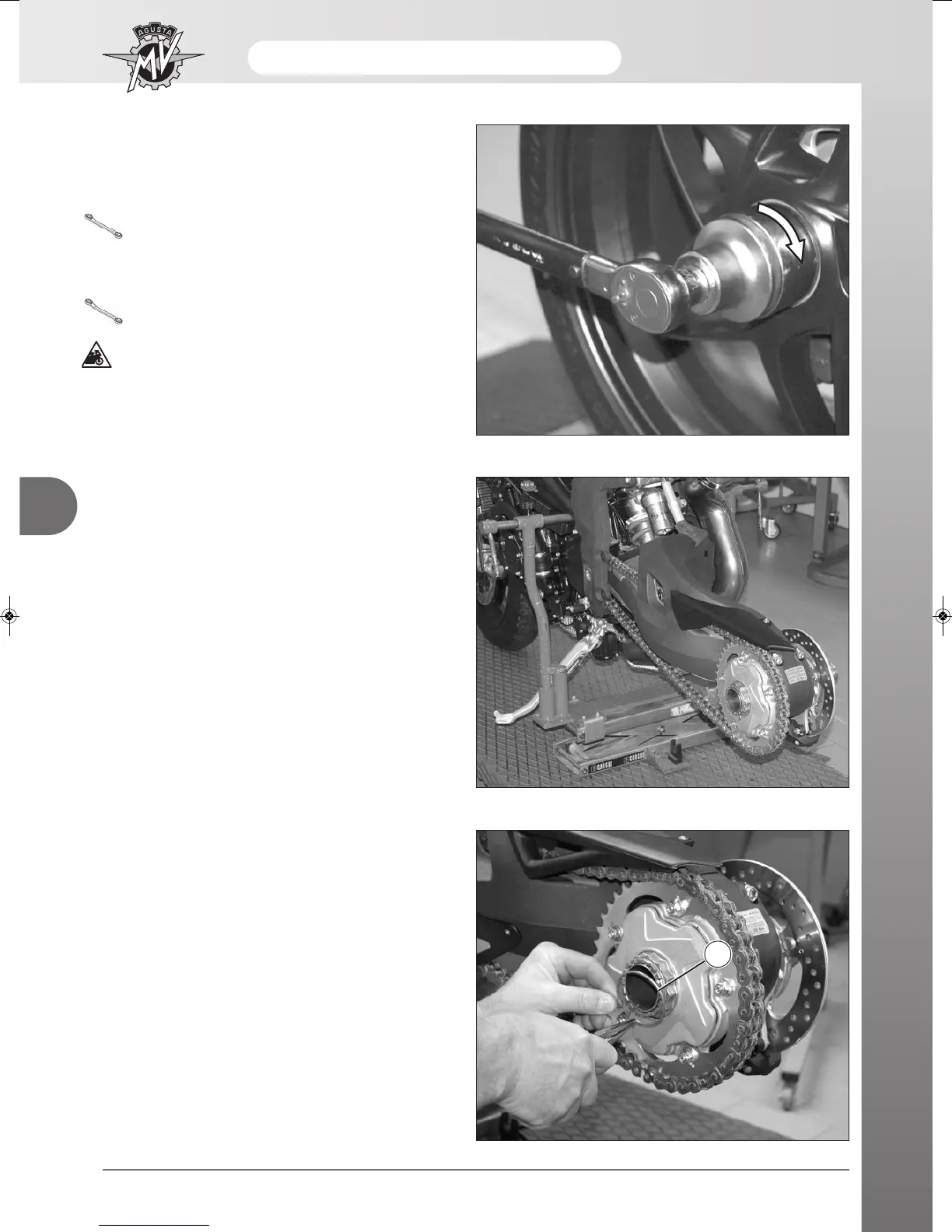

Before checking and overhauling the rear wheel hub
assembly it is necessary to carry out the following pre-
liminary operations:
Place the motorcycle on the rear stand.
Special tool no. 800092642
Remove the rear wheel by removing the polygonal nut.
Utilise the following tools:
• Torque wrench 55 mm polygonal spanner
The polygonal fixing nut of the rear wheel
has a left hand thread. To effectuate the
removal it is therefore necessary to turn the
torque wrench in a clockwise direction as
shown in the figure.
After having effectuated the rear wheel removal, sup-
port the motorcycle with a lift as shown in the figure.
Remove the rear stand.
Remove the safety ring (1) of the crown flange-fixing
nut.
1
