Suspension and wheels
F
- 71 -

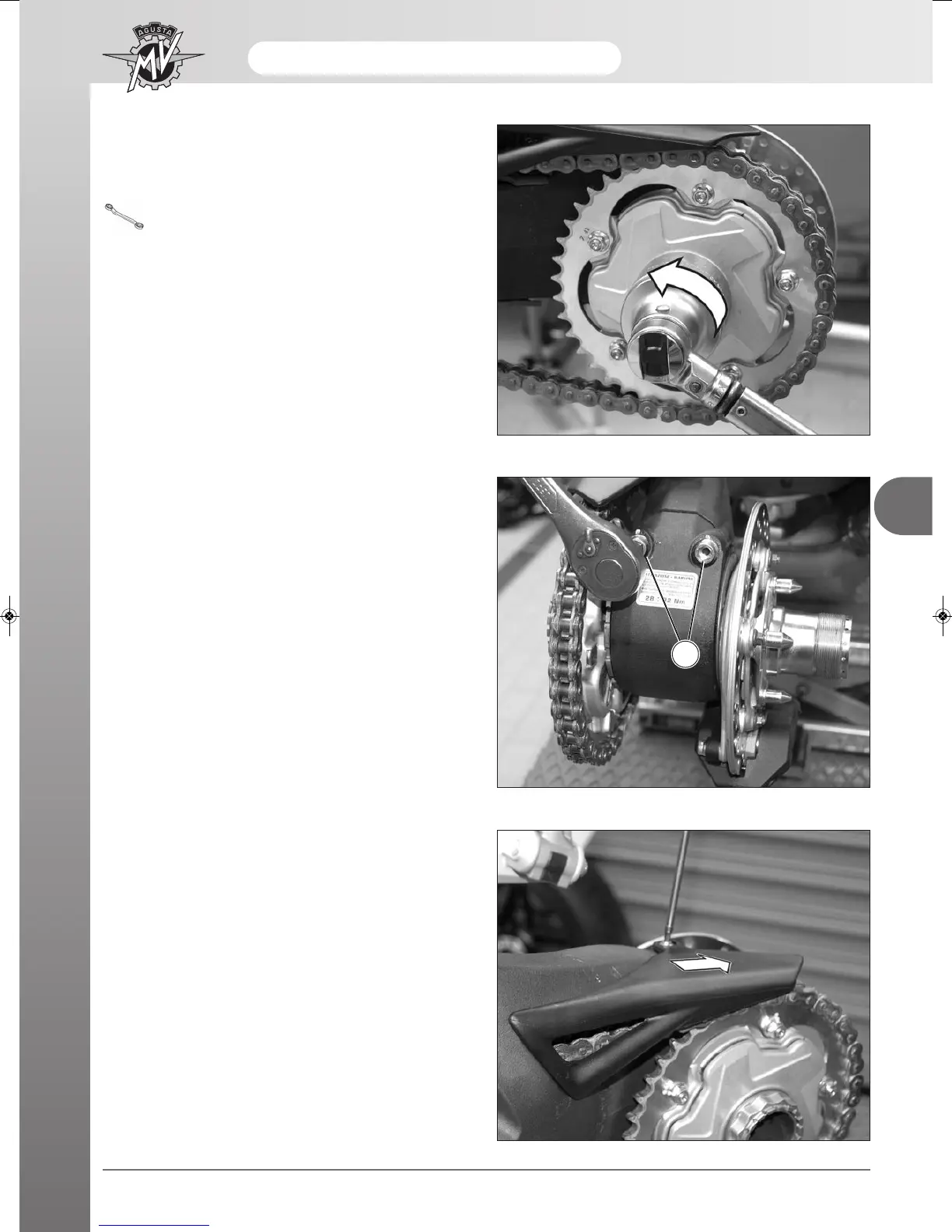

Slacken the nut of the flange by rotating it in an anti-
clockwise direction as shown in the figure. Utilise the
following tools:
• Torque wrench
• 55 mm polygonal spanner
1
Slacken the fixings (1) of the wheel hub.
Remove the screw complete with bushing.
Extract the chain guard by pulling it out from the back
part of the wheel (see figure) so that it is freed from its
position on the swingarm.
