Suspension and wheels
F
- 73 -

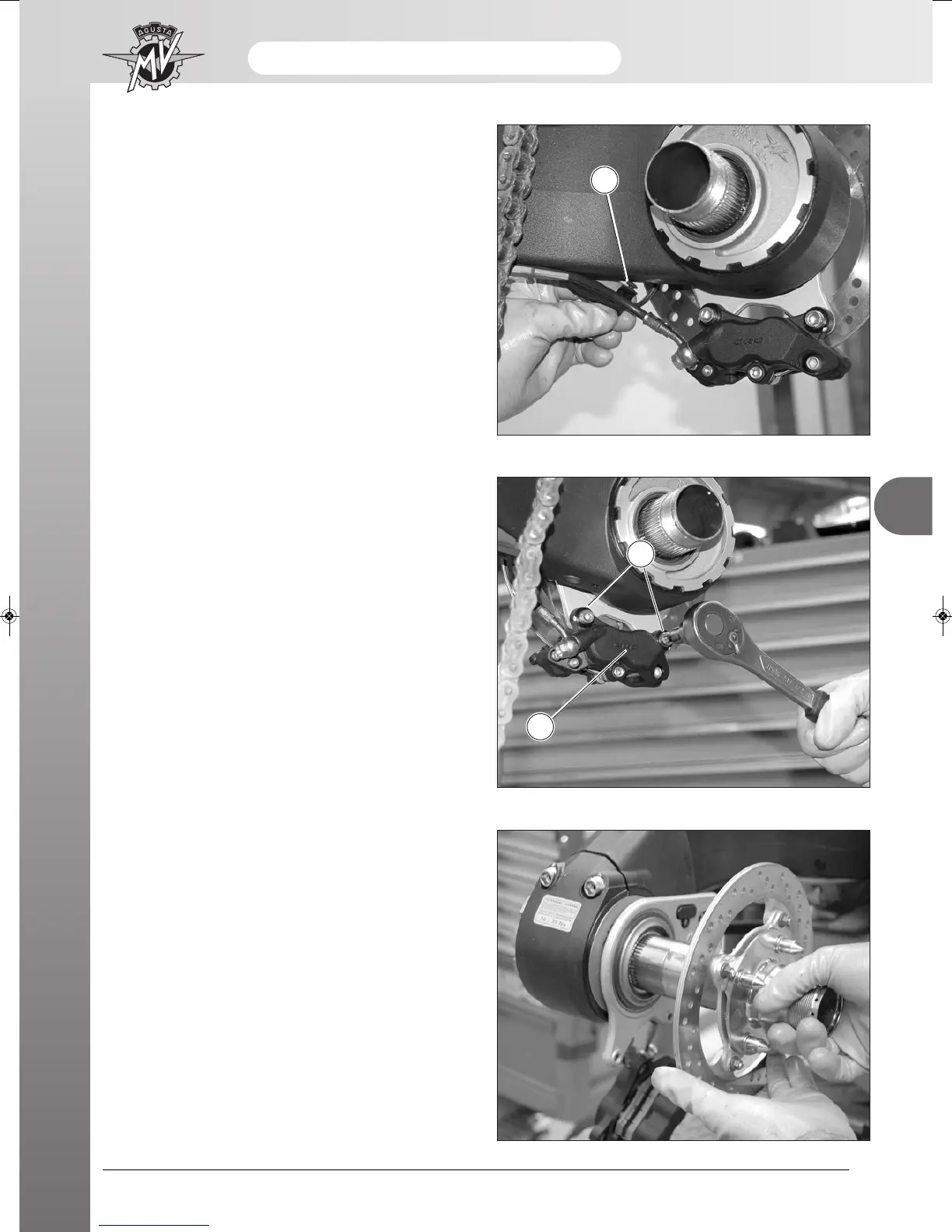

Remove the rubber clamp (1) around the rear brake
pipe.
Slacken the two screws (6) and remove the brake cali-
per (7).
Disassembly of the wheel pin
Remove the wheel spindle complete with the brake
disc, extracting it from the right side of the motorcycle
as shown in the figure.
1
6
7
