Suspension and wheels
F
- 84 -
1
2

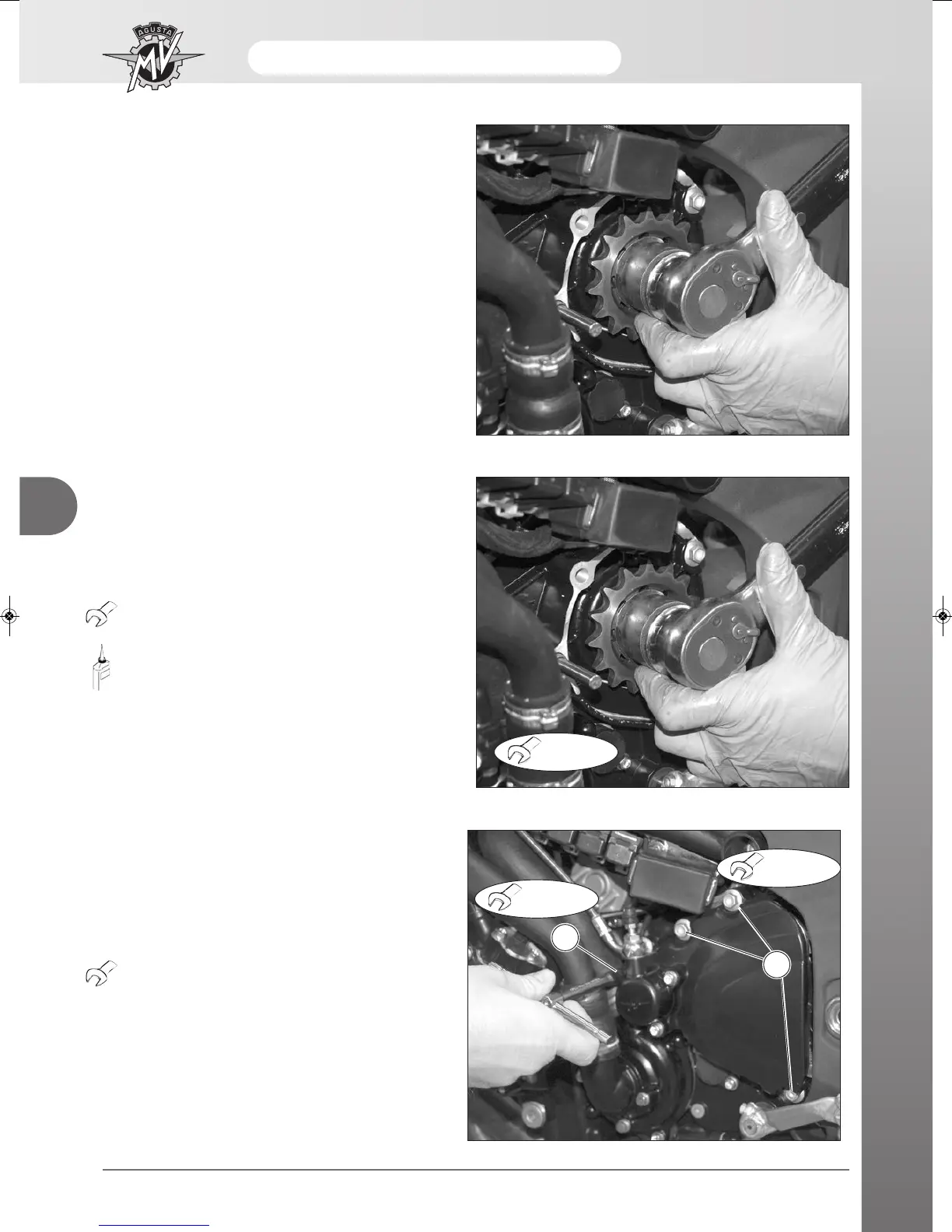

For reassembly, insert the pinion to end stroke.
Take a new washer, assemble it with the nut and tight-
en to the prescribed torque pressure utilising Loctite
thread-locking fluid.
Hammer the new washer down onto the two opposite
faces of the hexagon.
Torque pressure: 140 N·m
Recommended thread-locking fluid: Loctite 243
Remove the chain as described on pages 59-64.
Reassemble the pinion wheel cover after having clea-
ned the support base.
Screw in the four screws lightly and proceed with the
tightening, screwing down respectively on the three
screws M8 (1) and on the screw M6 (2).
Torque pressure (M8 Screws): 25 N•m
Torque pressure (M6 Screws): 8 N•m
140 N•m
25 N•m
8 N•m
Using the specially designed spanner, remove nut (1)
and washer (2).
Remove the pinion and replace it with a new pinion.
