PRODUCT MANUAL iCOOK - DT.MP.IC.2201.2
8.1.7. Door glasses
Mychef iCOOK ovens are equipped with a high thermal efficiency door with three glasses
to reduce heat losses to the maximum. In order to clean these three glasses and the door
itself, the outer door must be opened and the clips that hold the two glasses open.

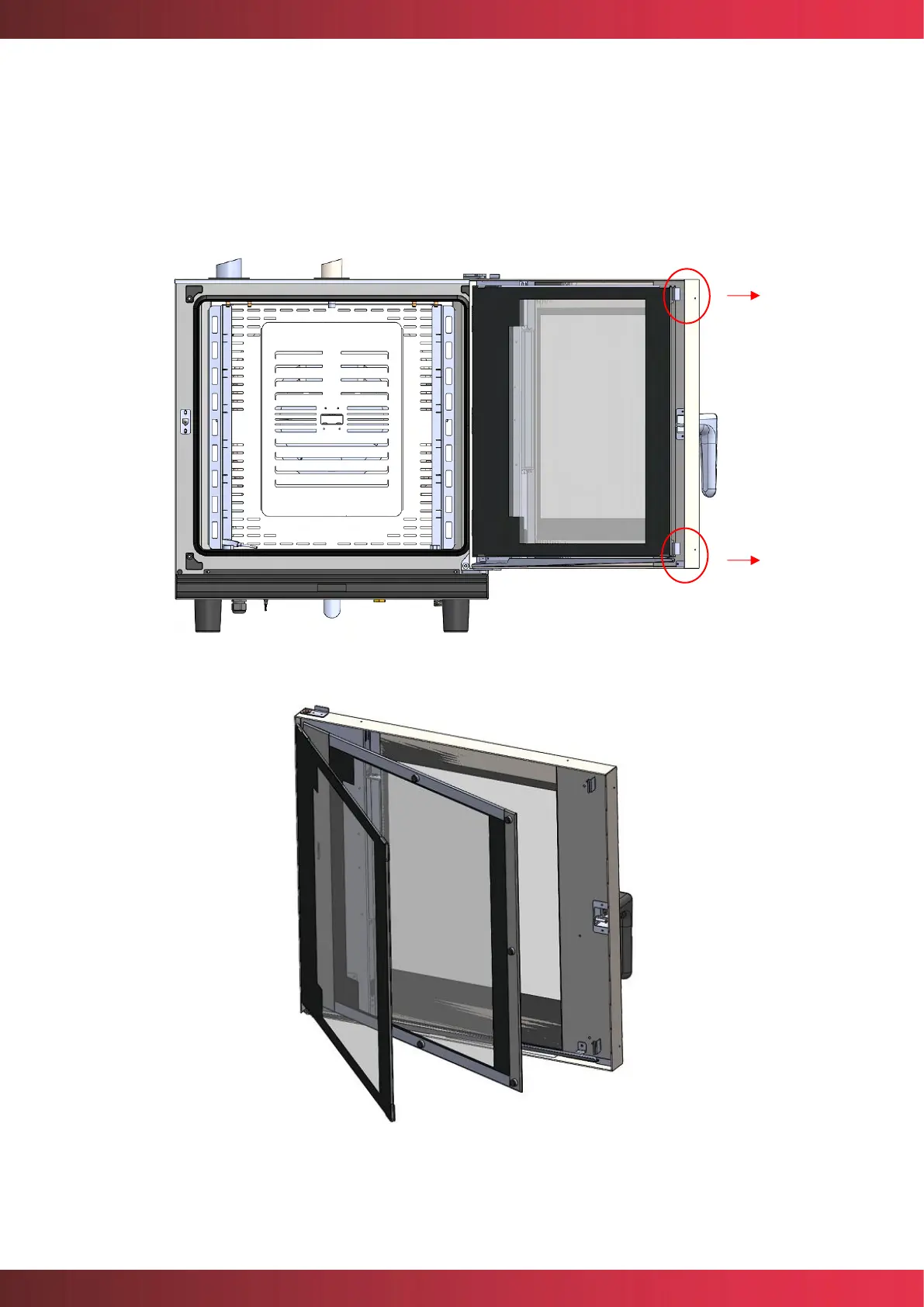

Figure 56. Detail of glass fastening clips
Figure 57. Open glasses detail
