MZ electronic EV-030 - Connections

EV-030 Rev. 07 – 2008
English
31

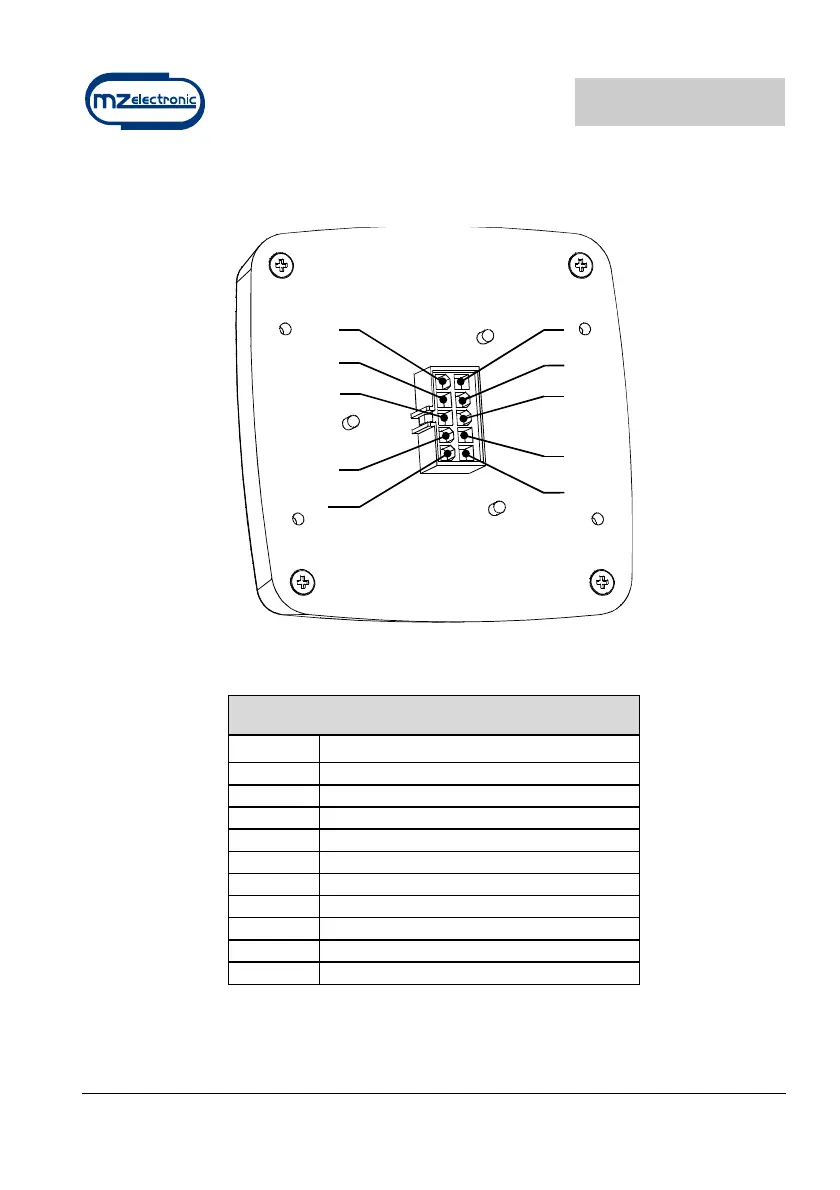

Connections
2
1
3
4
5
6
7
8
9
10
10-POLE REAR CONNECTOR
PIN SIGNAL
1 + Battery
2
3 - Battery
4
5
6 UP command
7 DOWN command
8
9 Rope_Chain sensor input
10 Magnetic sensor
