WHC040 Rev. 01-2021
Español
61

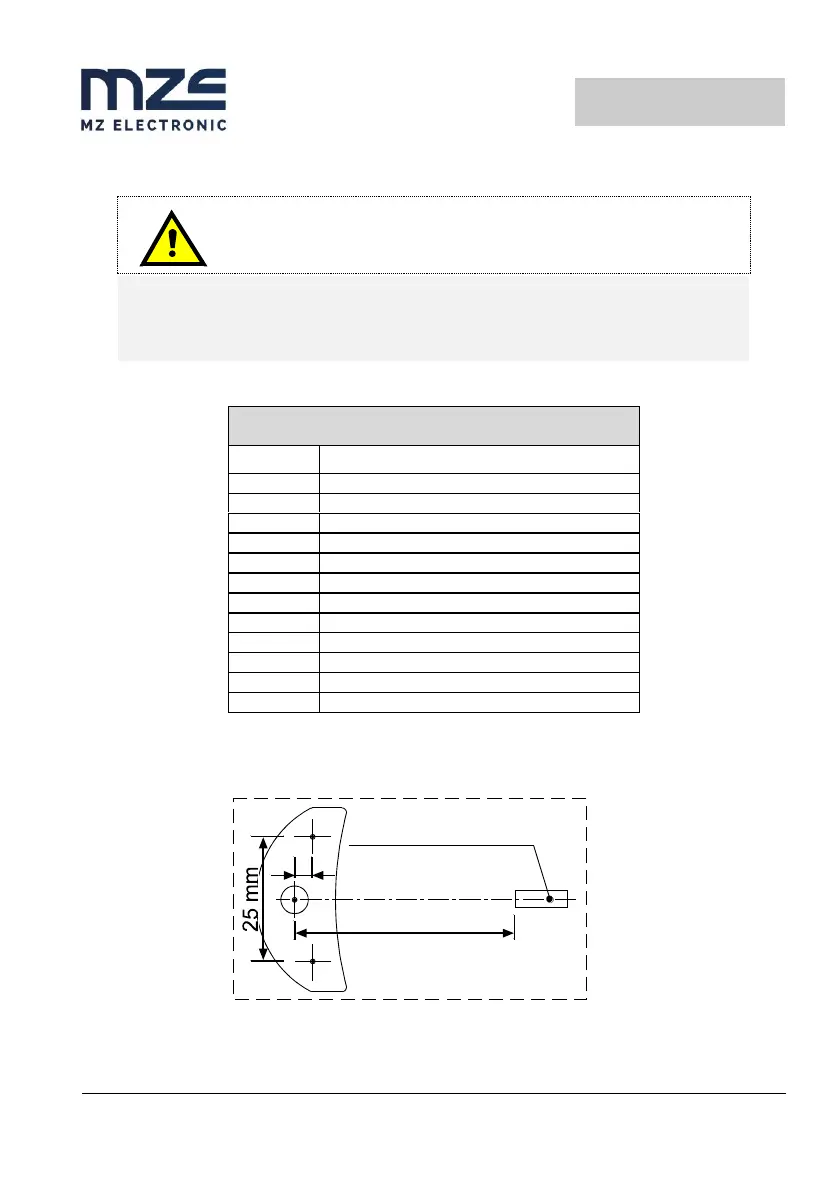

Instalación del cuentametros
(véase esquema eléctrico pagina 73/74)
Atención
DESCONECTAR SIEMPRE LA BATERÍA ANTES DE EFECTUAR LA
INSTALACIÓN.
Conexiones
Sensor
CONECTOR TRASERO DE 6 POLOS
PIN
SEÑAL
POS
- batería
NEG
+ batería
UP
Mando DOWN
DOWN
Mando UP
SW-M
Sensor magnético
SW-M
Sensor magnético
BO-L
Mando Bow Left
BO-R
Mando Bow Right
ST-L
Mando Stern Left
ST-R
Mando Stern Right
CAN-H
CAN-H (CanOpen)
CAN-L
CAN-L (CanOpen)
min.44 mm(1”3/4)
4
magnetic sensor
sensore magnetico
