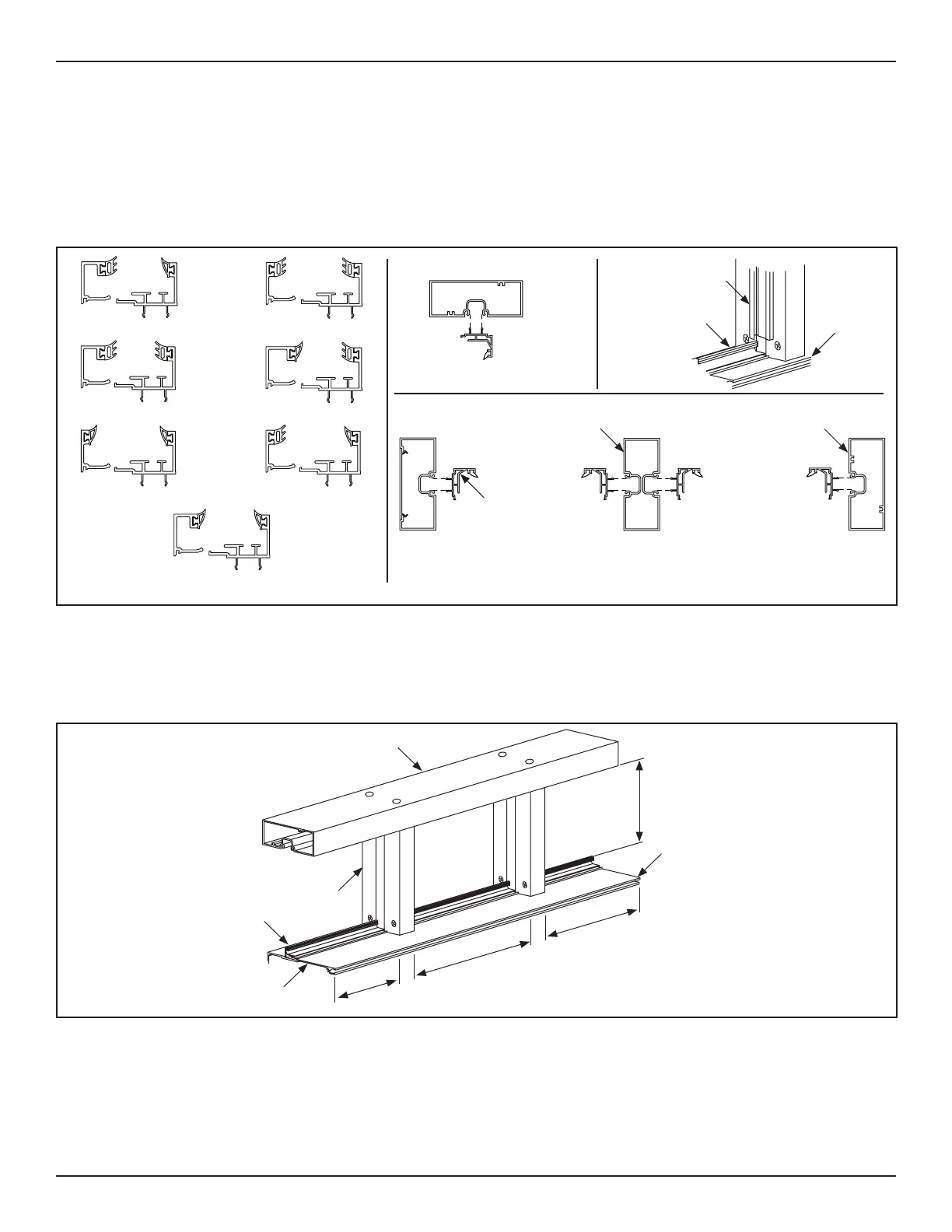

1. Go underneath the Transom Horizontal. Snap-In Base Glass Stops between the Transom Vercals.
a. Ensure the tall back of Base Glass Stops face the Exterior side of building.
2. Go to the Transom Vercal. Snap-In Base Glass Stops between the Transom Horizontal and Base Glass Stops located on top
of the Header.
a. Transom Vercals should be installed just above the Base Glass Stop installed on the Header.
DN 2153
1” Tall, 1/4” Glass
1” Tall, 3/8” Glass
1” Tall, 5/8” Glass
1” Tall, 7/8” Glass
1” Tall, 1/2” Glass
1” Tall, 3/4” Glass
1” Tall, 1” Glass
Pocketed Jamb Tube
Transom Horizontal
Transom Ver cal
1” Snap-In
Base Glass Stop
1” Snap-In
Base Glass Stop
EXTERIOR
EXTERIOR
Example Shown for Transom Ver cals and Jamb Tubes
-looking down- onto Header
Snap-In
Base Glass Stop
Snap-In
Base Glass Stop
Top of
Header
Figure 10
1. Measure between the Boom of the Transom Horizontal and the Top of the Base Glass Stop located on the Header. Cut
strips of Vinyl to that length.
2. Measure the full width of each Base Glass Stop located on the Transom Horizontal. Cut strips of Vinyl to that length.
DN 2148
Measure full width of each Base Glass Stop
Measure between the Top
of Glass Stop and Bo om of
Transom Horizontal to cut
Vinyl Strips
Transom Horizontal
Transom Ver cal
End of Header
Base Glass Stop
End of Header
Figure 11
3. On the same side as the Glass Stop, roll or press Vinyl Strips into each Transom Pocket.
a. Using a Roller, or keeping the vinyl wet with plain or soapy water, can make vinyl installaon easier.
4. The other side of Vinyl Strips are installed aer the Glass Panel has been put in place. Please see “SECTION 17.1: Complete
the Transom Installaon”.
To Next Page
