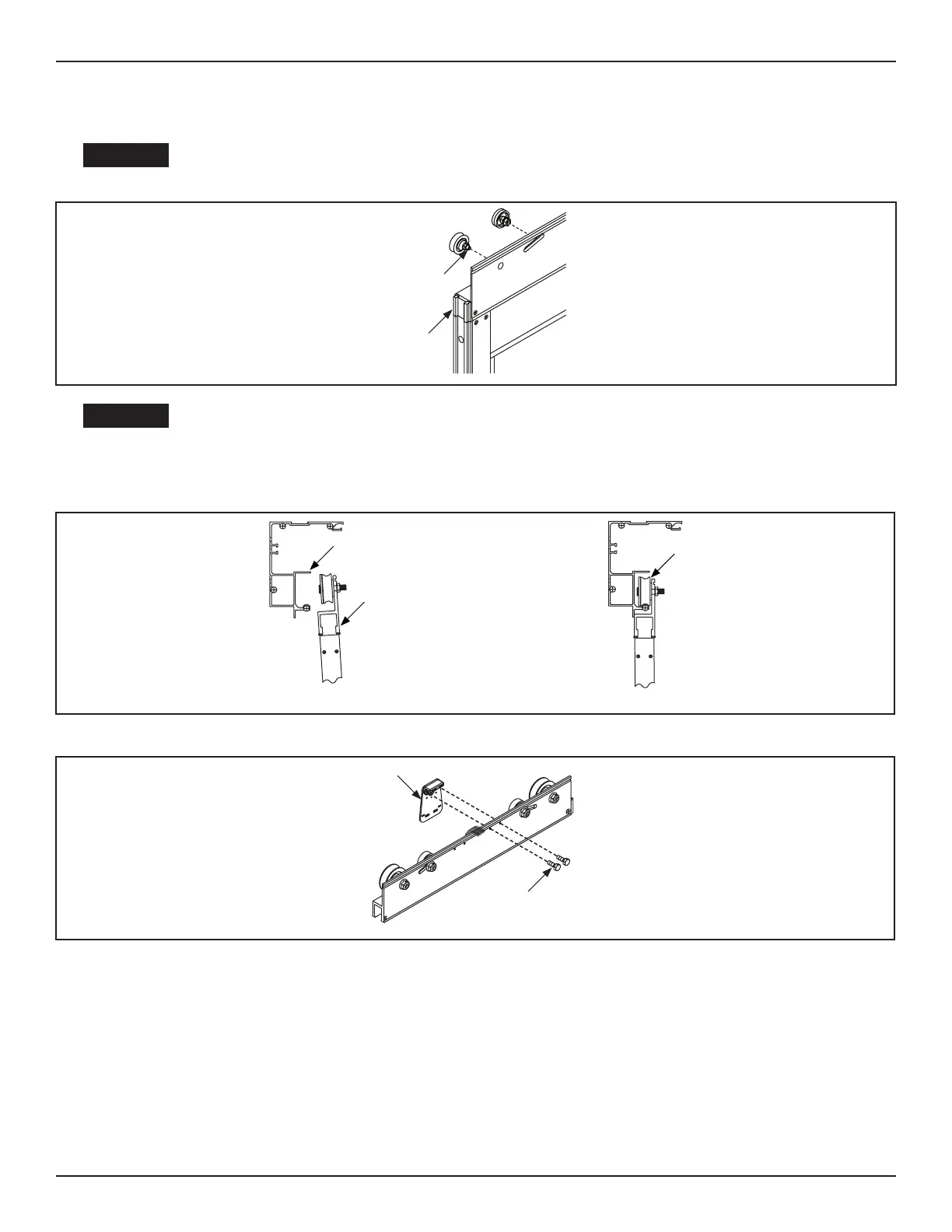

1. Cover the Sidelite Panel with cardboard on the side that will face the Slide door.
End of Roller Axle
Carrier
DN 1903
Figure 54
2. Go to the Carrier on top of Slide Door. Loosen (1) 7/16-20 Whiz Lock Nut on each Roller by inserng (1) 7/32” Allen wrench
into the exposed end of a Roller Axle. Hold the 7/32 inch Allen wrench in place to keep the Roller Axle staonary. At the
same me, loosen (1) 7/16-20 Whiz Lock nut with a 15/16 inch Open End Wrench.
Figure 55
DN 0779
Roller
Carrier
Track
3. To make it easier for rollers to “catch onto the track”, slightly lt and li the Slide Door into the Header, and onto the Track.
Figure 56
Belt Clip
1/4”-20 x 3/4”
DN 1702
4. Secure each Belt Clip to the Carrier with (2) 1/4-20 x 3/4 inch Whiz-Lock screws.
1. Locate the Boom Guide that was pre-installed inside the Pivot Sle located on the Slide Door.
2. Li up the Prongs unl the Boom Guide is directly above the Guide Channels. Drop the Prongs into the Guide Channels.
