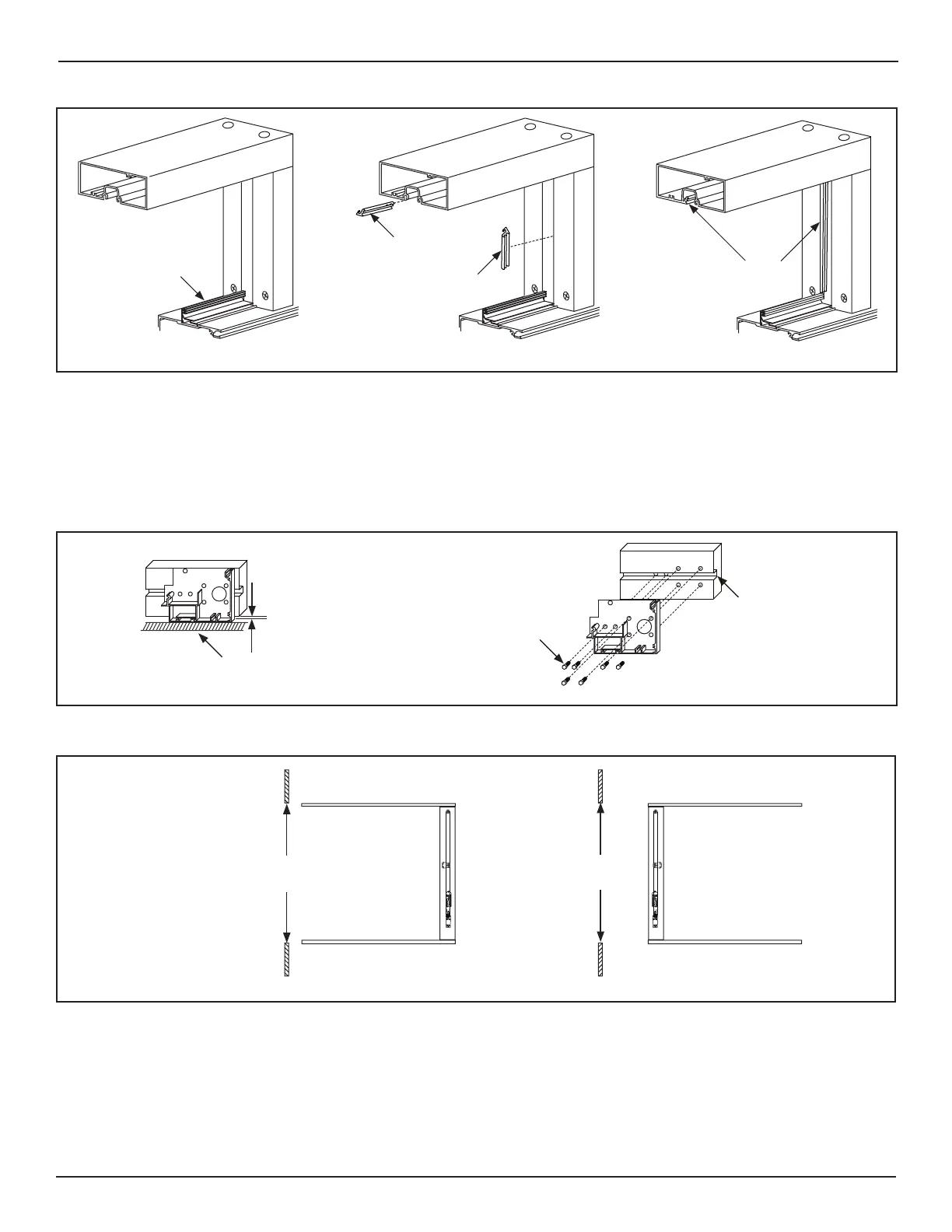

Figure 12 

Note: 1175 Slide Door Units installed with a Transom are shipped with Pocket Jamb Tubes only.
1. Place the Header between the Pocket Jamb Tubes so the removable cover side is facing up. Ensure the Frame is sll
orientated in relaon to the building.
2. Secure the Header to each Jamb Tube with (6) 1/4-20 x .75 Whizlock screws. If installed correctly there will be a 1/8 inch gap
between the boom of Jamb Tubes and the at surface.
Pocketed
Jamb Tube
DN 0949
1/4-20 x .75”
Whizlock Screw
1/8” gap
Flat Surface
Figure 13 

Figure 14 
DN 2263
FIXED SIDELITE UNITS:
ACCESS COVER TYPICALLY
FACES THE EXTERIOR
FULL OPEN UNITS:
ACCESS COVER TYPICALLY
FACES THE INTERIOR
NOTE: Header diagrams shown
with Access Cover removed.
1413121110
98
7654321
1413121110
98
7654321
Door
Opening
Door
Opening
1. Posion Jamb Tubes on either side of Header according to the instrucon scker located on each Jamb Tube, showing
proper locaon and orientaon. Ensure the removable cover side of Header is facing up.
2. Orientate the Frame in relaon to the building:
X 
X 
