NAD C375BEE - Input Selectors; Tone Defeat; Tone Controls; Balance Control

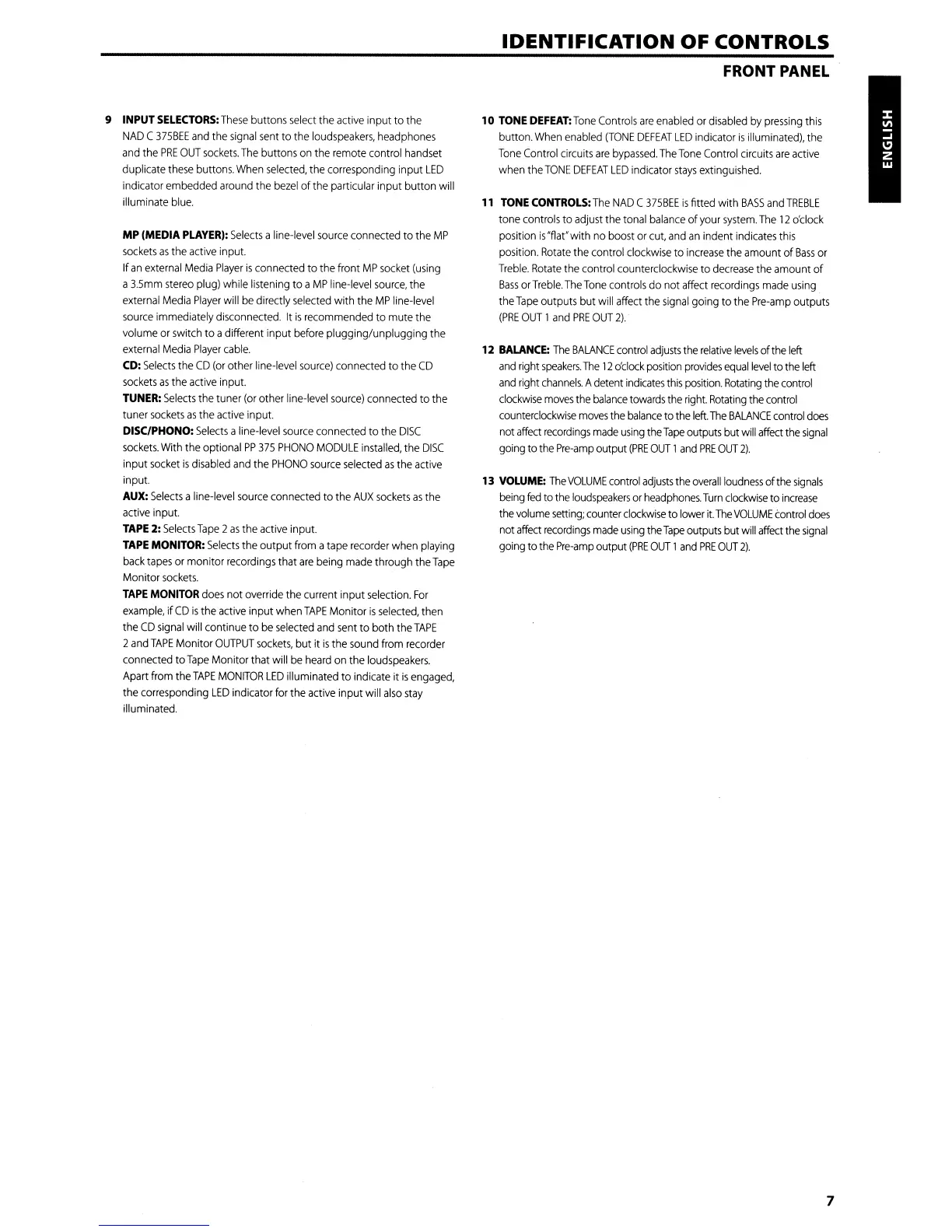

9 INPUT SELECTORS: These buttons select the active input to the
NAD C 37SBEE and the signal sent to the loudspeakers, headphones
and the PRE OUT sockets. The buttons on the remote control handset
duplicate these buttons. When selected, the corresponding input LED
indicator embedded around the bezel ofthe particular input button will
illuminate
blue.
MP (MEDIA PLAYER): Selects aline-level source connected to the MP
sockets as the active input.
If
an external Media Player is connected to the front MP socket (using
a 3.5mm stereo plug) while listening to a MP line-level source, the
external Media Player will be directly selected with the MP line-level
source immediately disconnected. It is recommended to mute the
volume or
switch to adifferent input before plugging/unplugging the
external Media Player cable.
CD: Selects the CD (or other line-level source) connected to the CD
sockets as the active input.
TUNER: Selects the tuner (or other line-level source) connected to the
tuner sockets as the active input.
DISc/PHONO:
Selects aline-level source connected to the DISC
sockets. With the optional PP 37S PHONO MODULE installed, the DISC
input socket is disabled and the PHONO source selected as the active
input.
AUX: Selects aline-level source connected to the AUX sockets as the
active input.
TAPE 2: Selects Tape 2 as the active input.
TAPE MONITOR: Selects the output from atape recorder when playing
back tapes or monitor recordings that are being made through the Tape
Monitor sockets.
TAPE MONITOR does not override the current input selection. For
example, if CD is the active input when TAPE Monitor is selected, then
the
CD signal will continue to be selected and sent to both the TAPE
2 and TAPE Monitor OUTPUT sockets, but it is the sound from recorder
connected to Tape Monitor that will be heard on the loudspeakers.
Apart from the TAPE MONITOR LED illuminated to indicate it is engaged,
the corresponding LED indicator for the active input will also stay
illuminated.
IDENTIFICATION OF CONTROLS
FRONT PANEL
10 TONE DEFEAT: Tone Controls are enabled or disabled by pressing this
button. When enabled (TONE DEFEAT LED indicator is illuminated), the
Tone Control circuits are bypassed. The Tone Control circuits are active
when the TONE DEFEAT LED indicator stays extinguished.
11 TONE CONTROLS: The NAD C 37SBEE is fitted with BASS and TREBLE
tone controls to adjust the tonal balance of your system. The 12 o'clock
position is "flat" with no boost or cut, and an indent indicates this
position. Rotate the control clockwise to increase the amount of Bass or
Treble. Rotate the control counterclockwise to decrease the amount of
Bass or Treble. The Tone controls do not affect recordings made using
the Tape outputs but will affect the signal going to the Pre-amp outputs
(PRE OUT 1 and PRE OUT 2).
12 BALANCE: The BALANCE control adjusts the relative levels of the left
and right speakers. The 12 dclock position provides equal level to the left
and right channels. Adetent indicates this position. Rotating the control
clockwise moves the balance towards the right. Rotating the control
counterclockwise moves the balance to the left. The BALANCE control does
not affect recordings made using the Tape outputs but will affect the signal
going to the Pre-amp output (PRE OUT 1 and PRE OUT 2).
13 VOLUME: The VOLUME control adjusts the overall loudness of the signals
being fed to the loudspeakers or headphones. Turn clockwise to increase
the volume setting; counter clockwise to lower it. The VOLUME control does
not affect recordings made using the Tape outputs but will affect the signal
going to the Pre-amp output (PRE OUT 1 and PRE OUT 2).
7
