8. TORQUE CHARACTERISTICS
(1) 40,000min
-1
(rpm)
Torque (cN･m)
35 40302520151050
0
100
90
80
70
60
50
40
30
20
10
0
1400
1200
1000
800
600
400
200
Speed
(
×10
3
min
-1
(rpm))
Output
(
W
)
TorqueTorque
Output
Output
Continuous Duty Area
Continuous Duty Area
Fig. 4
(2) 20,000min
-1
(rpm)
Fig. 5
Speed
(
×10
3
min
-1
(rpm))
Torque (cN･m)
0
100
90
80
70
60
50
40
30
20
10
0
1400
1200
1000
800
600
400
200
Output
(
W
)
20151050
Torque
Output
Torque
Output
Continuous Duty Area

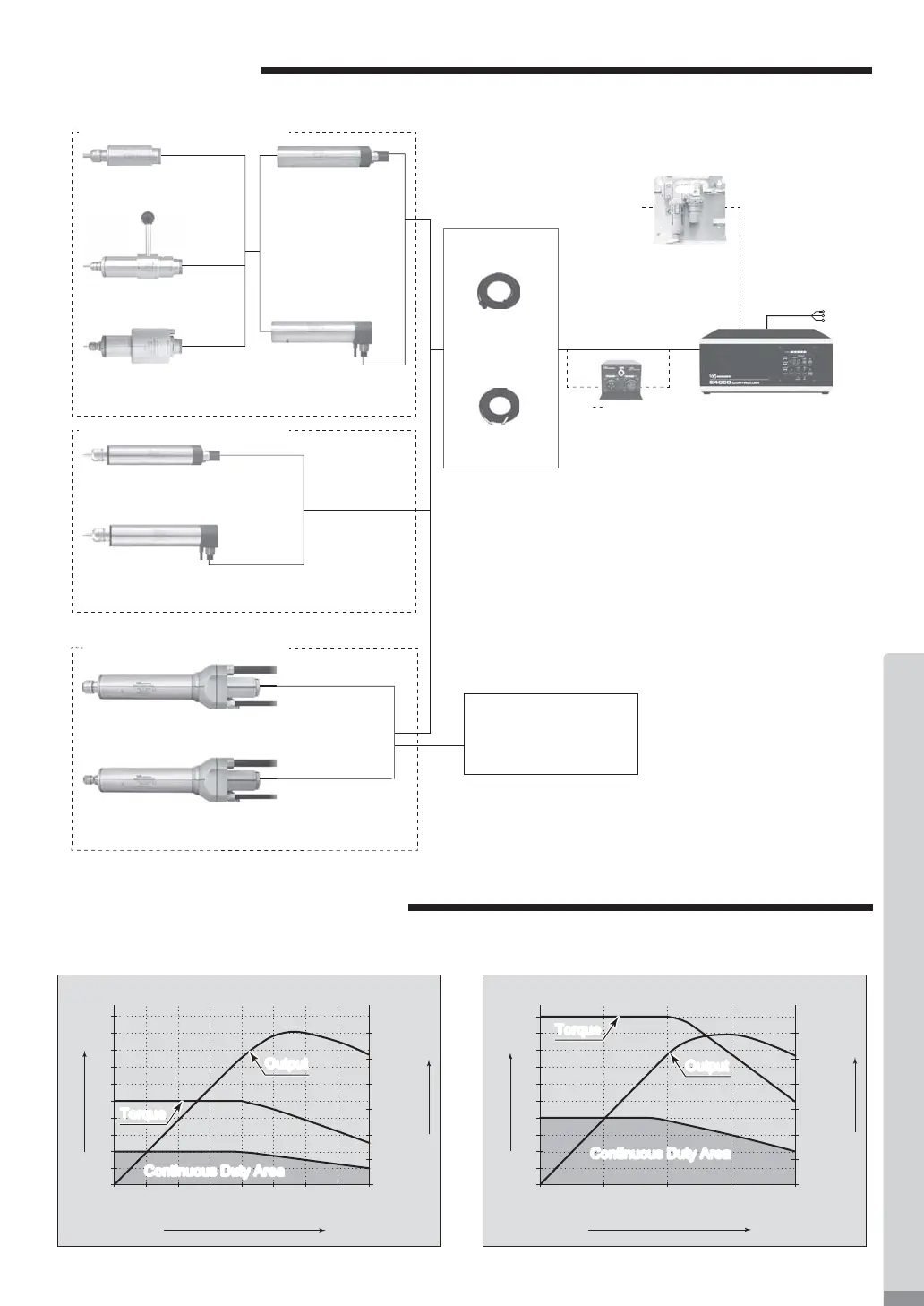

7. SYSTEM CHART
Fig. 3
E4000 CONTROLLER can be used in the following the systems (Fig. 3).
20,000min
-1
(rpm) - 40,000min
-1
(rpm)
20,000min
-1
(rpm) / 40,000min
-1
(rpm)
Brushless Motor Spindle
BMS-4020 / BMS- 4040
Spindle
NR-4040
Brushless Motor
EM-4020 / 4040
Quick Change Spindle
NRR4040-QC
Air Quick Change Spindle
NR4040-AQC
Brushless Motor Spindle
BMS-4020RA / BMS- 4040RA
E4000
SAFETY RELAY BOX
(Option) *1
*1 :
A safety system for the machine can be configured by connecting a
SAFETY RELAY BOX to the E4000 CONTROLLER.
E4000
CONTROLLER
(200 - 240V)
Air Line Kit
AL-C1204
Compressor
Motor Cord
(Motor Power Line)
Motor Cord
(Motor Signal Line)
Brushless Motor
EM- 4020A / 4040A
EMCD-4000
-2M / 4M / 6M / 8M
EMCD-4000S
-2M / 4M / 6M / 8M
20,000min
-1
(rpm) / 40,000min
-1
(rpm)
Brushless Motor Spindle
(Coolant through specification）
BMS- 4020-MQL / BMS- 4040-MQL
Brushless Motor Spindle (Coolant through specification）
BMS- 4020-MQL-CHK / BMS- 4040-MQL-CHK
Hight pressure coolant device
or
Oil Mist supplying apparatus
(Machine owned by customer)
