Nakanishi E4000 CONTROLLER - Motor Cord Connection Procedure

66
Motor Cord Plug (Motor Signal
Line)
Motor Cord Plug (Motor Signal
Line) Fixing Ring
Motor Cord Plug (Motor Power
Line) Fixing Ring
MOTOR - A
Connector
MOTOR - B
Connector
Motor Cord Plug (Motor Power
Line)
MOTOR - A
Connector
MOTOR - B
Connector
Motor Cord Plug
(Motor Power Line)
Motor Cord Plug
(Motor Signal Line)
Alignment Hole
Alignment Pin
Alignment Hole
Alignment Pin

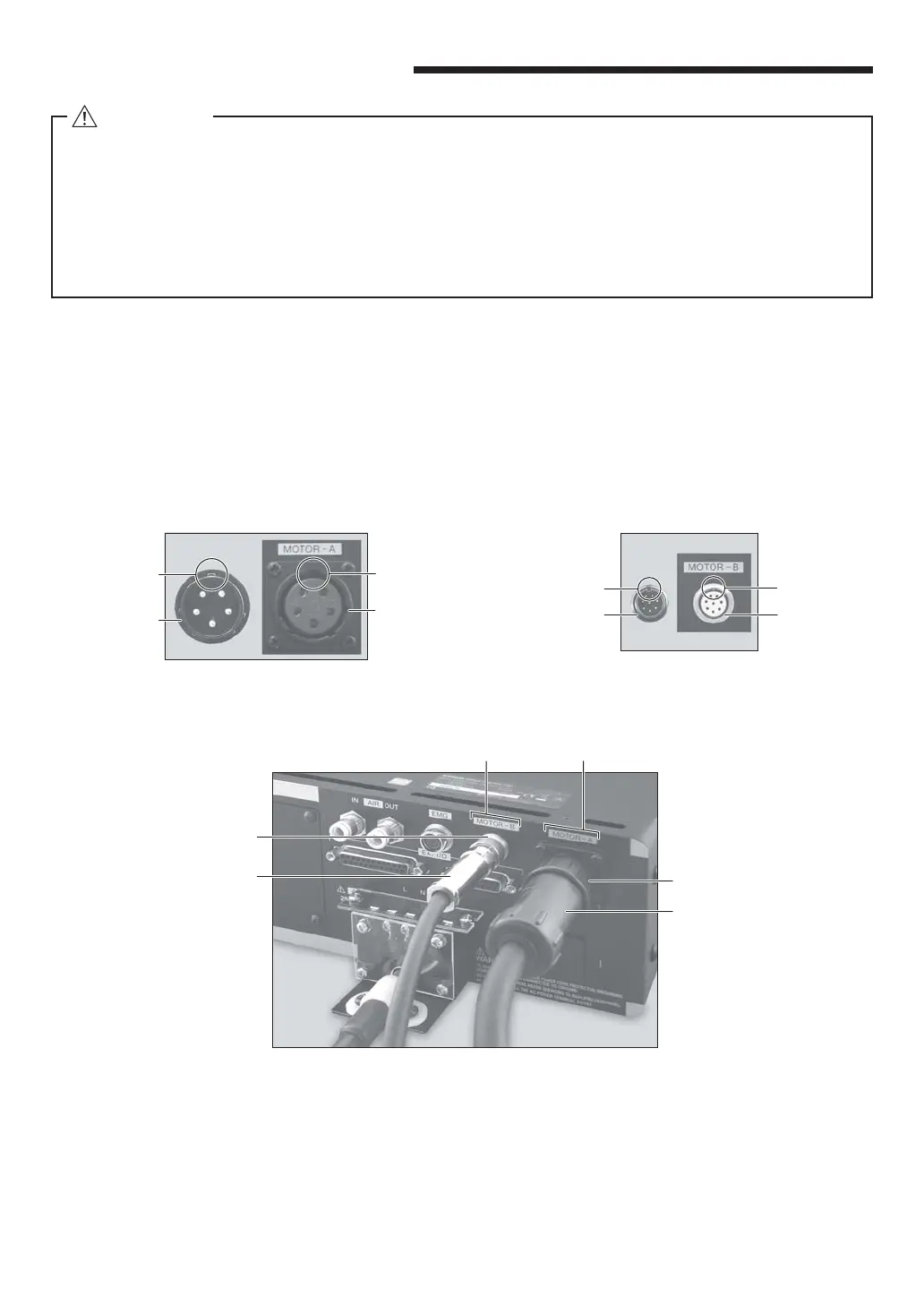

12. MOTOR CORD CONNECTION
Fig. 16
Fig. 17
(1)
(2)
Ensure the Alignment Pin of the Motor Cord Plug (Power Line) is located upward (12 o-clock).
Carefully insert the Alignment Pin of Motor Cord Plug (Power Line) into the Alignment Hole (MOTOR - A
Connector) of the rear of the CONTROLLER and push straight. Tighten the Fixing Ring of the Motor Cord Plug
(Power Line). (Fig. 16, 18)
(3)
(4)
Ensure the Alignment Pin of the Motor Cord Plug (Signal line) is located upward (12 o-clock).
Carefully insert the Alignment Hole of Motor Cord Plug ( Signal line ) into the Alignment Pin (MOTOR - B
Connector) of the rear of the CONTROLLER and push straight. Tighten the Fixing Ring of the Motor Cord Plug
(
Signal line ). (Fig. 17, 18)
Fig. 18
CAUTION
・Before connecting to the Motor Cord Plug (For Power Line / Signal Line), make sure the Main
Power Switch is turned OFF. If the Main Power Switch is turned ON while connecting the Motor
Cord Plug (For Power Line / Signal Line), damage may occur to the CONTROLLER .
・Install the protective cover (Protective Cover etc.) to prevent damage or contamination to the
Motor Cord Plug (For Power Line / Signal
Line) when not in use.
・After connecting the Motor Cord (For Power Line / Signal Line), do not make any sharp bends to
the Motor Cord (For Power Line / Signal Line).
Motor Cord Plug (For Motor Power Line) Motor Cord Plug (For Motor Signal Line)
