VALVE
DIAPHRAGM
EXHAUST
VALVE
BODIES
M5 SOCKET HEAD
SCREWS

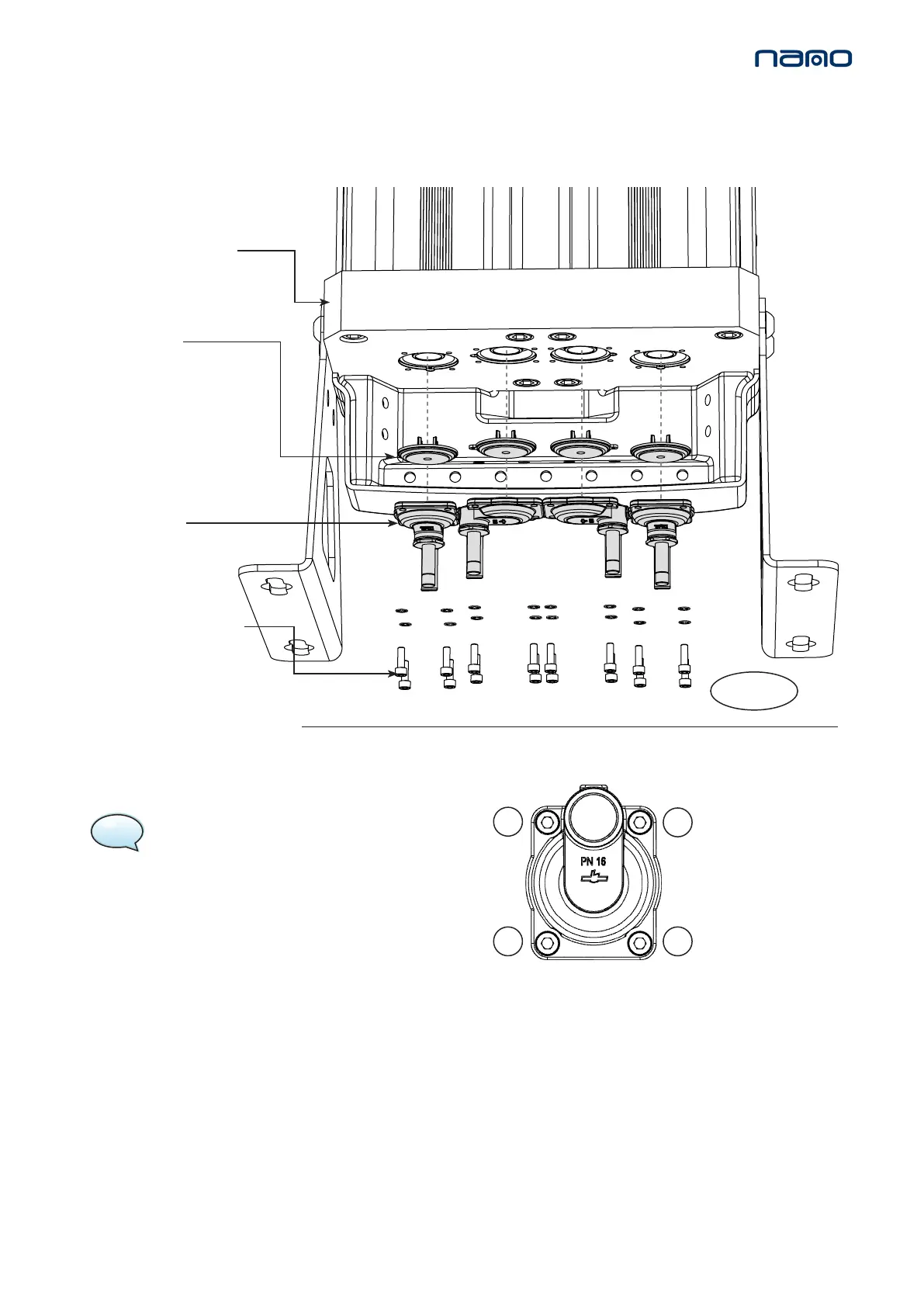

Figure 4.
4. Remove the 16x M5 socket head screws and the 16x spring washers and discard them. Remove and
discard the valve bodies from the boom manifold. (See gure 4)
5. Remove and discard the 4x diaphragms from the boom manifold. (See gure 4)
6. Replace the 4x diaphragms and 4x valves from the service kit and replace the 16x M5 socket head screws and spring
washers from the service kit and ghten to a torque seng of 6Nm. (See gure 4)
7. Reaach the 4x solenoid coils and 4x solenoid plugs. (See gure 1)
When service B is complete reset the dryer, refer to page 23.
BOTTOM MAN-
IFOLD
10. SERVICE ‘B’ INSTRUCTIONS
MODELS: NDL-060, 070, 080, 090
(Every 24,000 hrs or 4 Years)
IVK-090 & EVK-130 & CVK-130
INLET AND EXHAUST VALVE REPLACEMENT
NOTE: correct valve screw
ghtening sequence shown.
3
2
4
1
