Page 19
12. SERVICE ‘B’ INSTRUCTIONS
INLET PILOT CONTROL VALVE REPLACEMENT
CVK-130 & EVK-130 & PVK-131
MODELS: NDL-100, 110, 120, 130
(Every 24,000 hrs or 4 Years)
2. Detach solenoid plugs from
solenoid coils by removing the
2x plug screws and releasing
plugs.
(See gure 1)
1. Ensure dryer is shutdown and fully
depressurised before maintenance
work. (See page 8-9)
3. Detach inlet valve tubes 1,2,3 from block.
(See gure 2)
4. Remove Inlet valve mount bracket screws
2x (M3x 12) and detach bracket assy from
dryer.
(See gure 3)

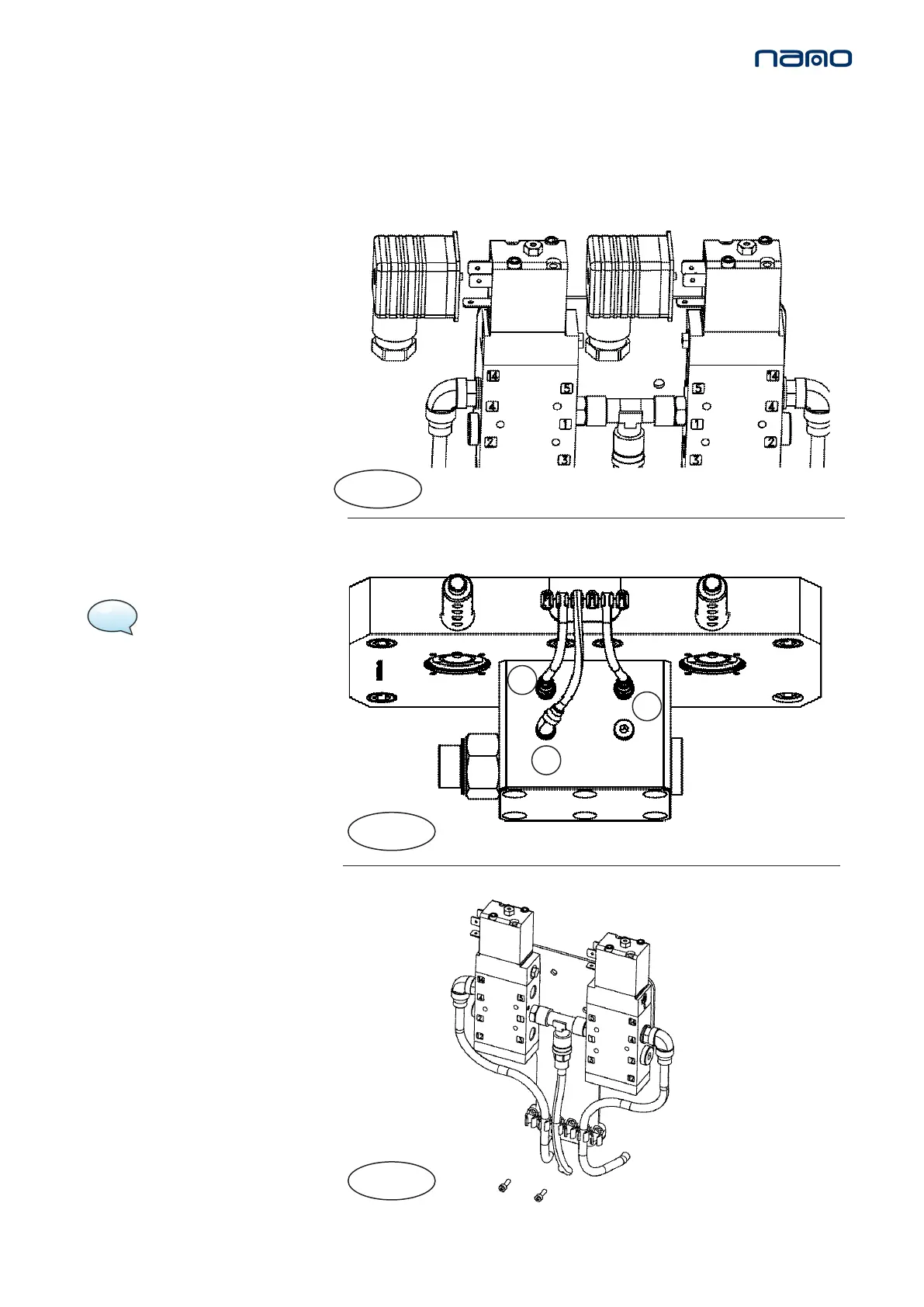

Figure 1.
Figure 2.
Figure 3.
NOTE: Label tubes when
removing manifold.
1
2
3
To Next Page
