NANO D2 Series - Service B Inlet & Exhaust Valve Replacement

Page 16
INLET AND EXHAUST VALVE REPLACEMENT

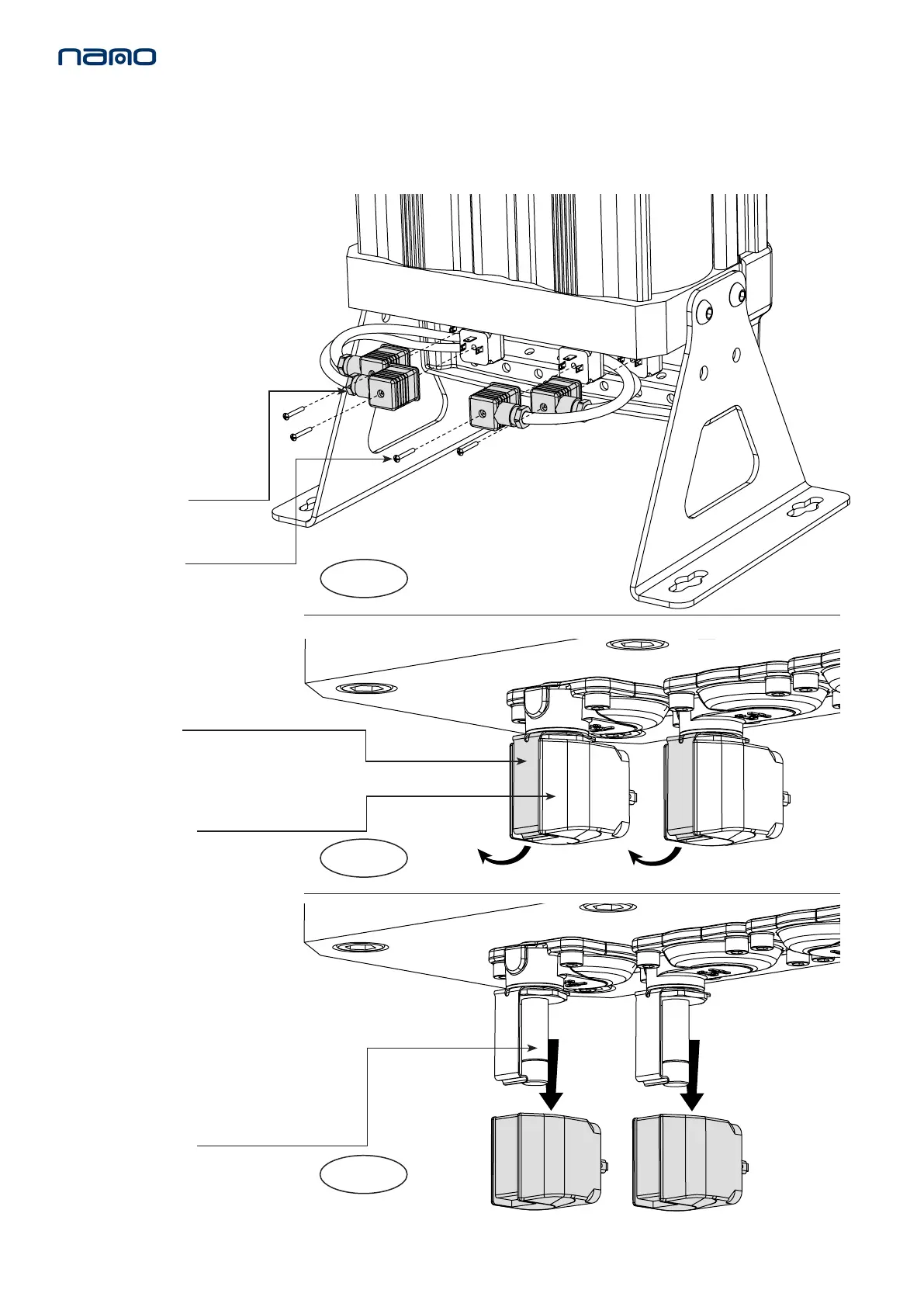

Figure 1.
2. Detach each of the solenoid plugs
from the solenoid coils by removing
the 4x plug screws and releasing
the plugs.
(See gure 1)
SOLENOID
PLUG
PLUG
SCREW
3. Remove the solenoid coils
by unclipping and sliding the
coils from the valve stems. (See
gures 2 & 3)
Figure 2.
RETAINING CLIP
SOLENOIDS
COILS
VALVE
STEM
1. Ensure the dryer is shutdown and
fully depressurised before aempng
any maintenance work. (See page 8-9)
MODELS: NDL-060, 070, 080, 090
IVK-090 & EVK-130 & CVK-130
(Every 24,000 hrs or 4 Years)
10. SERVICE ‘B’ INSTRUCTIONS
(REAR VIEW OF DRYER)
Figure 3.
