NANO D2 Series - Service A Inlet Valve Replacement

Page 12
INLET VALVE REPLACEMENT
3. Remove 6x M8 socket head cap
screws and 6x washers from inlet
block to release from dryer boom
manifold.
(See gure 2)
INLET BLOCK
1. Ensure dryer is shut down and
fully depressurised before at-
tempng any maintenance work.
(See page 8-9)
6x M8 HEAD CAP
SCREWS
2. Detach inlet valve tubes 1,2,3
from block. (See gure 1)
8. SERVICE ‘A’ INSTRUCTIONS
MODELS: NDL-100, 110, 120, 130
IVK-130
NOTE: Label tubes when
removing manifold.

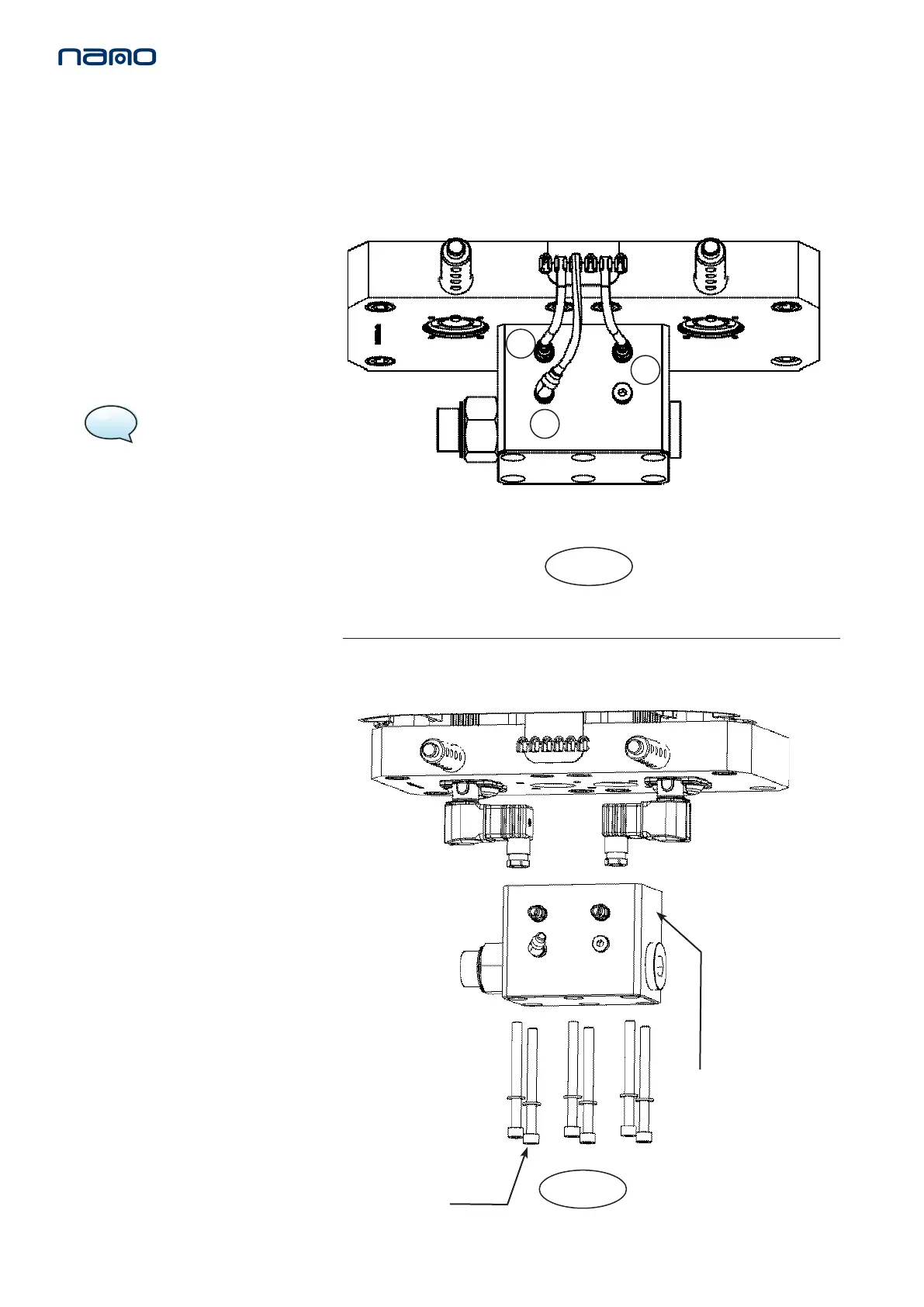

Figure 1.
Figure 2.
1.1 Remove silencer box
(See page 18:2)
1
2
3
