APPLIANCE
RECESS OR
ALCOVE
AREA
NOTE: Recesses or alcoves above the appliance can be made as deep as desired provided the minimum
clearances to combustibles are maintained.
Non-combustible material can be used, provided the minimum clearances to combustible materials are applied.
The minimum enclosure volume must be increased by no less than the volume of the recess. This adjustment
can be made by increasing any or all of the height, width and depth of the enclosure.
71.2
ENCLOSURE
AREA

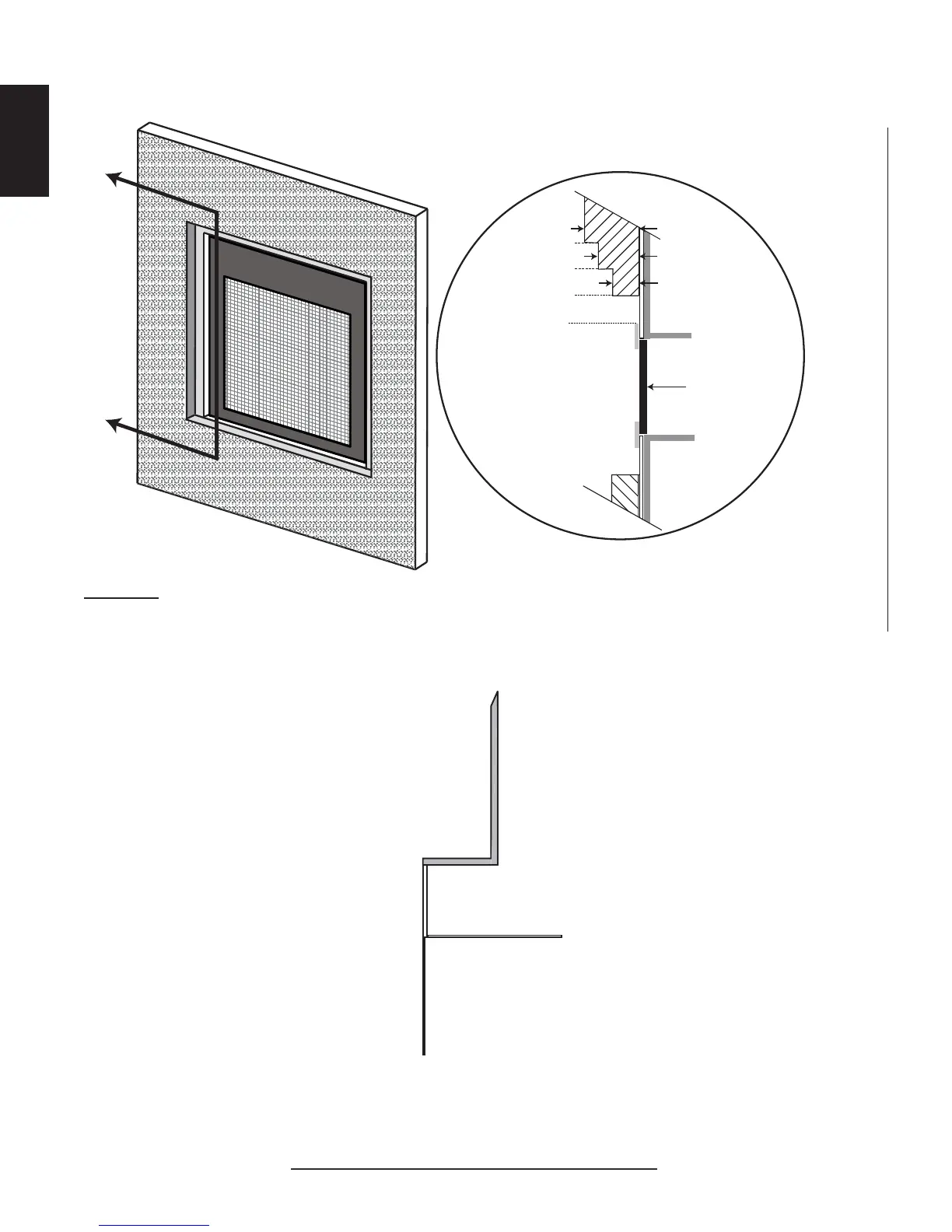

5.4 ALCOVE INSTALLATION
DOOR
2” (51mm)
SAFETY
SCREEN
TOP OF
APPLIANCE
0” (0mm)
4” (102mm)
6” (152mm)
3” (76mm)
2” (51mm)
4”
(102mm)
WARNING: 2" (51mm) clearance from the surround is required for any additional projecting out a
maximum 2" (51mm). if greater projections are desired, increase the clearance from the surround by 2"
(51mm) for every 1" (25mm) of additional projection.
