W415-1347 / A / 03.19.15
33
EN
0
$
1
7
(
/
+
(
,
*
+
7
13
246810
MANTEL DEPTH
15
17
19
21
11
E
D
C
B
A

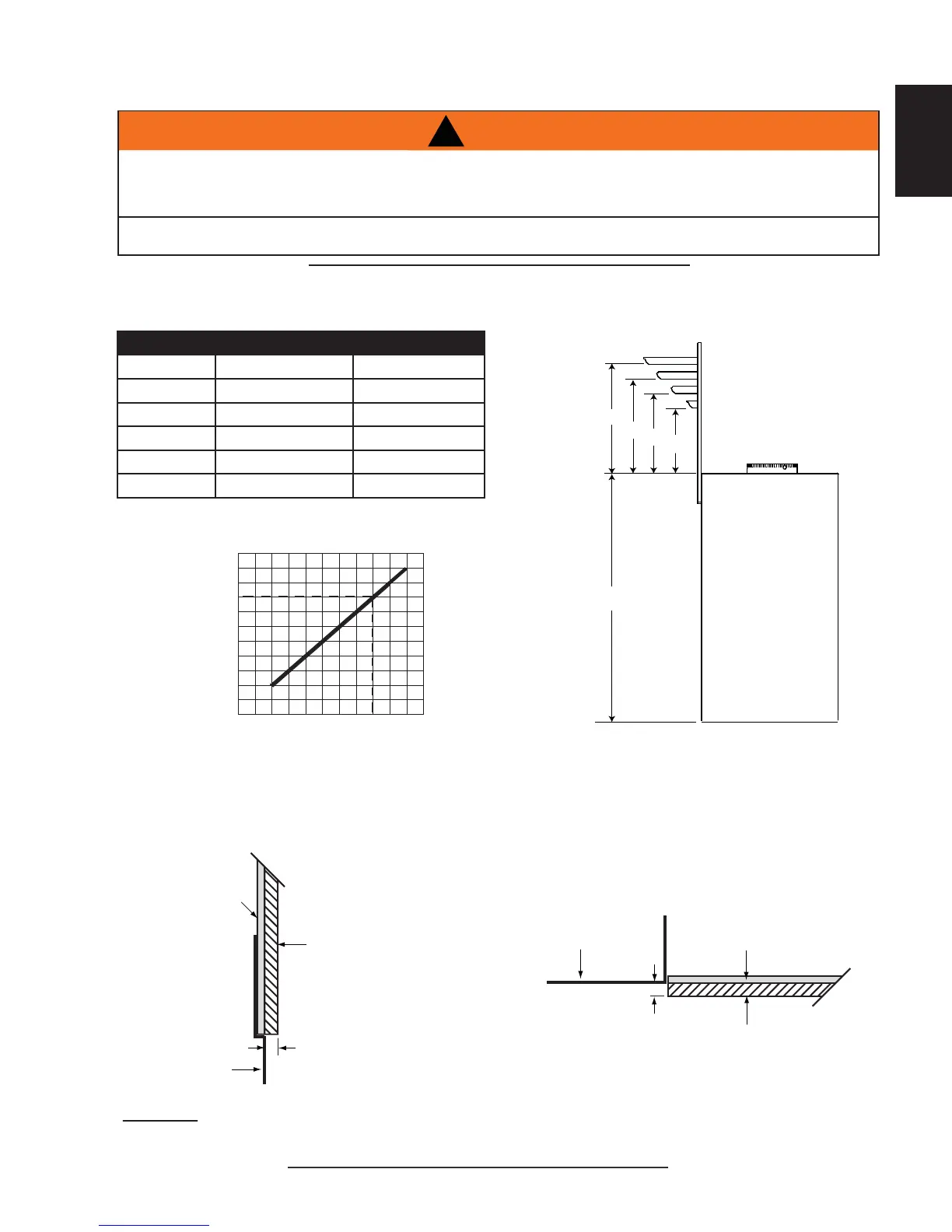

Combustible mantel clearance can vary according to the mantel depth. Use the graph to help evaluate the
clearance needed.
!
WARNING
RISK OF FIRE, MAINTAIN ALL SPECIFIED AIR SPACE CLEARANCES TO COMBUSTIBLES. FAILURE
TO COMPLY WITH THESE INSTRUCTIONS MAY CAUSE A FIRE OR CAUSE THE APPLIANCE TO
OVERHEAT. ENSURE ALL CLEARANCES (I.E. BACK, SIDE, TOP, VENT, MANTEL, FRONT, ETC.) ARE
CLEARLY MAINTAINED.
WHEN USING PAINT OR LACQUER TO FINISH THE MANTEL, THE PAINT OR LACQUER MUST BE
HEAT RESISTANT TO PREVENT DISCOLOURATION.
73.1
MANTEL DIMENSIONS
Ref Height Depth
A 38" (965mm)
B 13" (330mm) 2" (51mm)
C 15" (381mm) 4" (102mm)
D 17" (432mm) 6" (152mm)
E 19" (483mm) 8" (203mm)
5.5 MINIMUM MANTEL CLEARANCES
FRONT OF
APPLIANCE
WARNING: Non-combustible facing material must not protrude more than 3/4” (19mm) from the top,
and/or sides of the appliance. If it does, it is considered a non-combustible mantel and must meet the
non-combustible mantel clearance requirements.
71.3A
3/4” (19mm)
FRONT OF
APPLIANCE
TOP VIEWSIDE VIEW
NON-COMBUSTIBLE
FACING MATERIAL
NON-COMBUSTIBLE
FACING MATERIAL
FINISH
MATERIAL
FINISH
MATERIAL
3/4” (19mm)
5.6 NON-COMBUSTIBLE FACING MATERIAL
