Napoleon HD46NT - 18 Hd40 Valve Train Assembly

W415-1347 / A / 03.19.15
55
EN

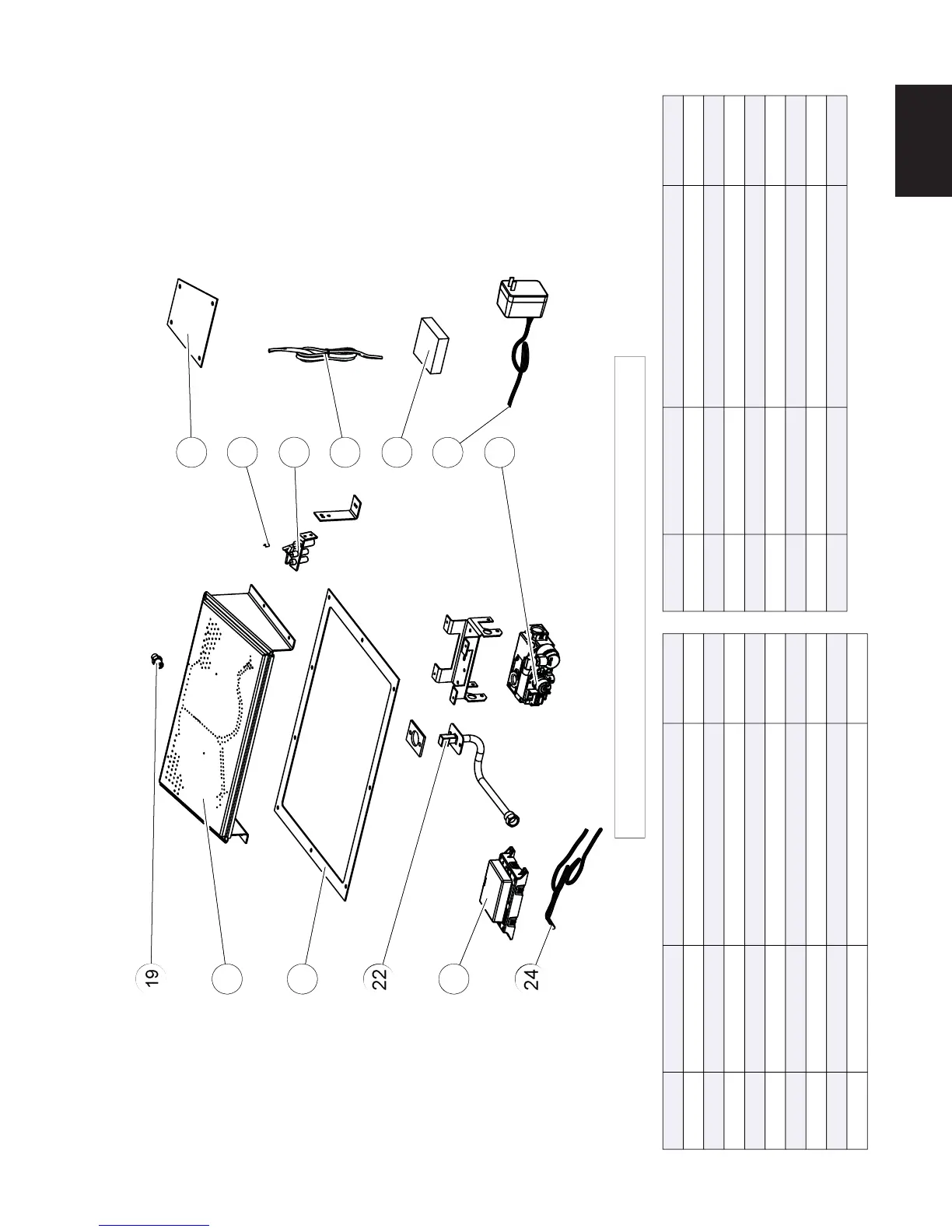

18.0 HD40 VALVE TRAIN ASSEMBLY
11 04 14
ITEMS MAY NOT APPEAR EXACTLY AS ILLUSTRATED
REF NO. PART NUMBER DESCRIPTION STOCKED 19 W456-0037 BURNER ORIFICE #38 (NG) YES 19 W456-0052 BURNER ORIFICE #53 (LP) YES 20 W010-2312 BURNER ASSEMBLY YES 21 W290-0139 VALVE TRAIN GASKET YES 22 W432-0103 FLEX MANIFOLD YES 23 W190-0022 CONTROL MODULE YES 24 W750-0250 WIRE HARNESS YES 25 W290-0140 ACCESS GASKET YES 26 W455-0049 PILOT ORIFICE (NG) YES
REF NO. PART NUMBER DESCRIPTION STOCKED 26 W455-0071 PILOT ORIFICE (LP) YES 27 W100-0069 PILOT ASSEMBLY (NG) YES 27 W100-0093 PILOT ASSEMBLY (LP) YES 28 W750-0193 ON / OFF WIRING HARNESS 29 W350-0342 BATTERY HOUSING YES 30 W707-0002 TRANSFORMER (3V) YES 31 W725-0032 VALVE (NG) 31 W725-0049 VALVE (LP)
28
22
25 31
24 20
19
27 26 29
23 21
30 28
22
25 31
24 20
19
27 26 29
23 21
30
