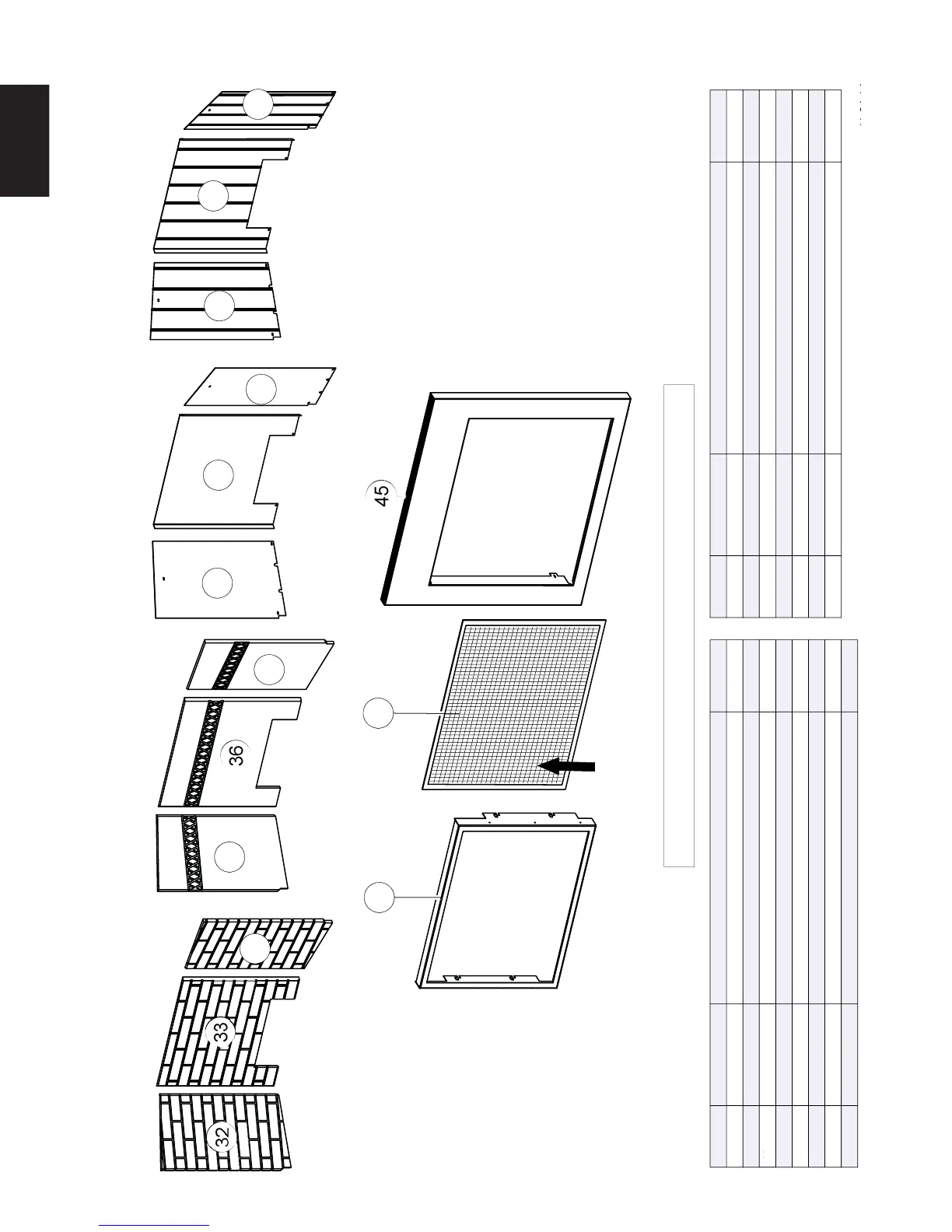

19.0 HD40 ACCESSORIES
45
42
44
1
32
35
34
36
37
38
39
40
41
43
45
42
44
1
32
35
34
36
37
38
39
40
41
43
11 04 14
GD842-1KT GD845-1KT PRPHR40
HDF40
PRPH40
ITEMS MAY NOT APPEAR EXACTLY AS ILLUSTRATED
SAFETY
SCREEN
REF NO. PART NUMBER DESCRIPTION STOCKED 1 W565-0176 SAFETY SCREEN (HDF40) 32 W475-0703 LEFT SIDE BRICK PANEL (GD842-1KT) 33 W475-0690 REAR BRICK PANEL (GD842-1KT) 34 W475-0692 RIGHT SIDE BRICK PANEL (GD842-1KT) 35 W475-0697 LEFT SIDE MAYAN BRICK PANEL (GD845-1KT) 36 W475-0694 REAR MAYAN BRICK PANEL (GD845-1KT) 37 W475-0696 RIGHT SIDE MAYAN BRICK PANEL (GD845-1KT) 38 W090-0161 LEFT SIDE PORCELAIN PANEL (PRPH40)
REF NO. PART NUMBER DESCRIPTION STOCKED 39 W090-0164 REAR PORCELAIN PANEL (PRPH40) 40 W090-0162 RIGHT SIDE PORCELAIN PANEL (PRPH40) 41 W090-0173 LEFT SIDE PORCELAIN PANEL (PRPHR40) 42 W090-0176 REAR PORCELAIN PANEL (PRPHR40) 43 W090-0174 RIGHT SIDE PORCELAIN PANEL (PRPHR40) 44 W010-3372 FRAME ASSEMBLY (HDF40) 45 W010-3373 TRIM ASSEMBLY (HDF40)
33
W47
5
-
0690
R
EAR BRI
C
K PANEL
(G
D842-1KT
)
