C. HD35/40: Place the log charcoal strip (W135-0408) on top of
the front grate by engaging the two cut out notches onto the two
middle posts of the front grate.
HD46: Place the log charcoal strip (W135-0408) on top of the sup-
port ember strip.
B. Place the middle log (W135-0409) on top of the burner pan. Use
the two bottom holes of the log to locate it onto the two pins on the
burner pan.
A. Place the rear log (W135-0339) on rear bracket, ensure the log is
seated properly on the rear bracket and located on the center pin.
LOG IDENTIFICATION CHART
LOGS HD35 HD40 HD46
Rear Log W135-0339 W135-0339 W135-0339
Middle Log W135-0409 W135-0409 W135-0409
Left Log W135-0406 W135-0406 W135-0406
Right Log W135-0407 W135-0407 W135-0407
Charcoal Strip Log W135-0408 W135-0408 W135-0408
Base Left Log N/A N/A W135-0392
Base Right Log N/A N/A W135-0393

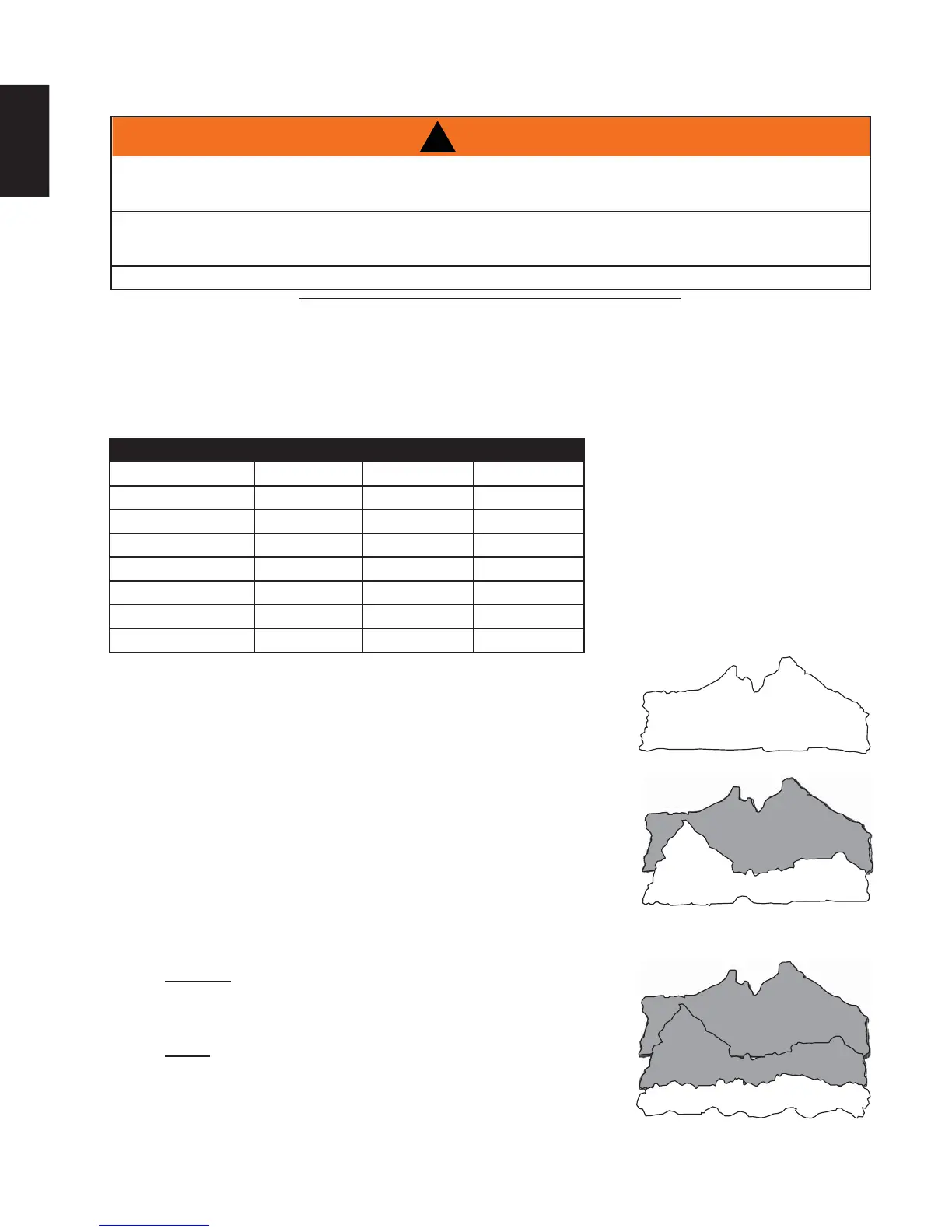

6.4 LOG PLACEMENT
The individual logs can be easily identifi ed by the numbers cast on the underside of each log.
Phazer
TM
logs and glowing embers exclusive to Wolf Steel Ltd., provide a unique and realistic glowing effect
that is different in every installation. Take the time to carefully position the glowing embers for a maximum
glowing effect. During the initial use of the appliance, log colours may vary. During the initial use of the appli-
ance the colours will become more uniform as colour pigments burn in during the heat activated curing pro-
cess.
!
WARNING
FAILURE TO POSITION THE LOGS IN ACCORDANCE WITH THESE DIAGRAMS OR FAILURE TO USE
ONLY LOGS SPECIFICALLY APPROVED WITH THIS APPLIANCE MAY RESULT IN PROPERTY
DAMAGE OR PERSONAL INJURY.
LOGS MUST BE PLACED IN THEIR EXACT LOCATION IN THE APPLIANCE. DO NOT MODIFY THE
PROPER LOG POSITIONS, SINCE APPLIANCE MAY NOT FUNCTION PROPERLY AND DELAYED
IGNITION MAY OCCUR.
THE LOGS ARE FRAGILE AND SHOULD BE HANDLED WITH CARE.
