Napoleon HD46NT - 14 Hd35 Valve Train Assembly

W415-1347 / A / 03.19.15
51
EN

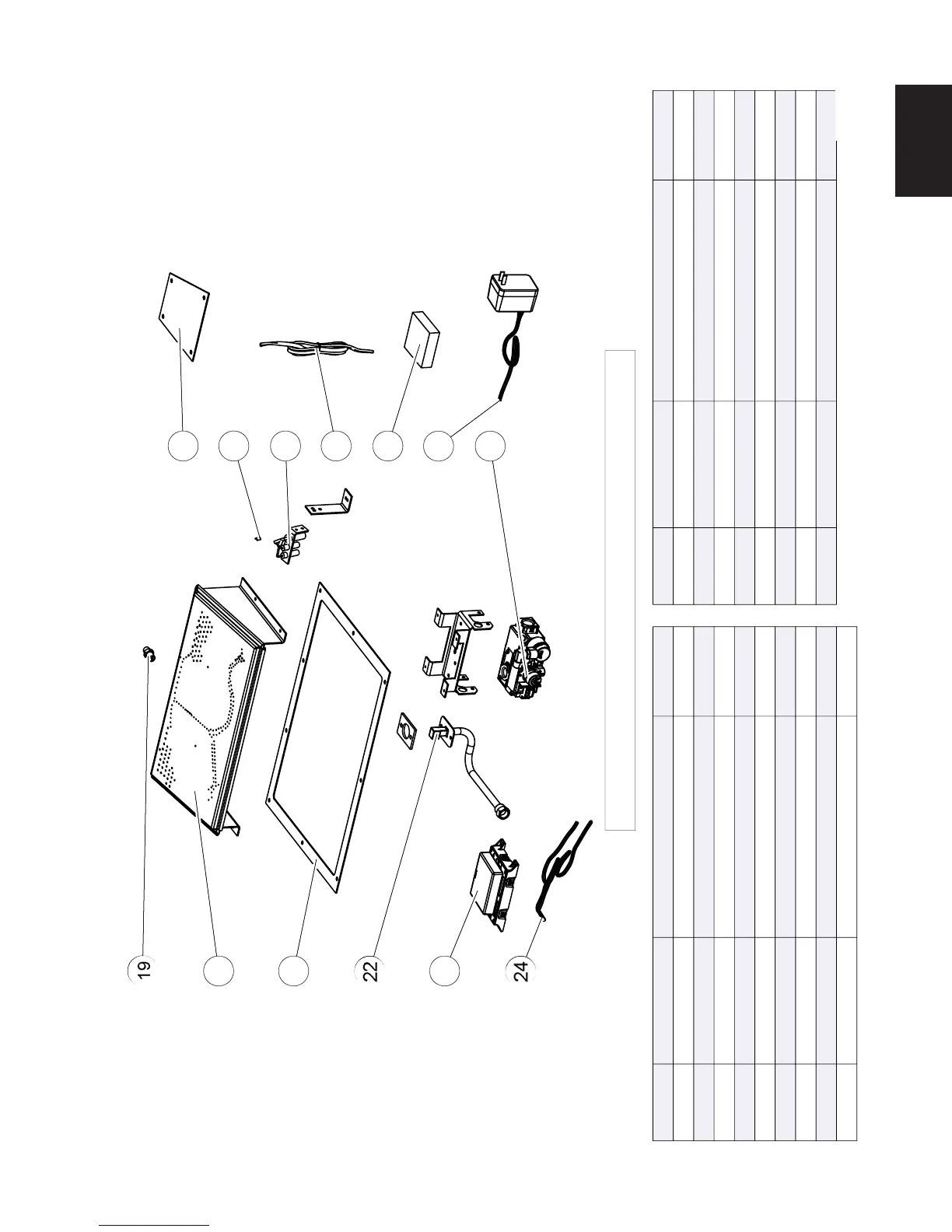

14.0 HD35 VALVE TRAIN ASSEMBLY
28
22
25 31
24 20
19
27 26 29
23 21
30 28
22
25 31
24 20
19
27 26 29
23 21
30
11.04.14
ITEMS MAY NOT APPEAR EXACTLY AS ILLUSTRATED
REF NO. PART NUMBER DESCRIPTION STOCKED 19 W456-0042 BURNER ORIFICE #42 (NG) YES 19 W456-0054 BURNER ORIFICE #54 (LP) YES 20 W010-2312 BURNER ASSEMBLY YES 21 W290-0139 VALVE TRAIN GASKET YES 22 W432-0103 FLEX MANIFOLD YES 23 W190-0022 CONTROL MODULE YES 24 W750-0250 WIRE HARNESS YES 25 W290-0140 ACCESS GASKET YES 26 W455-0049 PILOT ORIFICE (NG) YES
REF NO. PART NUMBER DESCRIPTION STOCKED 26 W455-0071 PILOT ORIFICE (LP) YES 27 W100-0069 PILOT ASSEMBLY (NG) YES 27 W100-0093 PILOT ASSEMBLY (LP) YES 28 W750-0193 ON / OFF WIRING HARNESS 29 W350-0342 BATTERY HOUSING YES 30 W707-0002 TRANSFORMER (3V) YES 31 W725-0032 VALVE (NG) 31 W725-0049 VALVE (LP)
