Remove the backing of the logo supplied and place on the glass viewing door or bottom access panel as
illustrated.
32.1
Randomly place the charcoal embers along the
f
ront and sides o
f
the log support tray in a realistic manner.
Fine dust found in the bottom of the bag should not be used.
NOTE: Charcoal embers are not to be placed on the burner.
33.1
Sprinkle vermiculite around the charcoal embers.
NOTE: Vermiculite is not to be placed on the burner.
34.1
Place the lumps in front of the logs in a realistic manner taking care not to block any of the burner ports.
!
WARNING
CHARCOAL EMBERS, VERMICULITE AND CHARCOAL LUMPS ARE NOT TO BE PLACED ON THE
BURNER.
LOGO
1/2”
13mm
1/2”
13mm
Tear the embers into pieces and place on top of the front burner area be-
tween the middle log and charcoal strip. Care should be taken to shred the
embers into thin, small irregular pieces as only the exposed edges of the
fi bre hairs will glow. The ember material will only glow when exposed
to direct fl ame; however, care should be taken to not block the burner
ports.
Blocked burner ports can cause an incorrect fl ame pattern, carbon deposits
and delayed ignition. PHAZER
TM
logs glow when exposed to direct fl ame.
Use only certifi ed "glowing embers" and PHAZER
TM
logs available from
your Authorized dealer.

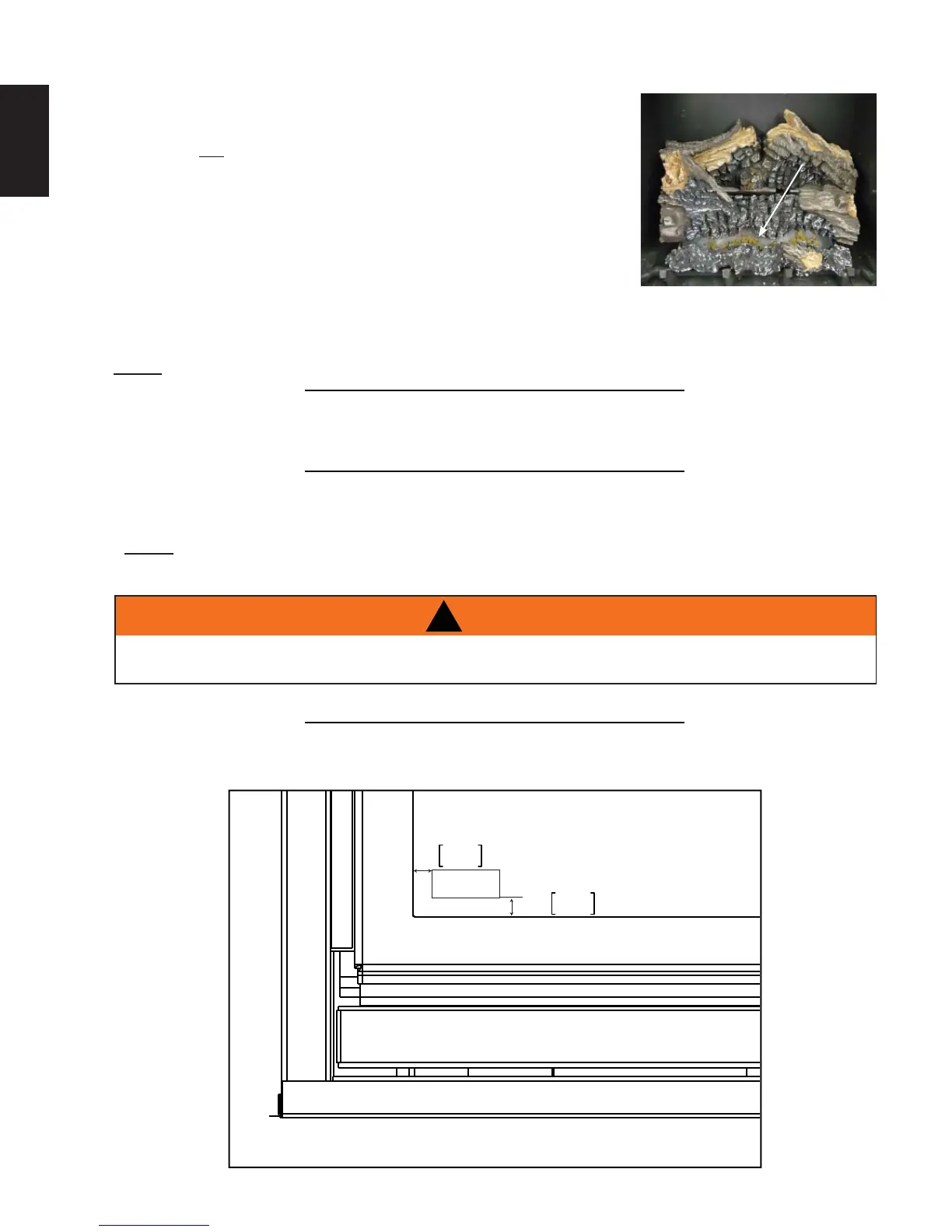

6.5 GLOWING EMBER PLACEMENT
#4 GLOWING EMBERS
#4 GLOWING EMBERS
6.6 CHARCOAL EMBERS
6.7 OPTIONAL VERMICULITE
6.8 OPTIONAL CHARCOAL LUMPS (STANDARD ON HD46)
6.9 LOGO PLACEMENT
6.10 LAVA ROCK
Lava rock should be spread out evenly around the burner on the fi rebox base.
NOTE: Lava rock is not to be placed on the burner.
