Napoleon HD46NT - Page 37

W415-1347 / A / 03.19.15
37
EN

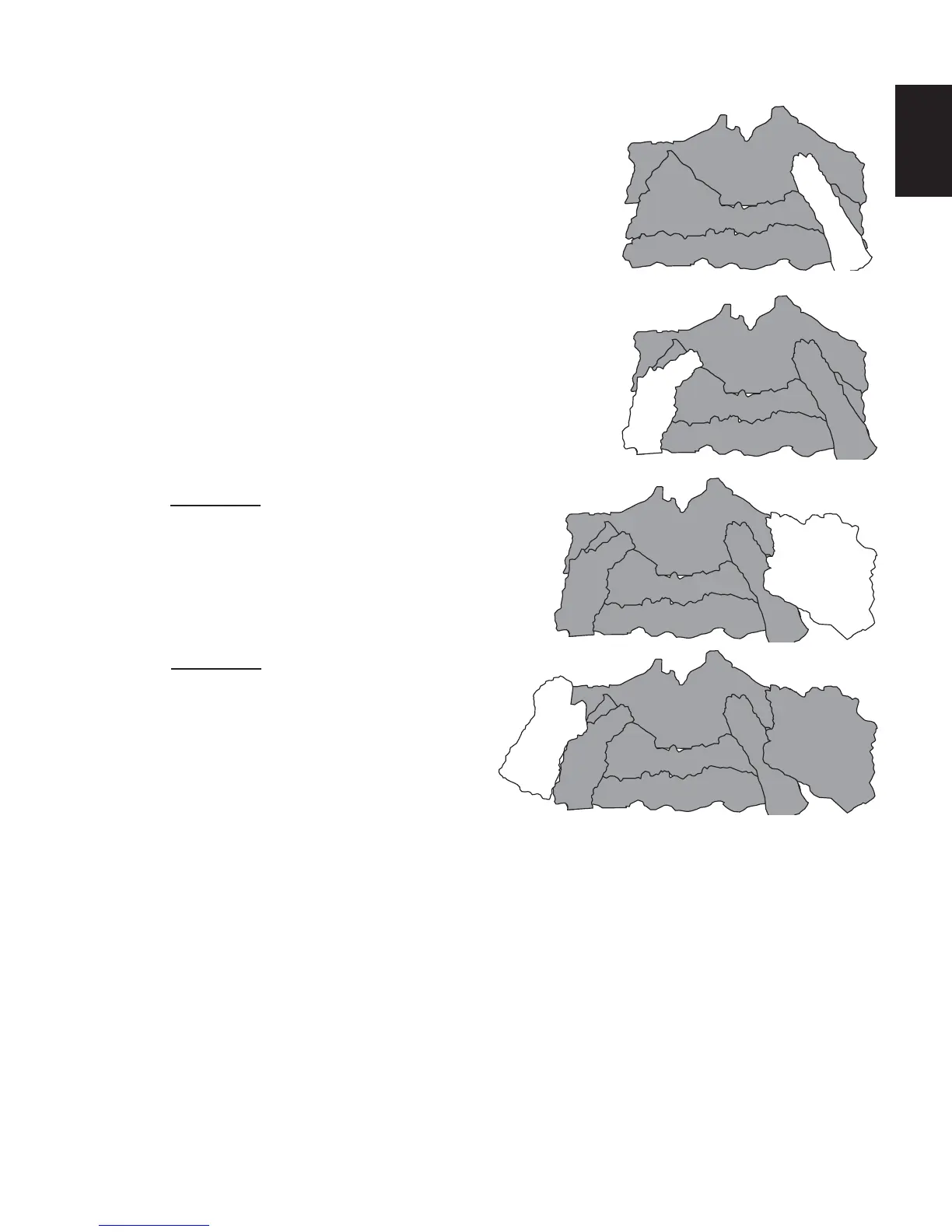

G. HD46 ONLY: Place the base left log (W135-
0392) using the bottom hole of the log to
locate it onto the base support bracket pin on
the left side.
F. HD46 ONLY: Place the base right log (W135-0393)
using the bottom rectangular hole to engage with
the two pins on the right as illustrated.
D. Place the right log (W135-0407) on top of the middle log by locat-
ing the bottom rectangular holes of the right log onto the knob of
the middle log. The end of the log with a cut out notch will seat
against the back of the right end front grate post.
E. Place the left log (W135-0406) using the bottom rectangular hole to
position onto the knob of the middle log located on the left. The notch
on the bottom end of the log is to seat onto the left end front grate
post.
