Napoleon LD485 - Key Assembly Stages

16
www.napoleongrills.com


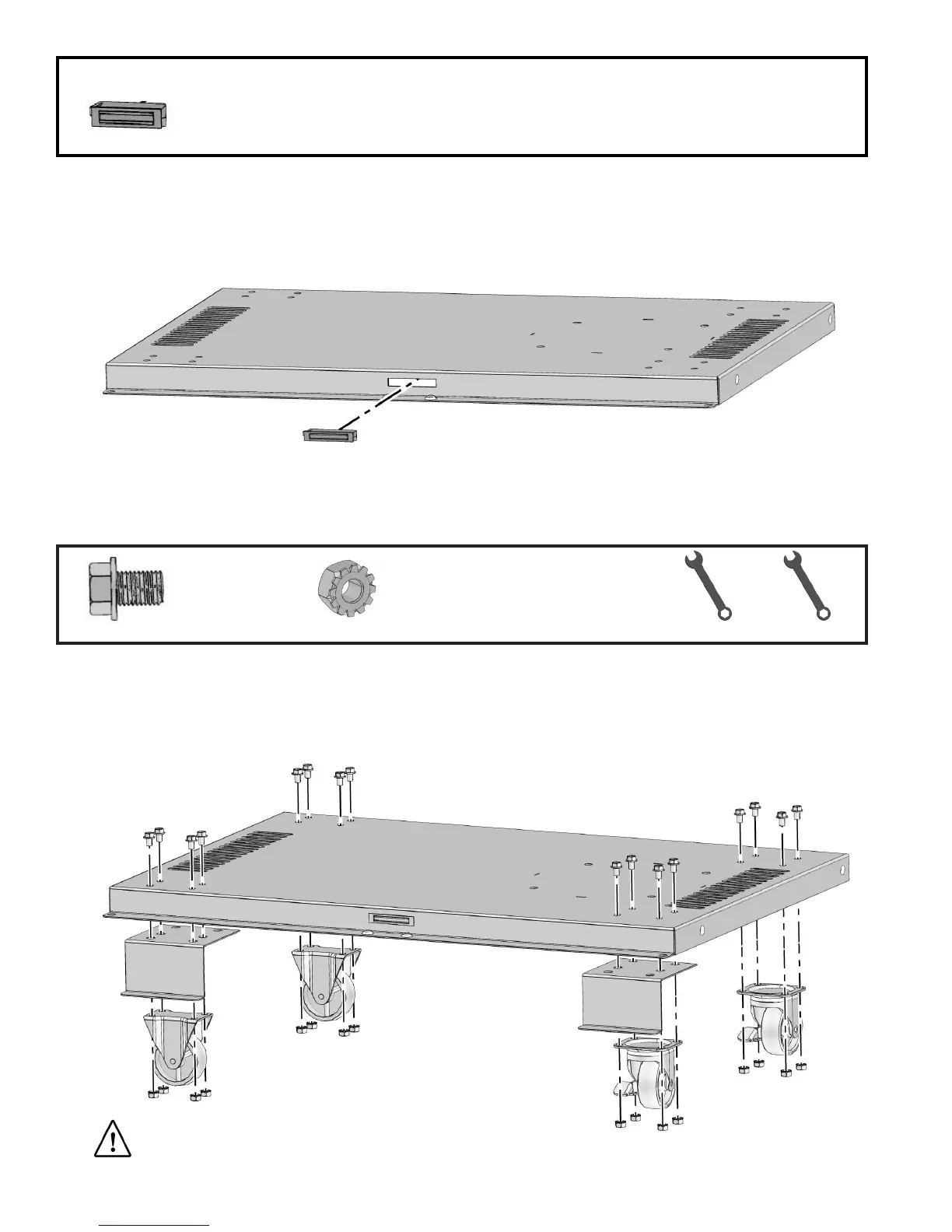

Aach (4) casters, using (4) ¼ -20 x 3/8” screws and (4) ¼ -20 lock nuts for each caster. Aach brackets under
front casters as illustrated. Tighten securely.

Snap magnet into slot in front of boom shelf.
1 x N430-0002
16 x N570-0073 (1/4-20 X 3/8”)
3/8”(10mm)
7/16”(11mm)
16 x N450-0027 (1/4-20)

