Napoleon LD485 User Manual

20
www.napoleongrills.com
4 x N570-0080 (#14 x 1/2”)
3/8”(10mm)
4 x N570-0080 (#14 x 1/2”) 1 X N430-0002


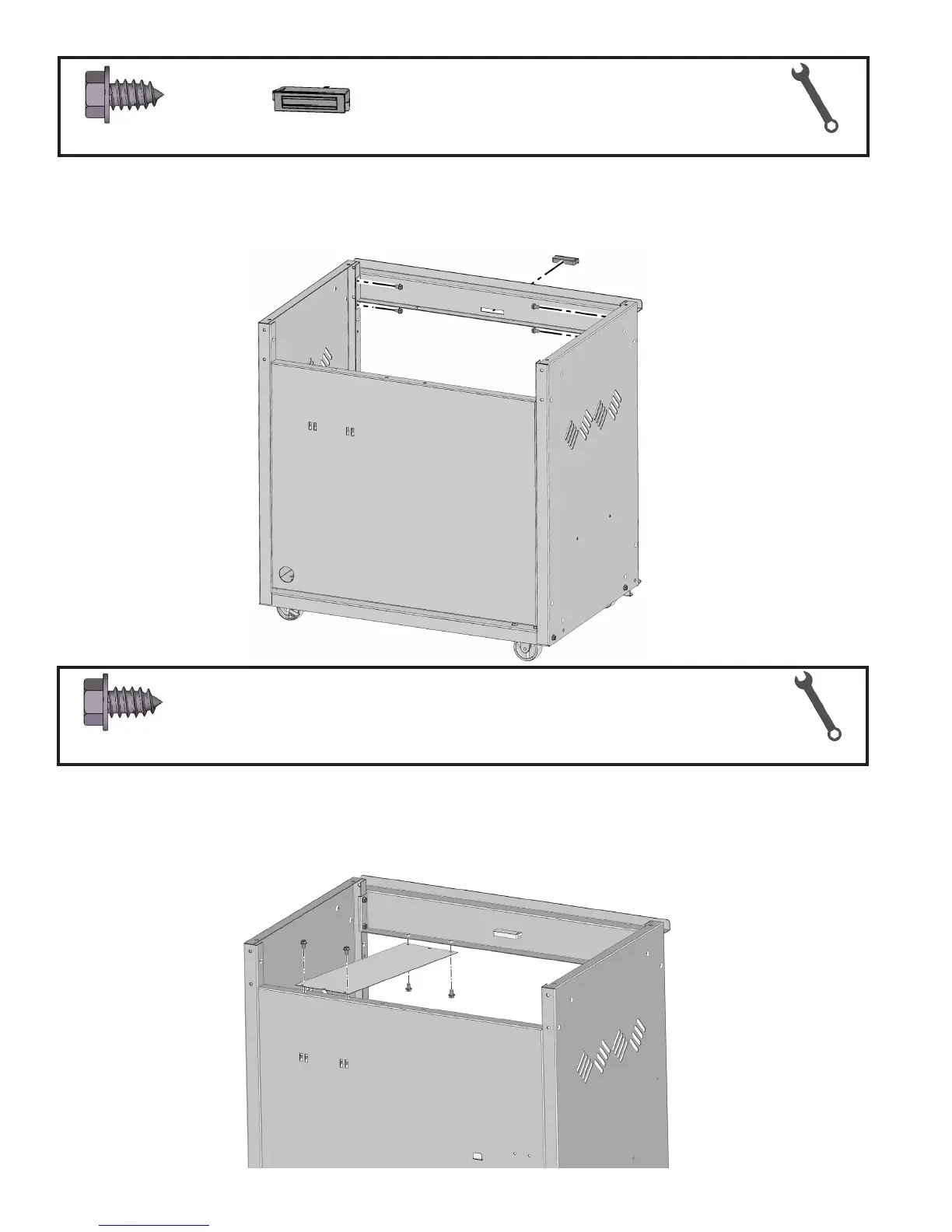

Fasten top rail assembly to the front of side panels using (4) #14 x 1/2” screws. For ease of installaon start all screws
be fore ghtening completely. Snap magnet into place as shown.
3/8”(10mm)

Aach heat shield using (4) #14 x 1/2” screws. Aach one end under lip of back panel and other end to underside of front
cabinet support.

Napoleon LD485 Specifications

General

Brand	Napoleon
Model	LD485
Category	Grill
Language	English
