27
www.napoleongrills.com
2 x N160-0022 (pivot pin clip)
2 x N105-0011 (door bushing)
2
3

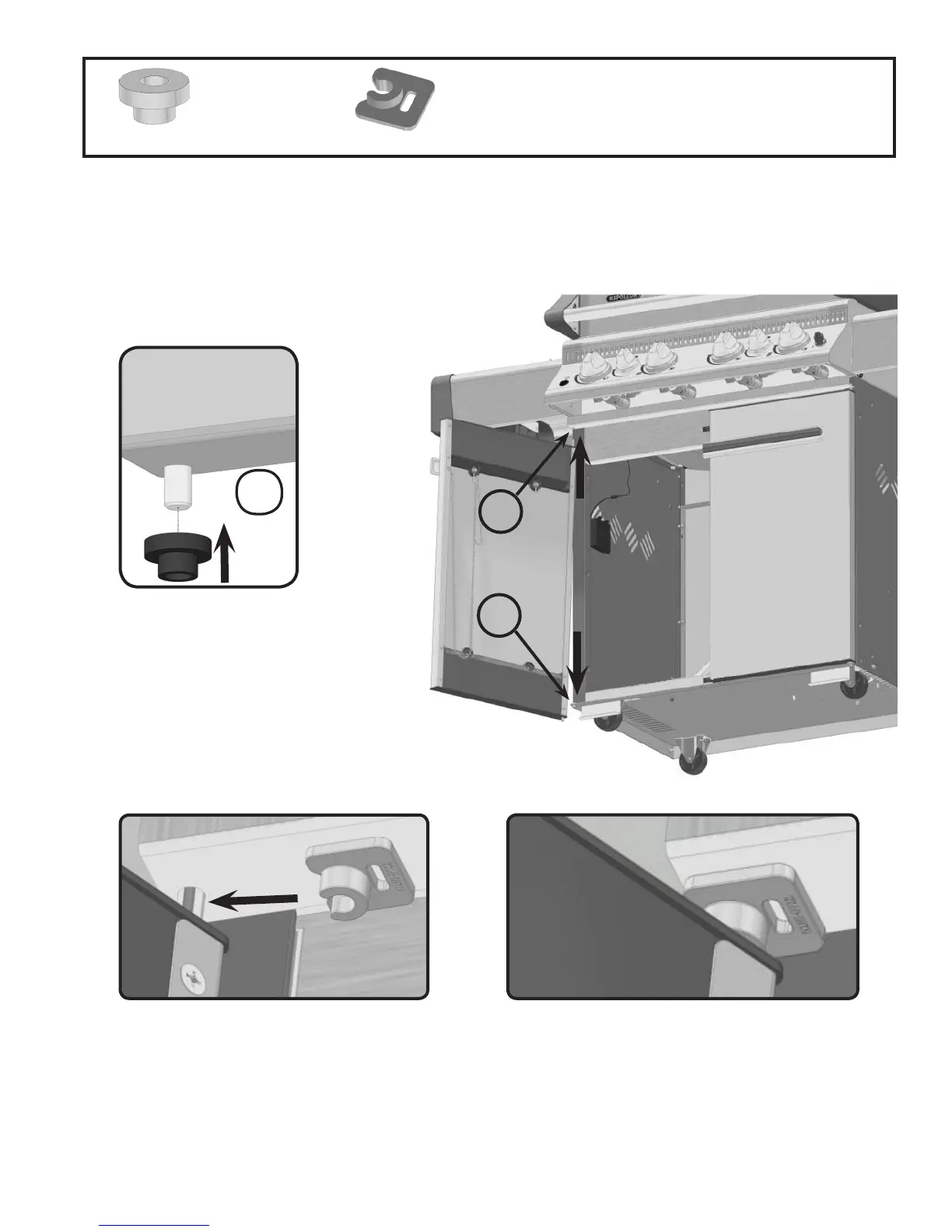

Slide the bushing over the pivot pin on the boom of the door. Direct the top pivot pin into the hole in the underside of
the front cabinet support and then lower the door ng bushing into the hole in the boom shelf. Once installed, snap
the top pivot pin clip over the top pivot pin as illustrated.
1
