6 x N570-0080 (#14 x 1/2”)
3/8”(10mm)


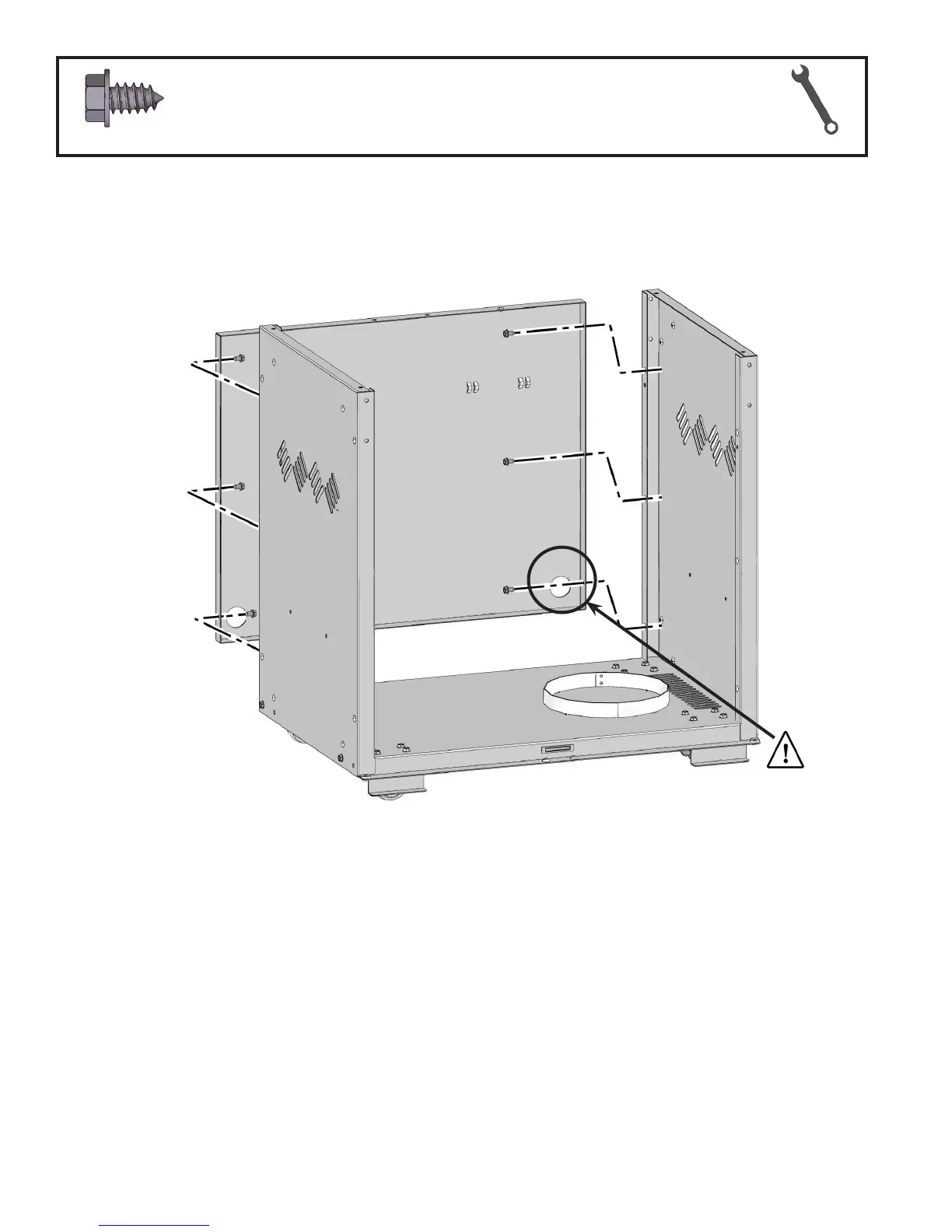

Fit rear cart panel between the two end panels; ensure large hole in panel is to the boom right corner as illustrated.
Fasten using (6) #14 x 1/2” screws, three on each side.
