1-6 General Information
1.9 Rear Panel

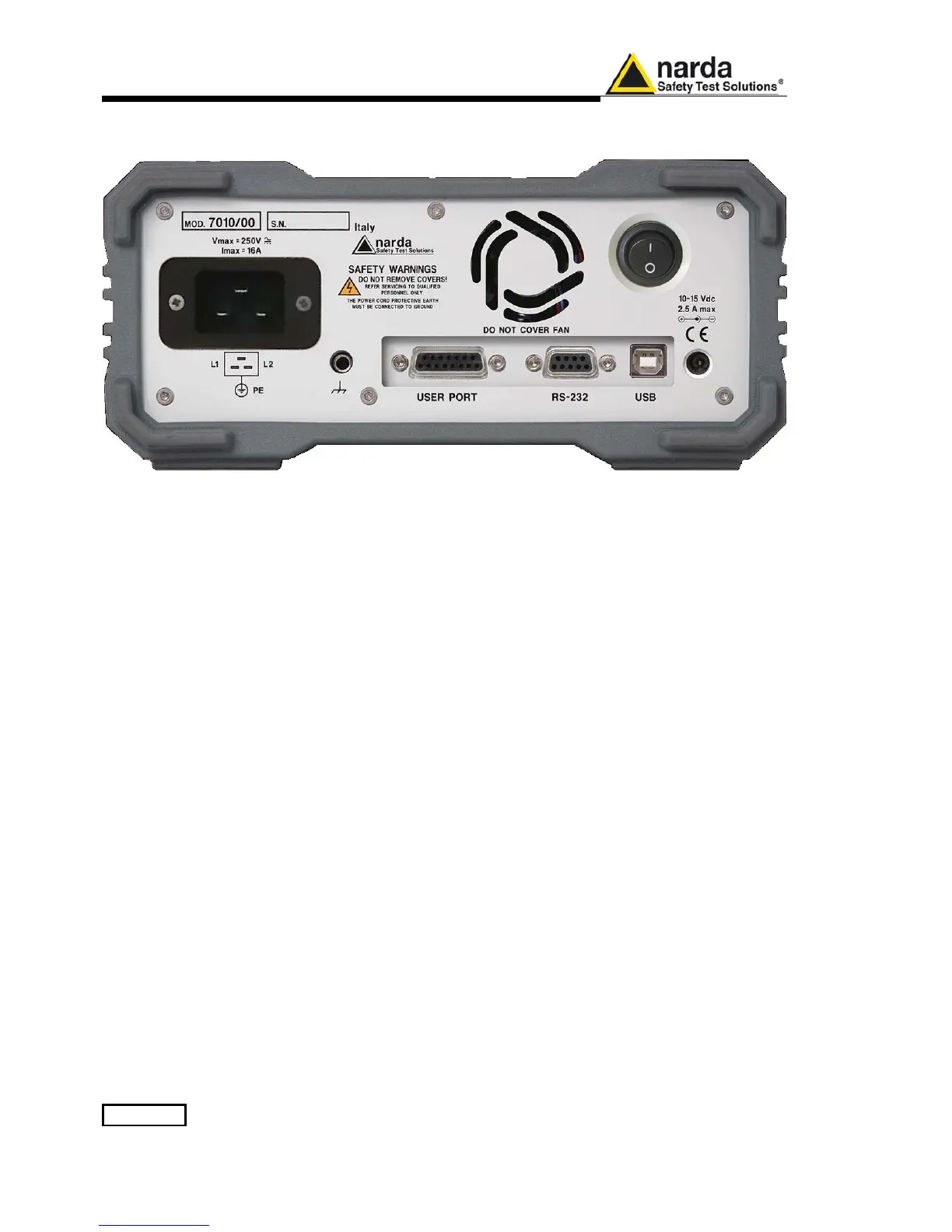

Fig. 1-2 7010 Option 00
Rear Panel
Legend from left to right:
- Product Label and Serial Number
- Mains socket to connect the EUT to the mains through the internal LISN.
- Earth ground connector
- USER PORT User I/O Port
- Fan Cooling Fan controlled by firmware
- RS232 9 pin, DB9 connector
- On-Off switch Power switch
- USB Fully functional USB 2.0 Port
- Power Supply Power Supply Input to power the apparatus.
