NARDA PMM 7010/00 - PMM 9010-RMA Inside View

PMM 9010-RMA Rack Mount Adapter 6-3
6.6 PMM 9010-RMA Inside view

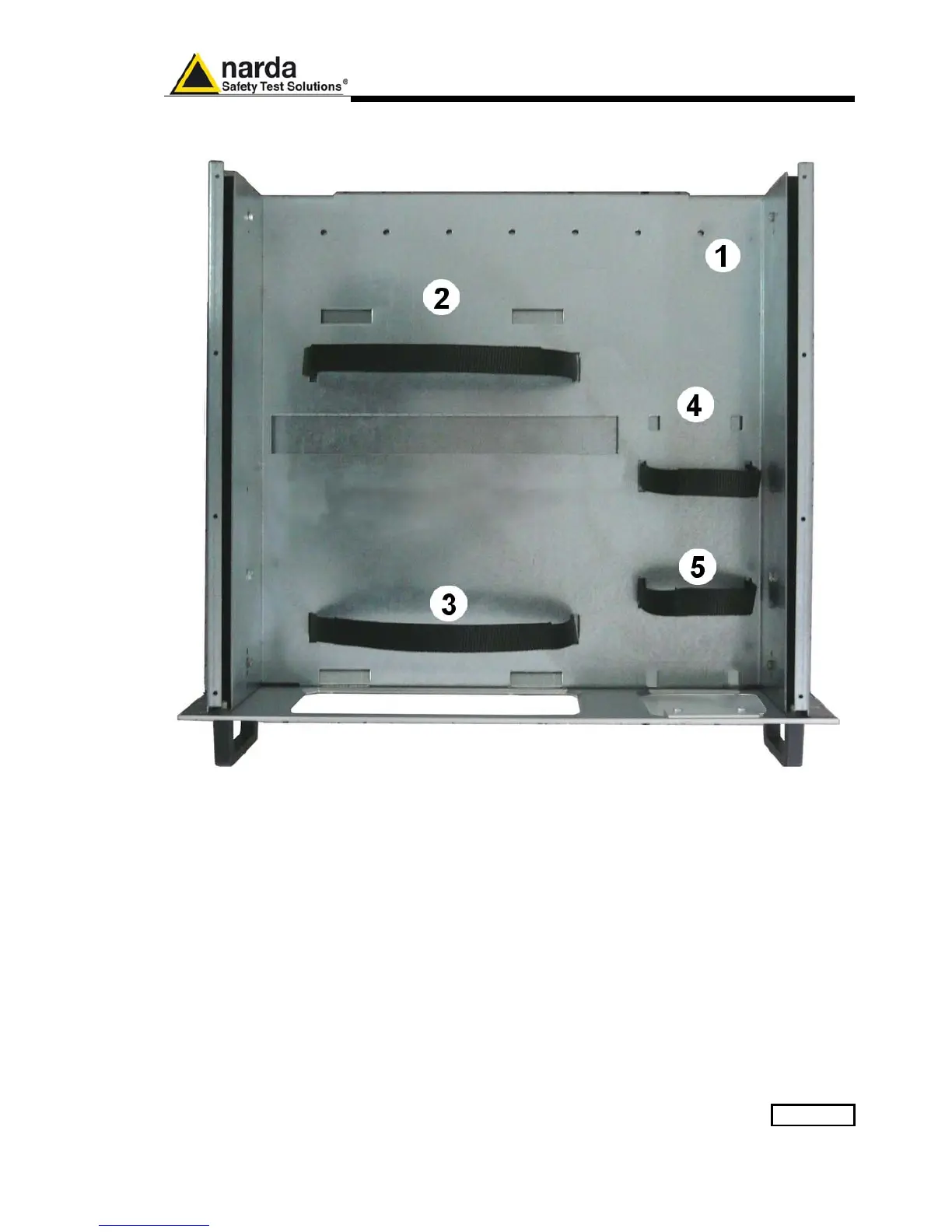

Fig. 6-2 Inside view
Legend::
- 1 – Round holes of service
- 2 – Rectangular holes used to put 9010, 9010/03P/30P/60P or 7010 Instrument;
- 3 – 9010, 9010/03P/30P/60P or 7010 straps;
- 4 – Rectangular holes for future implementation;
- 5 – Straps for future implementation.
