National Instruments 8353 User Manual

Appendix B Hardware Configuration
© National Instruments Corporation B-23 NI 8352/8353 User Manual
4. Slide a hard disk drive into the SCA drive tray. Secure the drive
to the tray with three screws on each side of the tray, as shown in
Figure B-27.

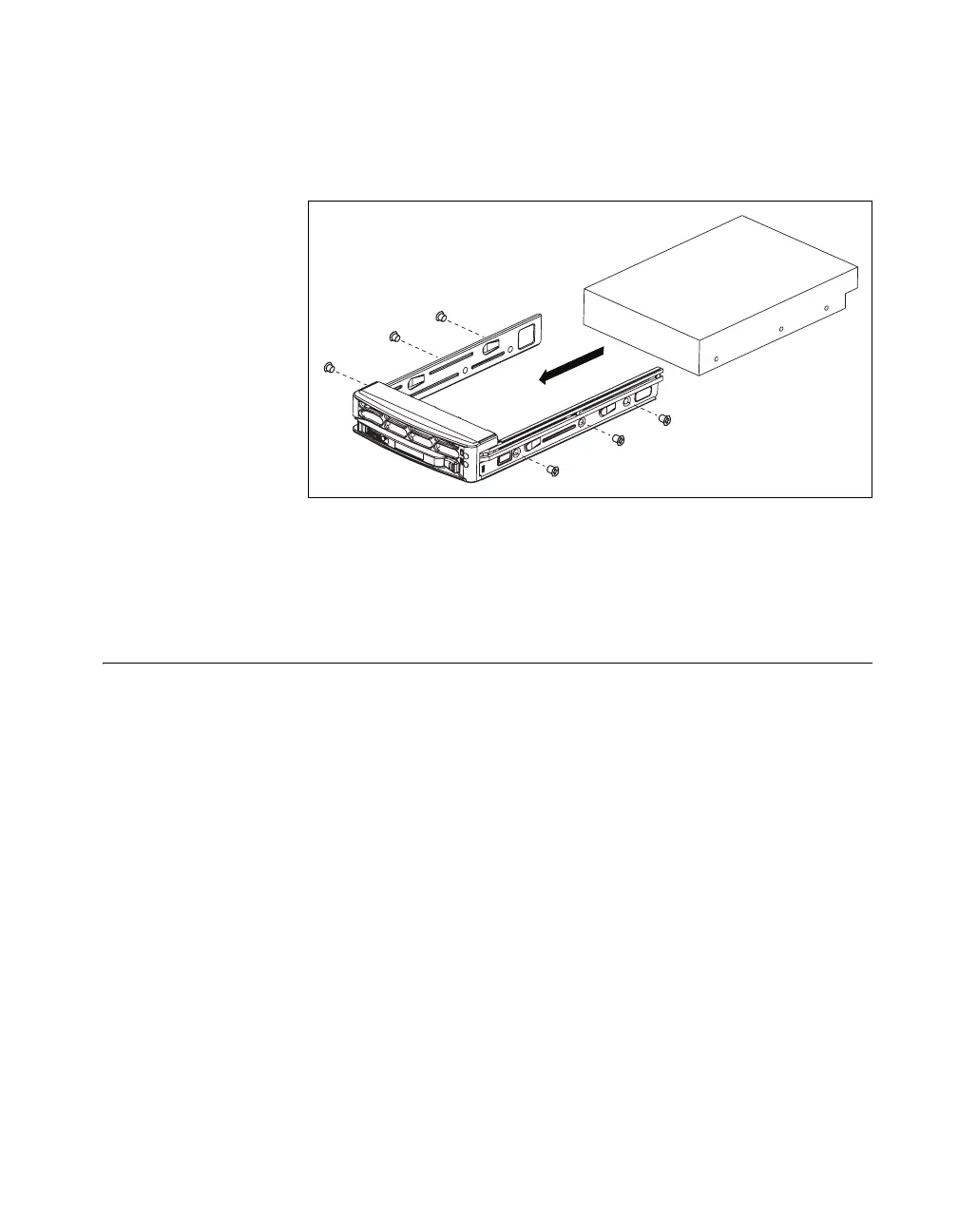

Figure B-27. Sliding Hard Disk Drive into SCA Drive Tray
5. Once the hard disk drive is securely installed in the SCA tray, you can
reinstall the SCA drive tray in the chassis.
Installing a PCI Express Expansion Card
Follow these steps to install a PCI Express expansion card:
1. Locate the riser card bracket on the NI 8352/8353 chassis.
2. Lift the bracket from the chassis.
3. Unscrew the cover plates on the bracket and set them aside for
later use.
4. Insert the PCI Express expansion card into the PCI Express slot on the
riser card bracket.
5. Screw the expansion card firmly to the riser card bracket.
6. Align the riser card bracket with the PCI Express slot on the chassis.
Carefully push down the bracket with even force on both sides until it
is firmly seated in the slot.
