National Instruments DAQ Series User Manual

Chapter 4 Theory of Operation
© National Instruments Corporation 4-9 DAQCard-700 User Manual
Timing I/O Circuitry
The DAQCard-700 uses an MSM82C54 counter/timer integrated circuit
for DAQ timing and general-purpose TIO functions. Three counters of
the MSM82C54 are available for general use, but Counter 0 is also used
internally for DAQ timing. Figure 4-5 shows a block diagram of both
groups of TIO circuitry.

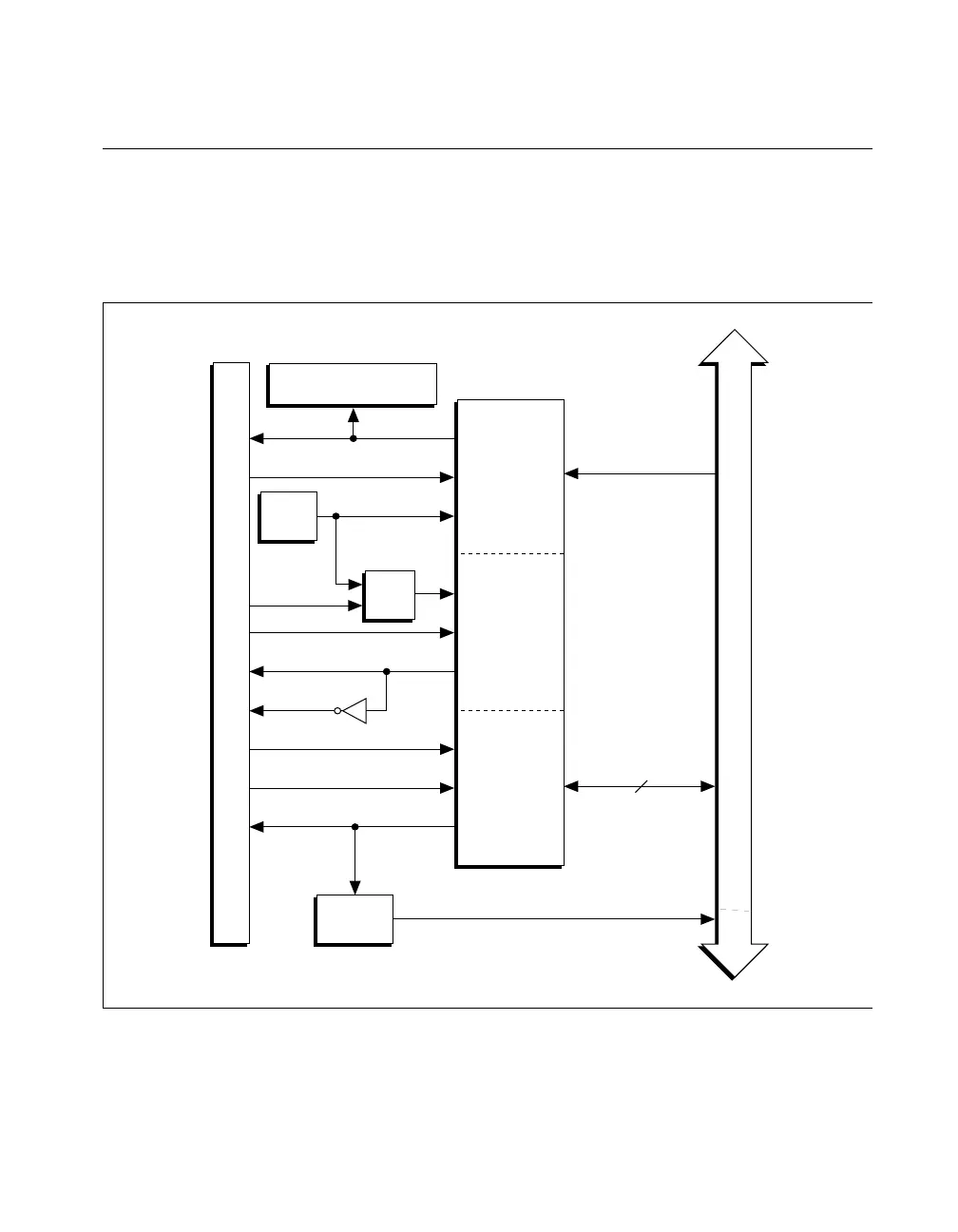

Figure 4-5. Timing I/O Circuitry Block Diagram
PCMCIA I/O Channel
I/O Connector
OUT0
GATE0
CLK0
CLK1
GATE1
OUT1
CLK2
GATE2
OUT2
CTR RD/WR
Input
Mux
1-MHz
Clock
A/D Conversion Logic
Interrupt
Interface
MSM82C54 Counter/Timer
8
Data
CLK1
OUT1
OUT1*
CLK2
GATE2
OUT2
OUT0
GATE0
