Getting Started with NI 7340/7350 Controllers and AKD Drives | © National Instruments | 21

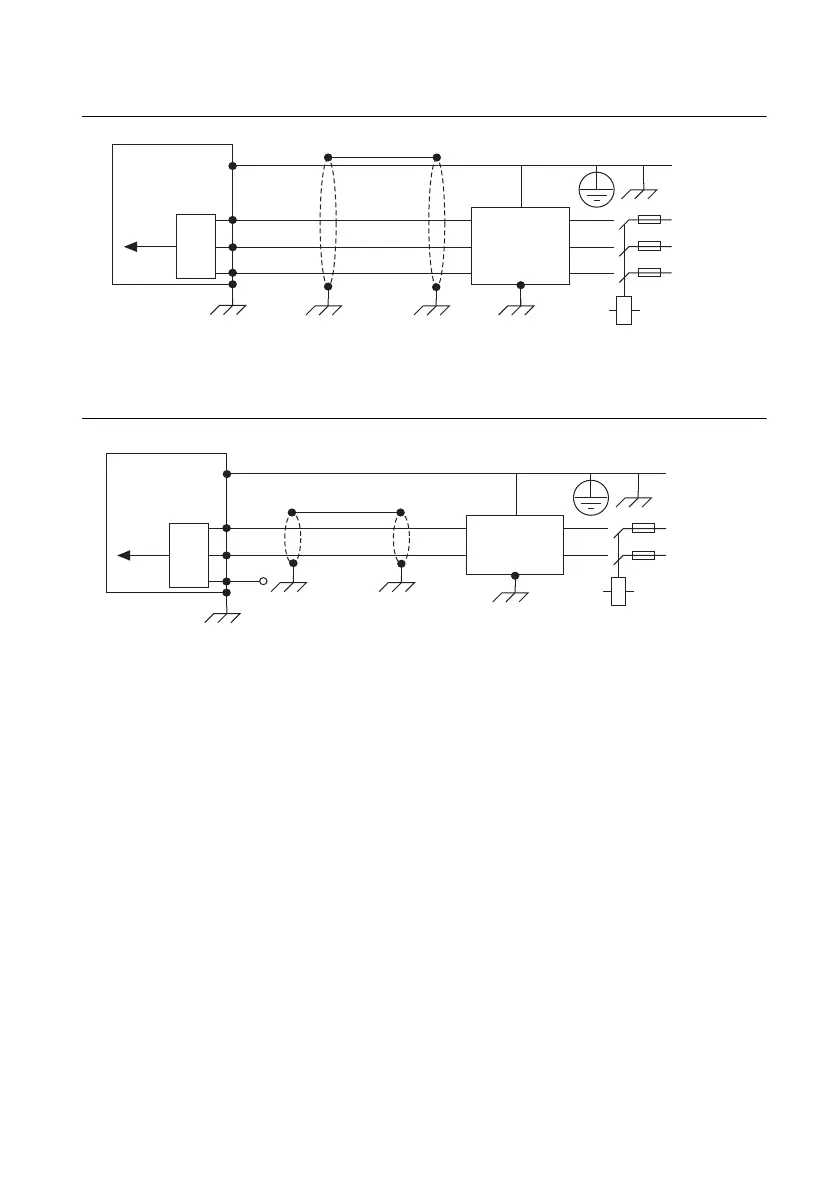

Figure 14 shows three-phase connection.
Figure 14. AC Input Power Three-Phase Connection
Figure 15 shows single-phase connection.
Figure 15. AC Input Power Single-Phase Connection
Step 7: Connect the Drive Communication
Complete the following steps to set up the drive for software configuration using Ethernet. These
steps assume you are connecting the AKD servo drive using a hub, switch, or router using
DHCP. If you cannot use DHCP, refer to
Connecting to the PC Using a Static IP in the Tips and
Troubleshooting
section for instructions about direct connection using a static IP address.
1. Set S1 and S2 on the drive to 0 to configure the drive for DHCP mode. The drive obtains
an IP address from an external DHCP server if one exists on the network. If no DHCP
server is present, the drive assumes an automatic private IP address in the form of
169.254.x.x. This process may take up to a minute to complete. Figure 9 shows the
locations of S1 and S2.
2. Connect the AKD servo drive X11 service port to a hub, switch, or router using an Ethernet
cable.
DC
Out
L1
User-Provided
Filter
(Optional)
L2
L3
AKD Servo Drive
Protective
Earth
L1
L2
L3
Protective
Earth
L1
U
ser-Provided
Filter
(Optional)
L2
L3
L1
Neutral (L2)
Protective
Earth
Protective
Earth
DC
Out
AKD Servo Drive
To Next Page
