4 | ni.com | Getting Started with NI 7340/7350 Controllers and AKD Drives

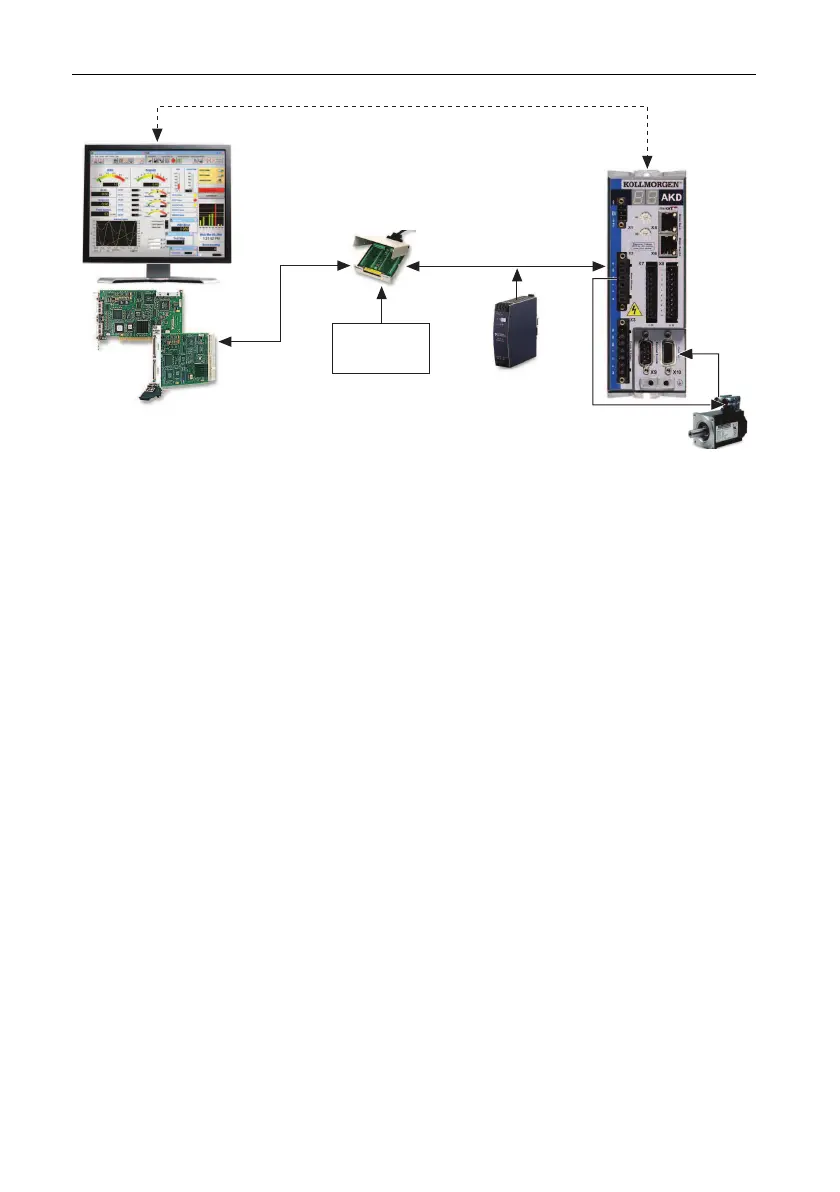

Figure 2. UMI-7764 to AKD Drive Connections
Related Documentation
The following documents contain additional information that you may find helpful. All
referenced documents ship with the product and are available at ni.com/manuals.
NI 7340 User Manual or NI 7350 User Manual—Describes the electrical and mechanical
aspects of the NI 7340/7350 motion controller, and contains information about installing
and operating the device.
Getting Started with NI-Motion for NI 73xx Motion Controllers—Provides instructions for
installing and getting started with the NI-Motion driver software and NI motion controllers.
AKD Installation Manual—Provides additional information about the electrical and
mechanical aspects of the AKD servo drive, including important safety information and
advanced configuration information.
NI-Motion Help—Contains information about designing a basic move, designing a
multi-axis move, incorporating image and data acquisition into motion applications, and
working with common motion concepts, such as contouring and breakpoints. This
document is task-based and takes you through each phase of designing and executing a
motion application.
NI-Motion Function Help—Contains function reference information for C and Visual Basic
and provides details about each function, including a description of the function, a list of
the function parameters, illustrations, and error codes.
NI-Motion VI Help—Contains LabVIEW VI reference information and provides details
about each VI, including VI descriptions, lists of VI parameters, usage, illustrations, and
error codes.
Measurement & Automation Explorer Help for Motion—Provides information about using
MAX to configure the NI motion controller as well as advanced conceptual information
about topics such as Bode analysis and control loop parameters.
Host PC
Ethernet Cable
(Initial Configuration Only)
SH68-C68-S
Cable
+24 V Power Supply
(NI PS-15 Shown)
UMI-7764 to
AKD Drive Cable
AKD Analog
Servo Drive
UMI-7764
+5 V Power
Supply
