Getting Started with NI 7340/7350 Controllers and AKD Drives | © National Instruments | 3
Software
 NI-Motion 7.6 or later driver software
 One of the following software packages and documentation:
– LabVIEW 8.5 or later
– LabWindows
™
/CVI
™
8.5 or later
– Microsoft Visual C++
– Microsoft Visual Basic
 AKD WorkBench software
Figures 1 and 2 show the hardware connections using a UMI-7772/74 and UMI-7764,
respectively.

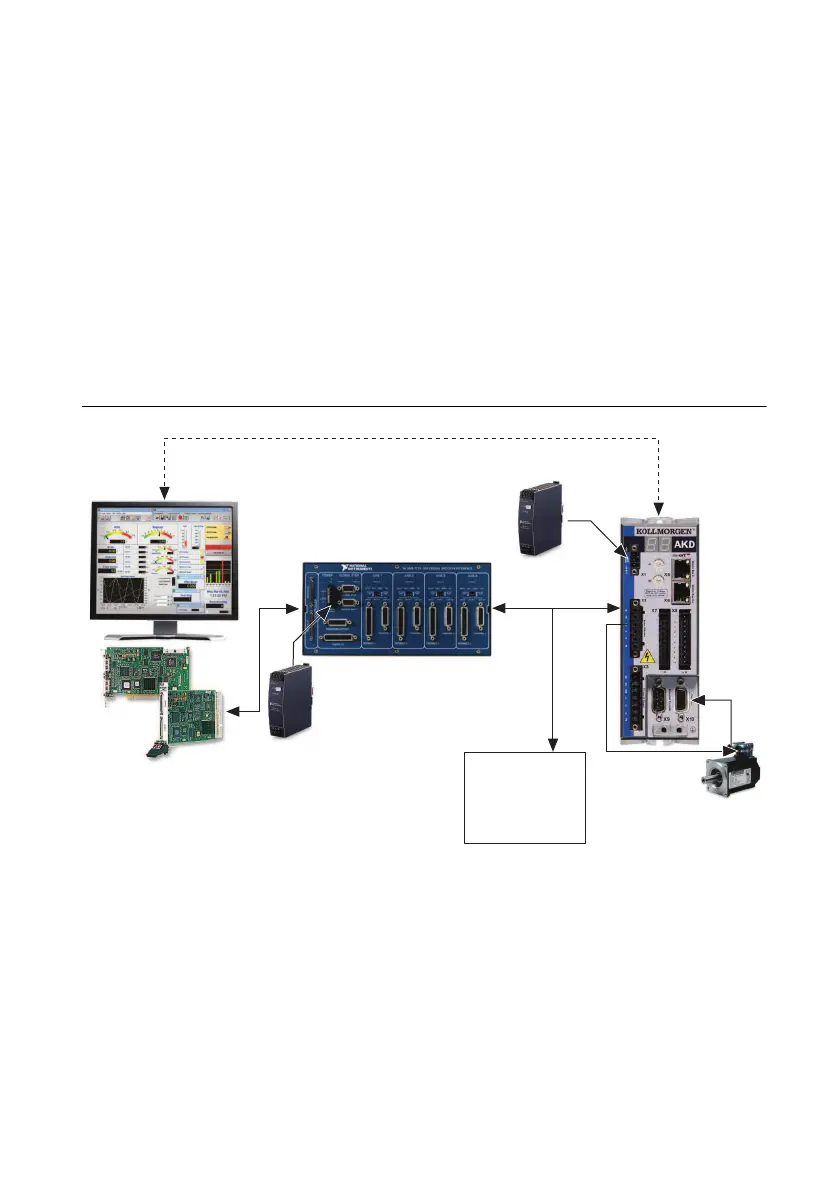

Figure 1. UMI-7772/74 to AKD Drive Connections
Host PC
SHC68-
C68-S
Cable
UMI-7772/74
to AKD
Drive Cable
Screw Terminal
Connector for
Additional I/O
(Limits, etc.)
Ethernet Cable
(Initial Configuration Only)
+24 V Power Supply
(NI PS-15 Shown)
UMI-7772/74
AKD Analog
Servo Drive
+24 V Power Supply
(NI PS-15 Shown)
