XLTEK Protektor32 Instructions for Use
25

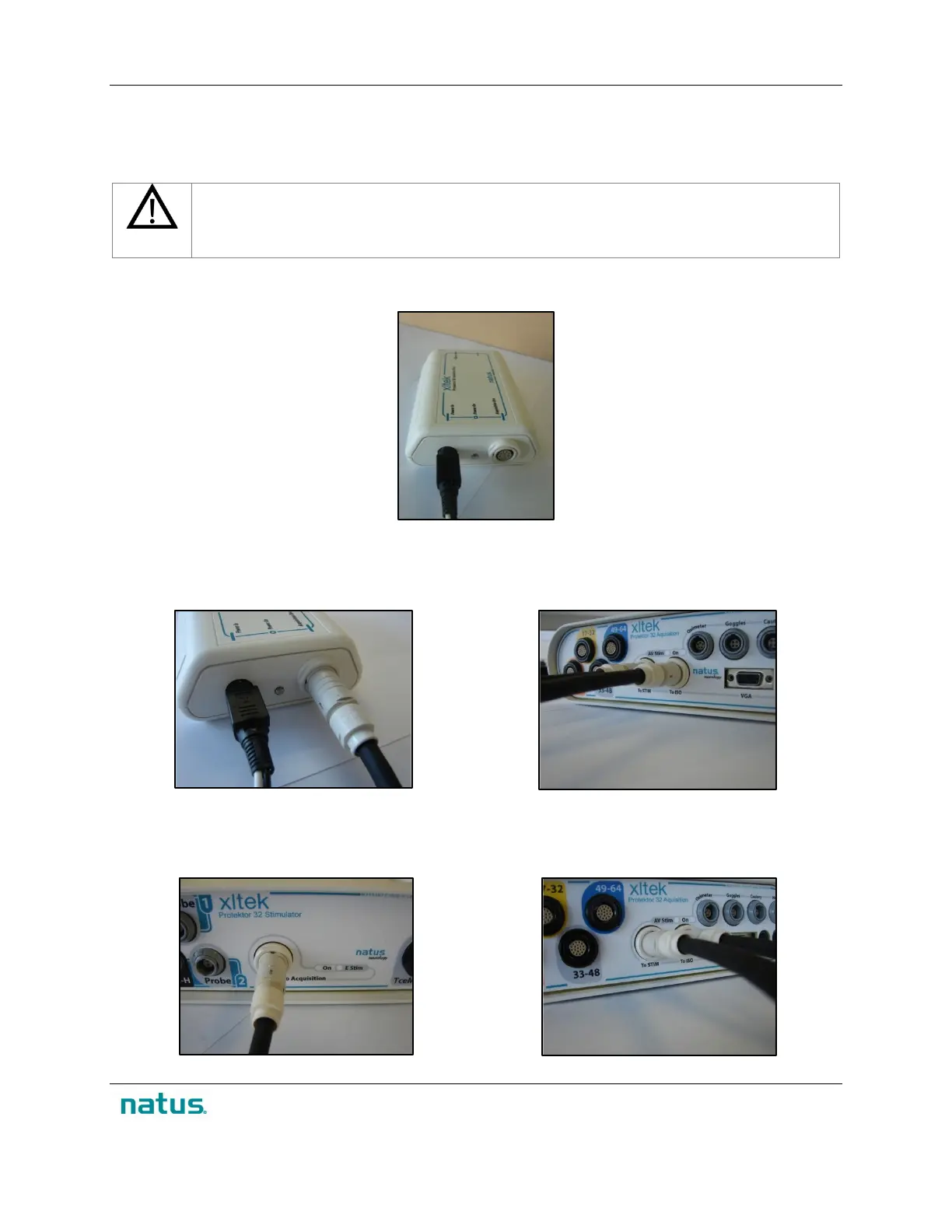

Connecting Protektor Headbox
The instructions which follow demonstrate how to connect the Protektor32 headbox to a laptop or desktop
computer.
Position the equipment so that the detachable mains cord is readily accessible for
disconnection.
1. Plug the power cord into the Isolation Box.
Figure 1: Power Connected to Headbox Power Connection
2. Connect the Isolation–Acquisition cable into the Isolation box and to the Acquisition box.
Figure 2: Isolation-Acquisition cable connected to Isolation Box
3. Connect the Acquisition box to the Stimulator box using the Acquisition – Simulator cable:
To Next Page
