Importer Plus Technical Instruction Manual Pre-installation tasks
Page 2-4 Issue 0.02 2010-03-29

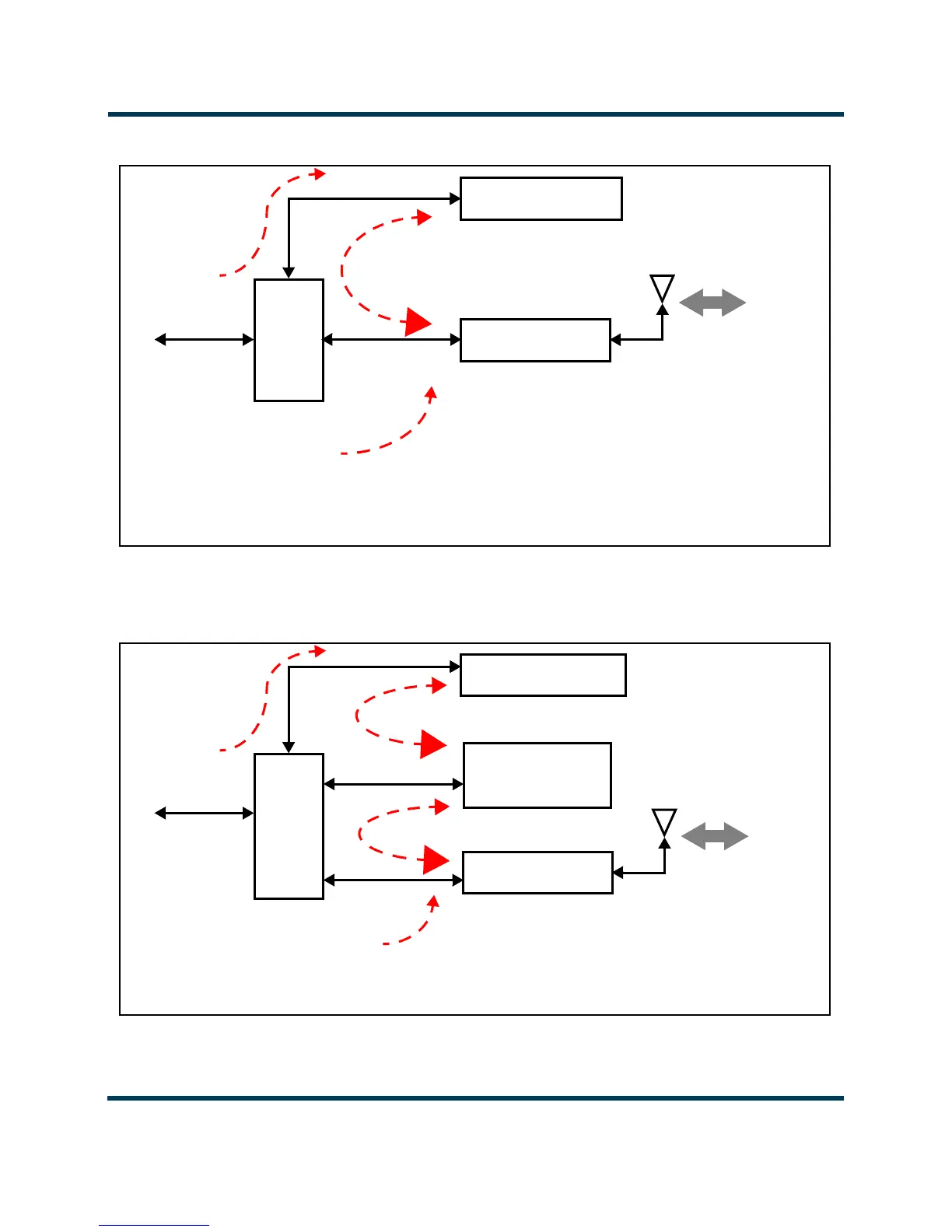

Figure 2.2: Example of an Importer at the Studio
Note: MPS PAD, SPS PAD, and AAS data are optional HD data services.
Figure 2.3: Example of an Importer and Exporter or Exporter Plus at the Studio
Note: MPS PAD, SPS PAD, and AAS data are optional HD data services.
4 Port
LAN
Switch
IMPORTER PLUS
Digital STL
Note: Dashed direction lines show logical data
connections. Where data flows in both directions,
the larger arrowhead indicates the direction of the
majority of the data.
MPS PAD and other
transmitter site LAN
traffic.
SPS PAD
AAS Data
I2E Link (< 150 kb/s)
XMTR
SITE
Studio LAN
4 Port
LAN
Switch
IMPORTER PLUS
Digital STL
Note: Dashed direction lines show logical data
connections. Where data flows in both directions,
the larger arrowhead indicates the direction of the
majority of the data.
MPS PAD and other
transmitter site LAN
traffic.
SPS PAD
AAS Data
(< 150 kb/s)
XMTR
SITE
Studio LAN
EXPORTER
I2E
E2X
PLUS
