Nautilus E628 - Step 2: Attach Rail Assembly

11

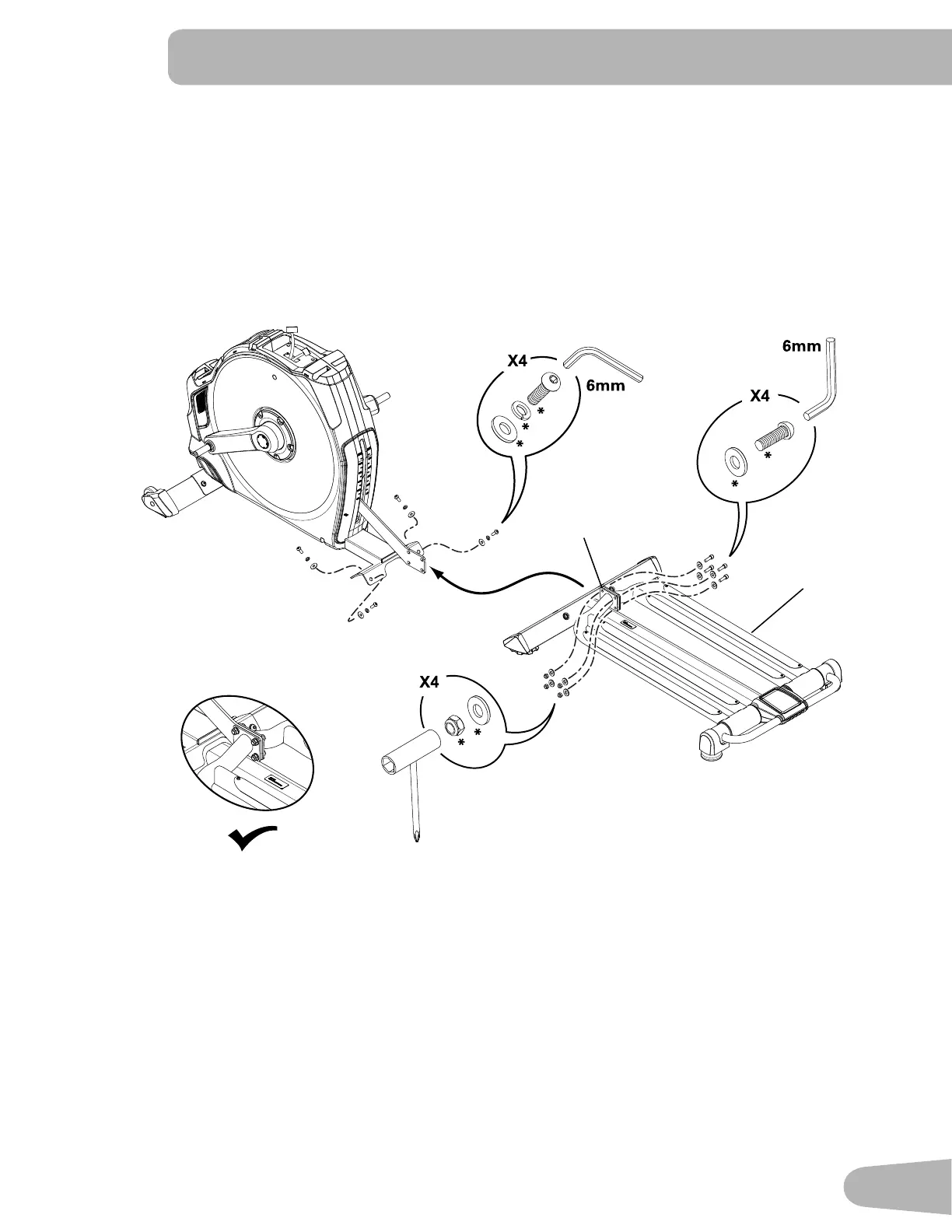

2. Attach Rail Assembly to Frame Assembly
Note: Hardware (*) is pre-installed and not on the Hardware Card. Separate the Rail mount plates (11a) and lift to
align the holes and install the hardware.
The plastic scratch guard strips on the Rails help to protect the finish during assembly.
11
11a
