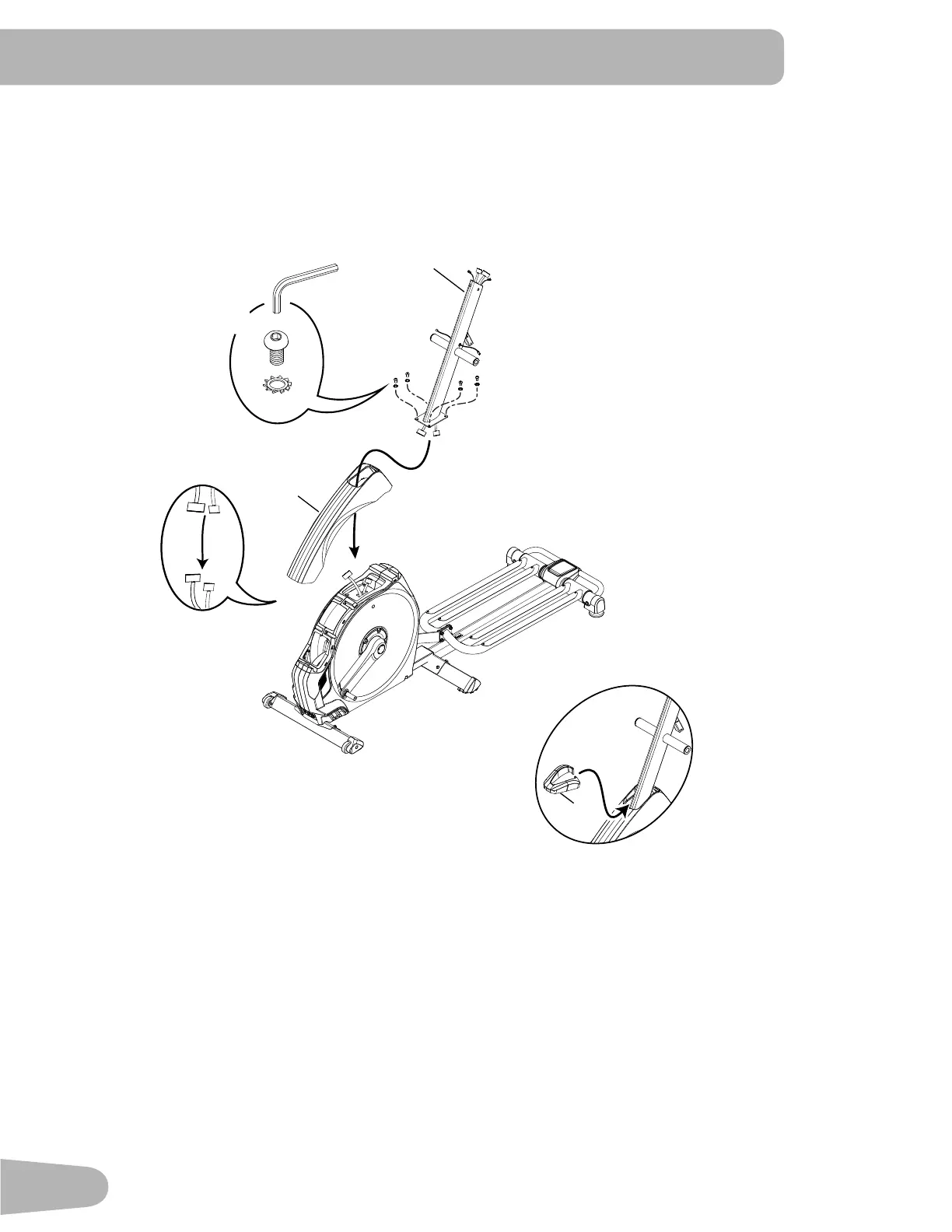

3. Connect the Cables and Attach the Console Mast to Frame Assembly
NOTICE : Put the Console Mast through the opening in the Upper Shroud. Before you connect the cables, remove
the wire tie that holds the Frame cables in place on the mount plate. Do not crimp cables. Fully tighten
the hardware.
1
20
B
D
6mm
X4
21
