Nautilus T616 - Maintenance Parts

50
Maintenance Parts

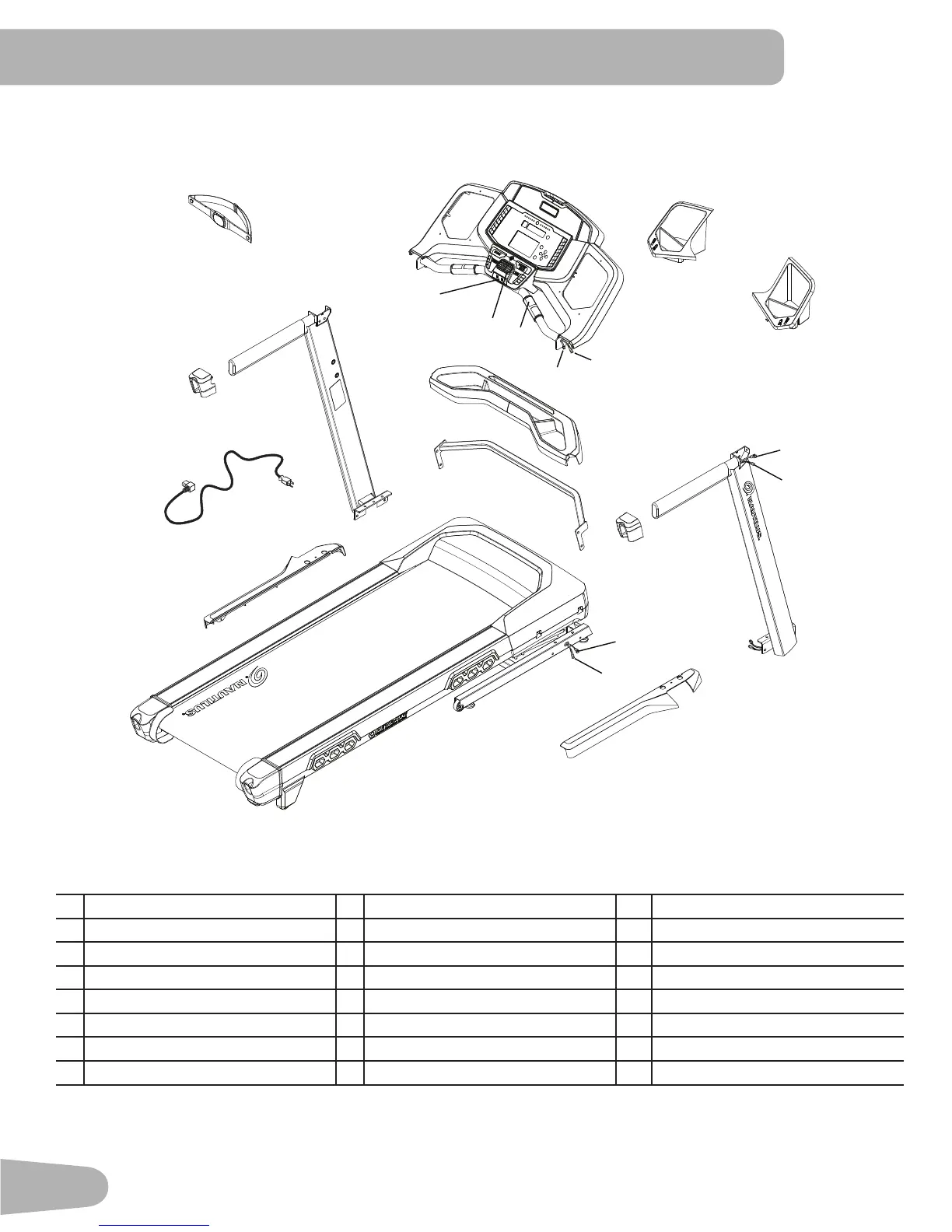

A Console Assembly I RightUprightCable(I/O) Q Crossbar
B Safety Key Port J Right Upright Grounding Cable R Tray
C Fan K Upright, Right S Base Shroud, Left
D Contact Heart Rate Sensor L Handlebar Shroud, Right T Upright, Left
E ConsoleCable(I/O) M Base Shroud, Right U Handlebar Shroud, Left
F Console Grounding Cable N BaseCable(I/O) V Power Cord
G Cupholder, Left O Base Grounding Cable W Heart Rate Chest Strap
H Cupholder, Right P Base Assembly
A
L
M
T
Q
U
V
P
W
G
I
B
E
H
C
D
N
S
K
F
J
O
R
