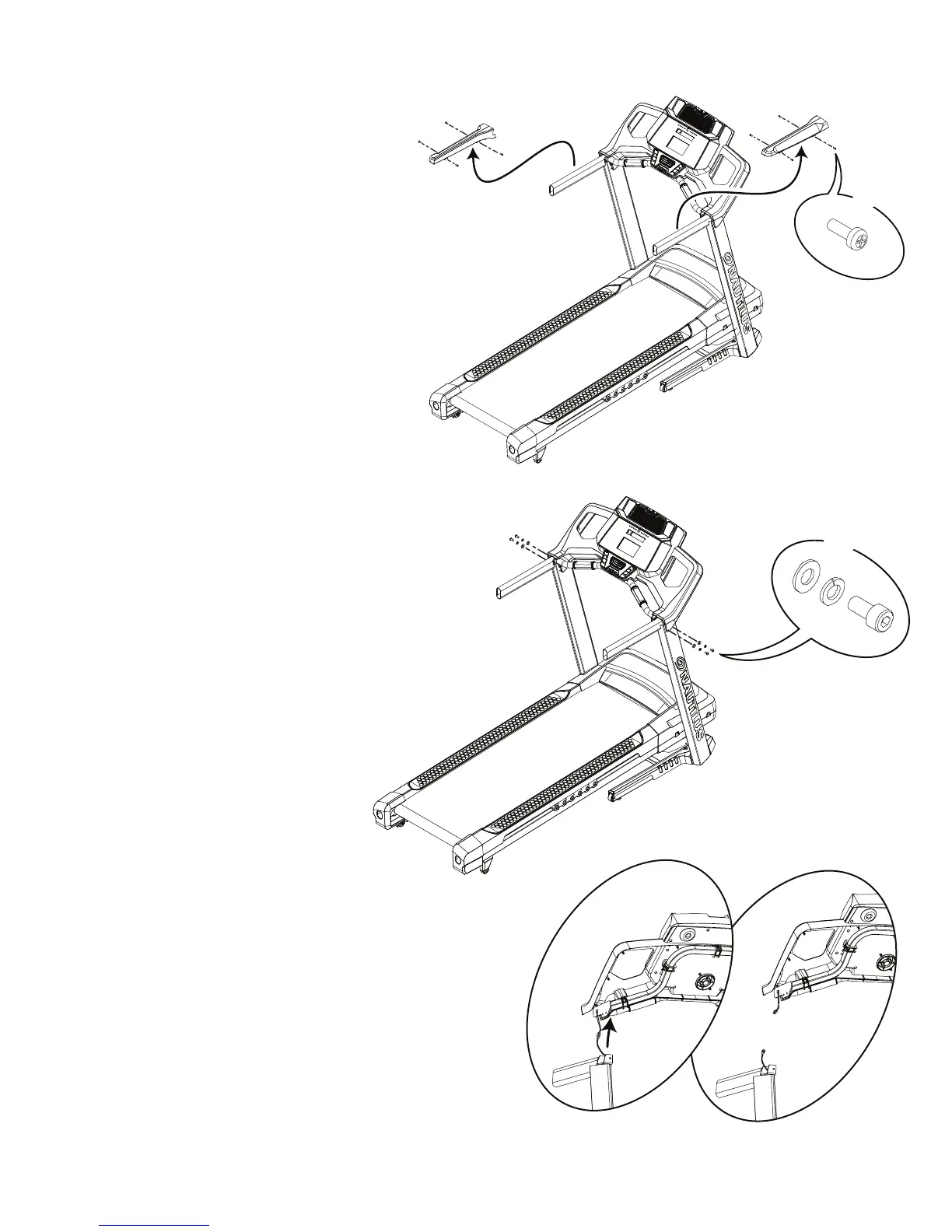

4. Using a #2 Phillips screwdriver, remove the 8 indicated screws from
Upper Handlebar Shrouds.
Note: there are no Upper Handlebar Shrouds on the Nautilus
™
T624/T684
and Schwinn
®
530machines.
5.Usinga6mmhexwrench,removetheindicatedhardwarefromthe
Uprights.
6. Slightly pull the right side of the Console upward enough to expose the
Input/Output (I/O) Cable from the Right Upright, and disconnect it.
Note: this step may take two people to safely hold the Console and
Handlebar Assembly and disconnect the cables. Do not crimp the Cables.
7. Fully remove the Console and Handlebar Assembly from the Uprights.
C
X8
F
B
X4
E
F
B
X4
E
