Deck Suspension

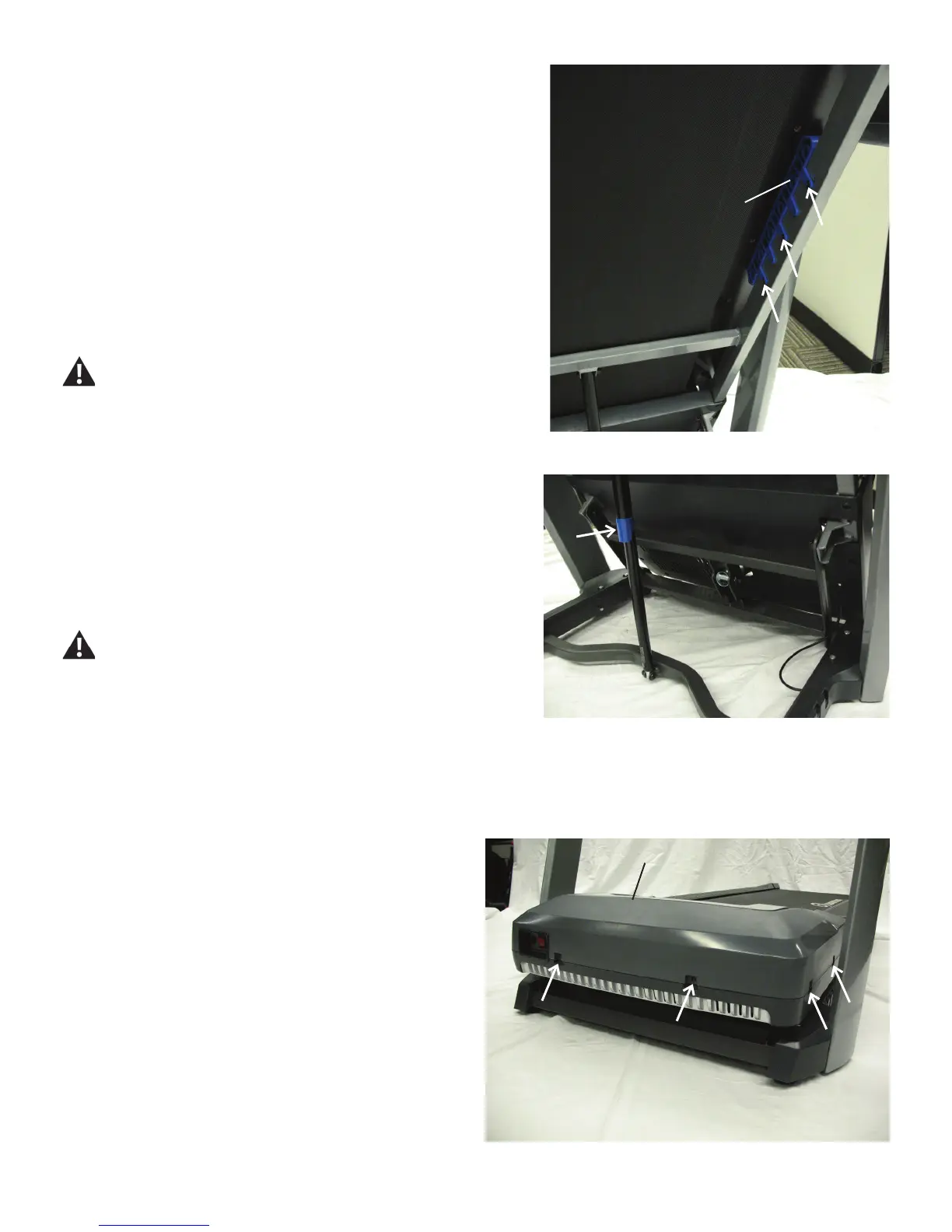

11. Using a #2 Phillips screwdriver remove the 3 indicated screws from
the Right Deck Suspension.
Note: there are only 2 screws attaching the Deck Suspension on the
Nautilus
™
T624, T684, and Schwinn
®
530machines.
12. Remove the Right Deck Suspension.
13.Makesurethereissufcientspacetolowerthewalkingdeck.
Keep a minimum clearance behind the machine of 2 m (79”) and
0.6 m (24”) on each side. This is the recommended safe distance
for access, movement and emergency dismounts from the
machine.
14. Make sure there is no object on or around the treadmill to spill or
cause blockage from the fully unfolded position.
15.Slightlypushthewalkingdeckforwardtowardtheconsole.Withyour
foot lightly push the top part of the hydraulic lift forward until the locking
tube releases and you can pull the walking deck away from the console.
Hold up the rear of the walking deck, and move to the side of the machine.
Keep clear of the movement path of the walking deck.
16. The hydraulic lift is set up to drop gradually. Hold onto the walking
deck until approximately 2/3 of the movement down. Make sure that you
use proper lifting technique; bend your knees and keep your back straight.
Be aware that the walking deck can possibly drop quickly in the last part of
the movement.
17. Using a #2 Phillips screwdriver remove the 4 indicated screws, and
two additional screws on the far side, from the Motor Cover and remove it.
Motor Cover

Nautilus T624 Specifications

General

Quantity per pack	1 pc(s)
Foldable	Yes
Bluetooth	No
Incline range	0 - 12 %
Maximum speed	19.3 km/h
Minimum speed	0 km/h
Product color	Black, Grey
Number of programs	22
Maximum user weight	136 kg
Backlight color	Blue

Weight and Dimensions

Width	- mm
Weight	- g
Running area (W x L)	20 x 55 mm
Running belt thickness	1.5 mm
Running deck thickness	19 mm
