NOTICE: ThisdocumentprovidesinstructionsforthereplacementofthePowerInletontheNautilus
™
T624/T626/T684/T686 and Schwinn
®
530/570 Treadmills.
If you need assistance, please contact your local Nautilus distributor. To find your local distributor, go to: www.nautilusinternational.com
Note: The Nautilus™ T626 is used in the following images. The procedure
is the same for the Nautilus™ T624/T684/T686 and Schwinn
®
530/570
models.

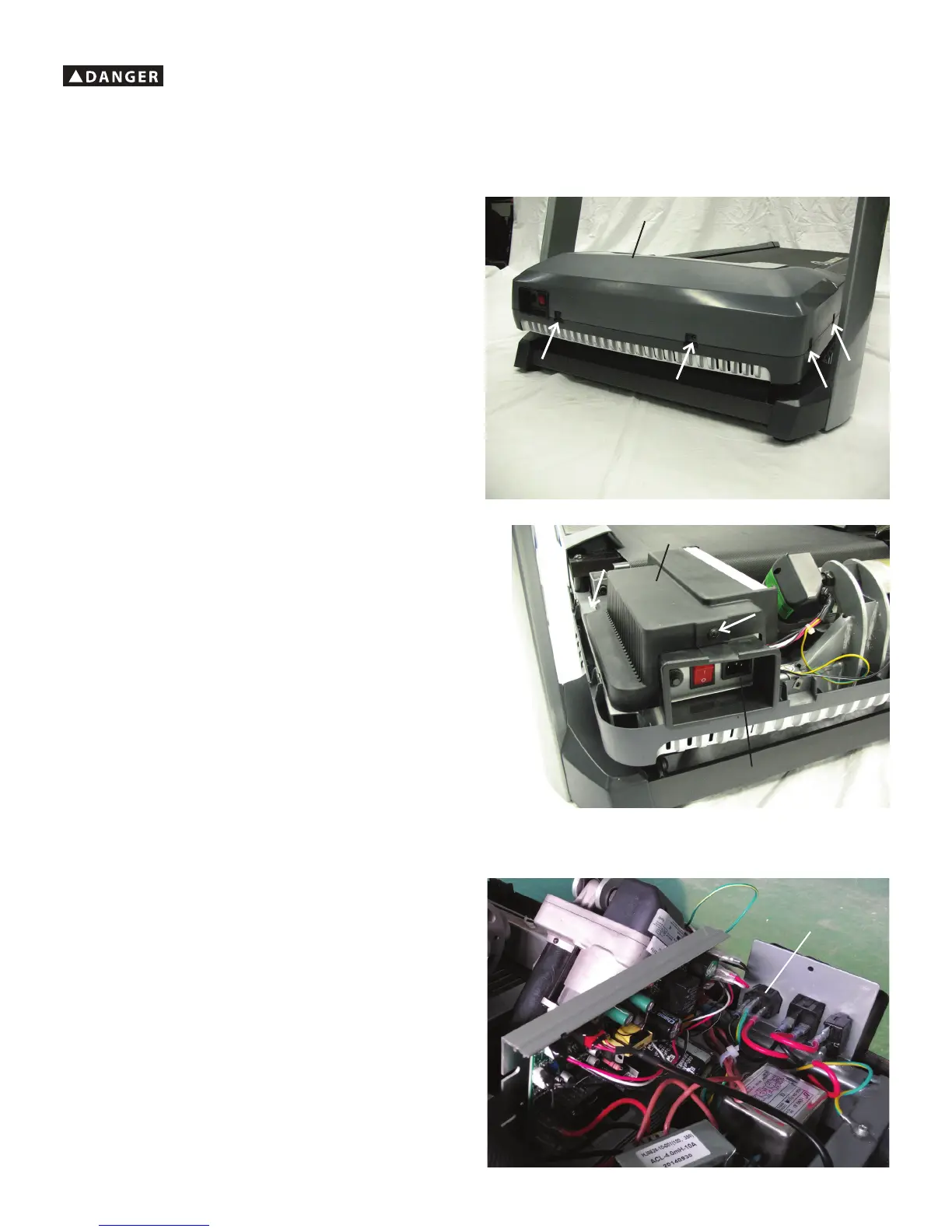

1.Unplugthepowercordfromthemachineandwait5minutes.Placethe
power cord in a secure location.
2. Using a #2 Phillips screwdriver remove the 4 indicated screws, and two
additional screws on the far side, from the Motor Cover and remove it.
3. Using a #2 Phillips screwdriver remove the 2 indicated screws from the
MCB Cover and remove it.
4. Release the Securing Clips from the Power Inlet and remove it from the
Frame.
!
To reduce the risk of electrical shock or unsupervised usage of the equipment, always unplug the power cord from the wall outlet
andthemachineandwait5minutesbeforecleaning,maintainingorrepairingthemachine.Placethepowercordinasecure
location.
Motor Cover
MCBCover
Power Inlet
Power
Inlet
