Nautilus T624 Service Manual

60

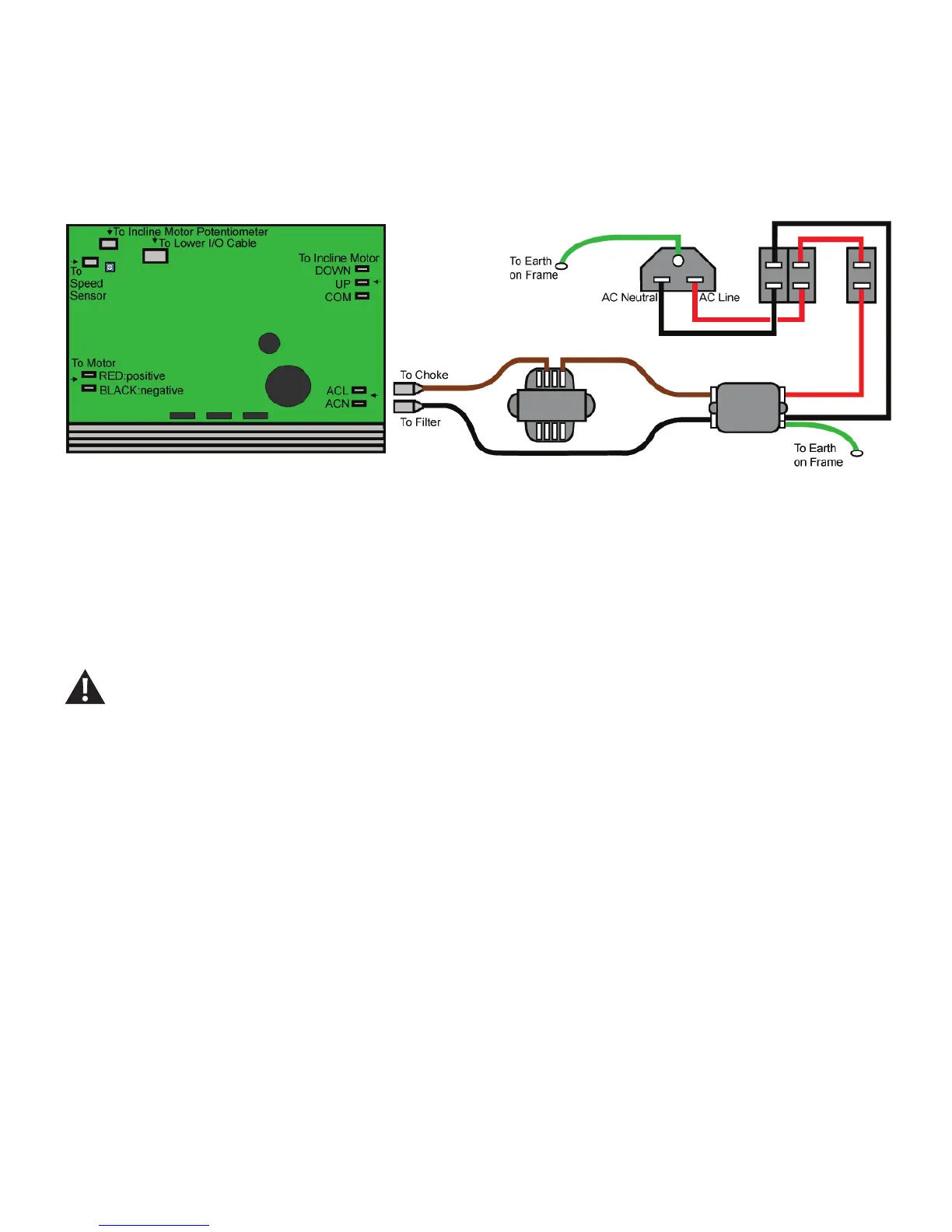

5.RemovetheconnectorsandattachthemtothenewPowerInlet.
Be sure to attach them in the same locations on the new Power Inlet.
6. Insert the new Power Inlet into the Frame being sure the Securing
Clips engage.
7. Re-install all remaining parts that were removed in reverse order.
8. Final Inspection
Inspect your machine to ensure that all hardware is tight and compo-
nents are properly assembled.
Do not use until the machine has been fully assembled and
inspected for correct performance in accordance with the
Owner’s Manual.

Nautilus T624 Specifications

General

Quantity per pack	1 pc(s)
Foldable	Yes
Bluetooth	No
Incline range	0 - 12 %
Maximum speed	19.3 km/h
Minimum speed	0 km/h
Product color	Black, Grey
Number of programs	22
Maximum user weight	136 kg
Backlight color	Blue

Weight and Dimensions

Width	- mm
Weight	- g
Running area (W x L)	20 x 55 mm
Running belt thickness	1.5 mm
Running deck thickness	19 mm
