Nautilus T624 Service Manual

96
Incline Motor Assembly

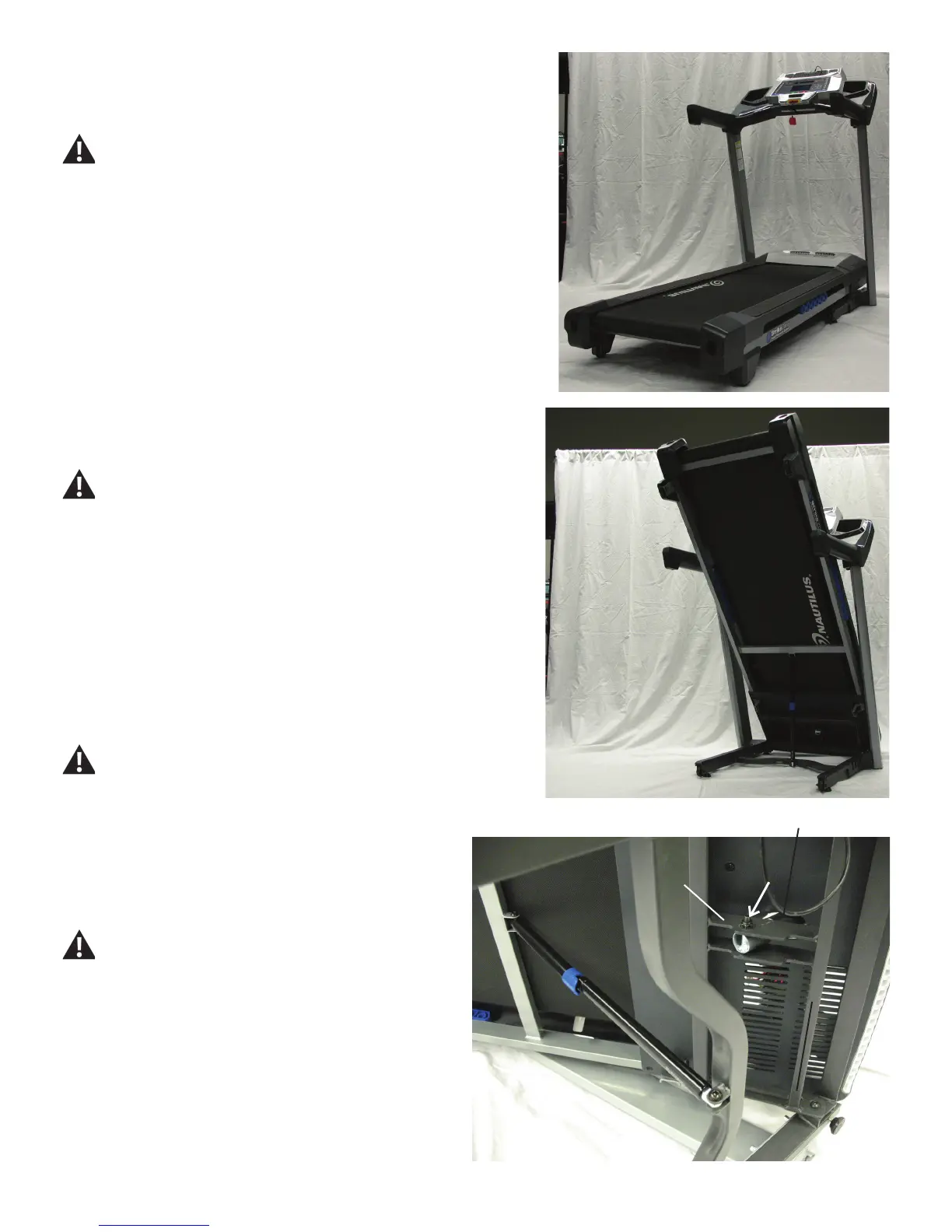

5.Makesurethatthereissafeclearancearound,onandabovethe
treadmill. Make sure there is no object to spill or cause blockage from the
fully folded position.
Be sure there is adequate height clearance for the raised deck.
6. Using the support bar found below the rear of the walking belt, lift the
walking deck fully upward and engage the hydraulic lift. Be sure that the
hydraulic lift is correctly locked in place. You will hear an audible click
when the hydraulic lift shifts into the locked position.
Use proper safety precautions and lifting techniques. Bend your
knees and elbows, keep your back straight and pull up equally with
both arms. Make sure that your own physical strength is capable of
lifting the walking deck until it engages the locking mechanism. Use
a second person if necessary.
Do not use the walking belt or rear roller to lift the treadmill. These
parts do not lock in place and can abruptly move. Injury to you or
damage to the machine can occur.
7. Make sure that the locking mechanism is engaged. Carefully pull back
on the walking deck and make sure that it does not move. When you
do this, keep clear of movement path in case the treadmill lock is not
engaged.
Do not lean against the treadmill when it is folded. Do not put items
on it that could cause it to become unstable or fall.
8. Make sure that there is safe clearance around, on and above the
treadmill to one side. Tilt the machine onto the side being sure not to
grasp the Console.
A second person is required to assist with the tilting of the
machine. Do not tilt the machine unless the walking deck is in
the folded, locked position. Be sure there is adequate
clearance for the raised deck. Some components of the
equipment can be heavy or awkward. Enlist the service of a
second person when you do maintenance steps involving
these components. Do not try to do heavy or awkward steps
on your own.
9. Using two 17mm wrenches, remove the hardware from the Incline
Motor Assembly.
Incline Weldment
