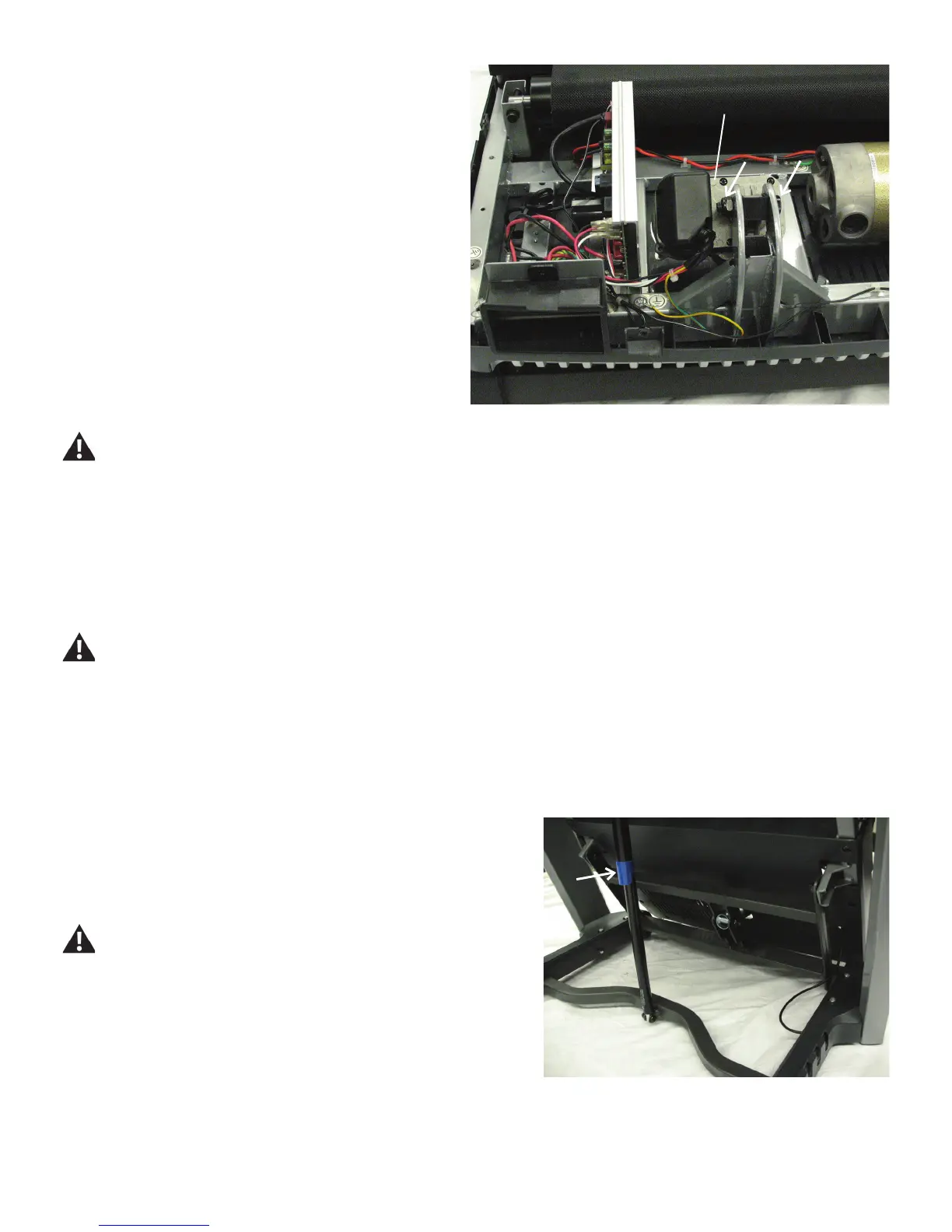

10. Using a 16mm and a 17mm wrench in the Motor Compart-
ment, remove the hardware from the Incline Motor Assembly.
Remove the Incline Motor Assembly noting how it extends from
the Motor Compartment through to the Incline Weldment.
11. Installation of the Incline Motor Assembly is the reverse
procedure.
Note: Be sure to attach the cables to the proper locations on the
Motor Control Board. Do not crimp any cables.
12. Make sure that there is safe clearance beside the tread-
milltooneside.Makesurethereissufcientspacetotiltthe
machine back upright.
This step requires two people. Be sure there is adequate
clearance for the raised deck. Some components of the
equipment can be heavy or awkward. Enlist the service
of a second person when you do maintenance steps
involving these components. Do not try to do heavy or
awkward steps on your own.
13.Makesurethereissufcientspacetolowerthewalking
deck.
Keep a minimum clearance behind the machine of 2 m
(79”) and 0.6 m (24”) on each side. This is the recom-
mended safe distance for access, movement and
emergency dismounts from the machine.
14. Make sure there is no object on or around the treadmill to
spill or cause blockage from the fully unfolded position.
15.Slightlypushthewalkingdeckforwardtowardtheconsole.
With your foot lightly push the top part of the hydraulic lift
forward until the locking tube releases and you can pull the walk-
ing deck away from the console. Hold up the rear of the walking
deck, and move to the side of the machine.
Keep clear of the movement path of the walking deck.
16. The hydraulic lift is set up to drop gradually. Hold onto the
walking deck until approximately 2/3 of the movement down.
Make sure that you use proper lifting technique; bend your
knees and keep your back straight. Be aware that the walking
deck can possibly drop quickly in the last part of the movement.
17. Re-install all remaining parts that were removed in reverse
order.
