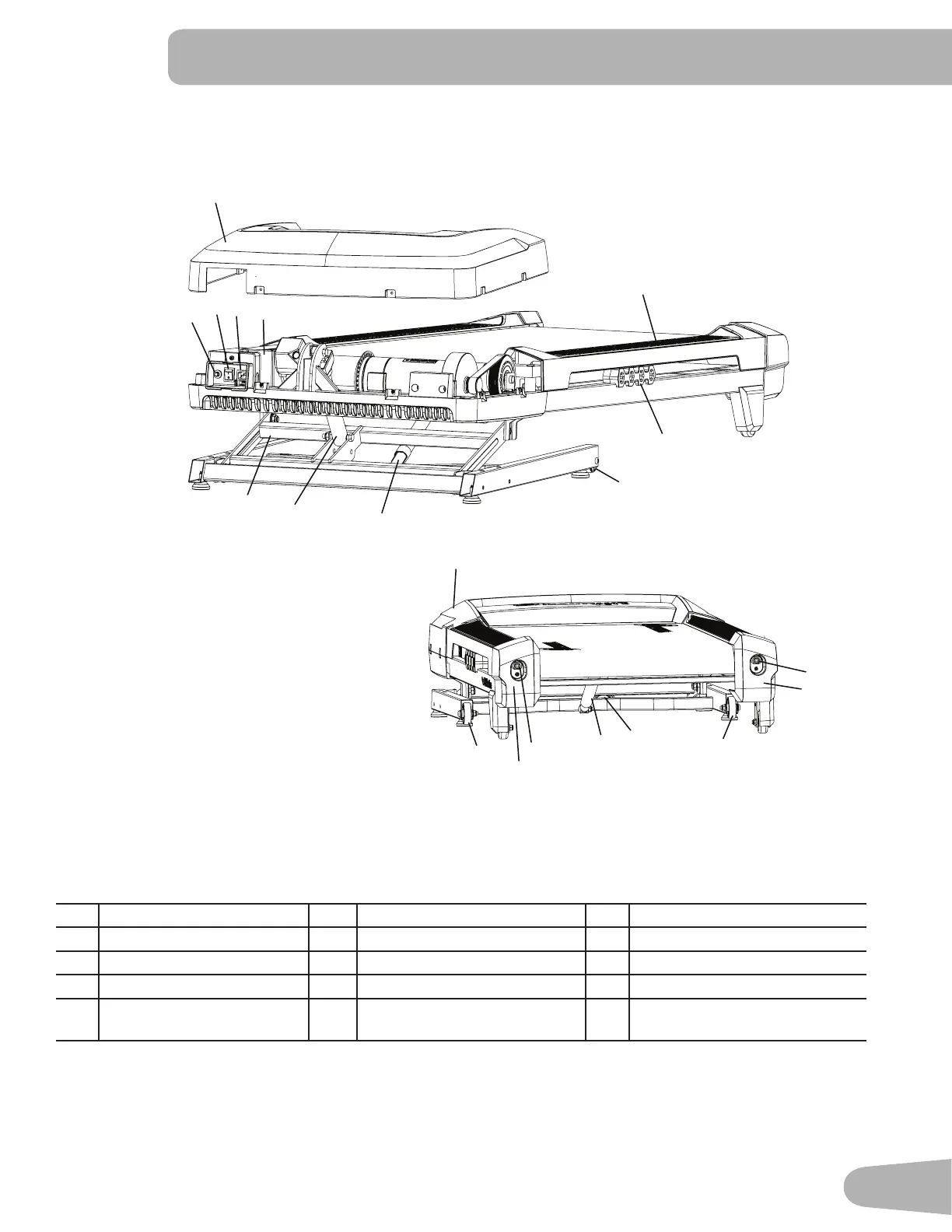

Maintenance Parts ( Frame )
Front
Back
S Fuse X Base Support CC Incline Adjuster
T Power Switch Y Deck Cushioners DD Pivot Assembly
U Power Input Z Transport Wheel EE Belt Tensioner
V Motor Cover AA Leveler FF Rear Roller Cover
W Side Foot Support Rails BB Lifting Cylinder GG MotorControlBoard(MCB)
Cover
EE
BB
EE
Z
Z
X
CC
FF
FF
GG
V
V
W
Y
AA
X
Z
BB
AA
CC
DD
AA
S
T
U

Nautilus T624 Specifications

General

Quantity per pack	1 pc(s)
Foldable	Yes
Bluetooth	No
Incline range	0 - 12 %
Maximum speed	19.3 km/h
Minimum speed	0 km/h
Product color	Black, Grey
Number of programs	22
Maximum user weight	136 kg
Backlight color	Blue

Weight and Dimensions

Width	- mm
Weight	- g
Running area (W x L)	20 x 55 mm
Running belt thickness	1.5 mm
Running deck thickness	19 mm
