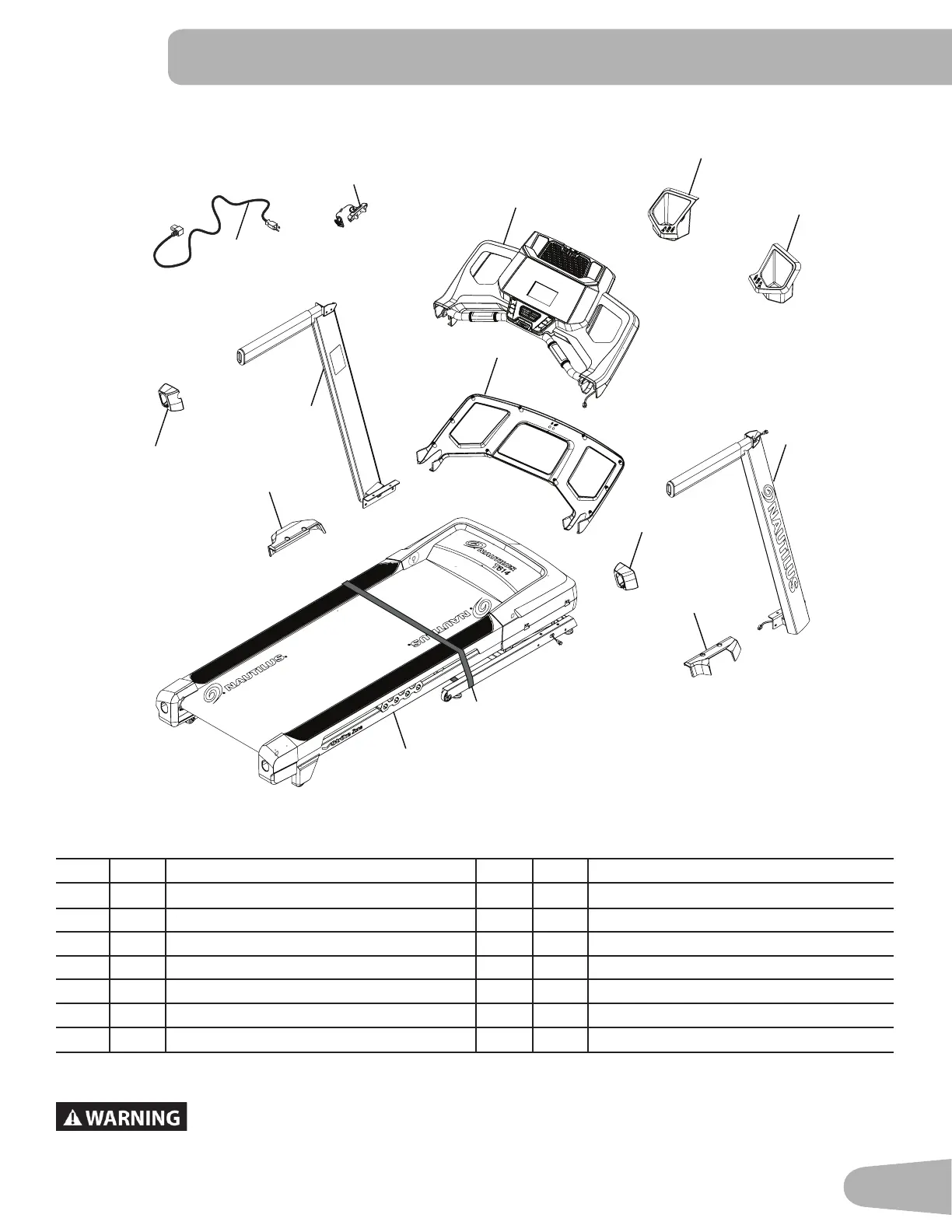

Nautilus T624 - PARTS LIST

9
PARTS
Item Qty Description Item Qty Description
1 1 Console Assembly 8 1
Base Assembly ( *)
2 1 Console Backing 9 1 Base Shroud, Left
3 1 Tray, Left 10 1 Upright, Left
4 1 Tray, Right 11 1 Handlebar Shroud, Left
5 1 Upright, Right 12 1 Power Cord
6 1 Handlebar Shroud, Right 13 1 Safety Key
7 1 Base Shroud, Right 14 1 MediaCable(notshown)
DO NOT CUT the Shipping Strap on the Base Assembly until it has been placed face up as
shown in the appropriate work space ( * ).
1
3
4
5
6
7
12
9
8
11
10
2
13
*
