Nautilus U628 - Assembly Instructions - Part 2; Handlebar Installation on Mast

10

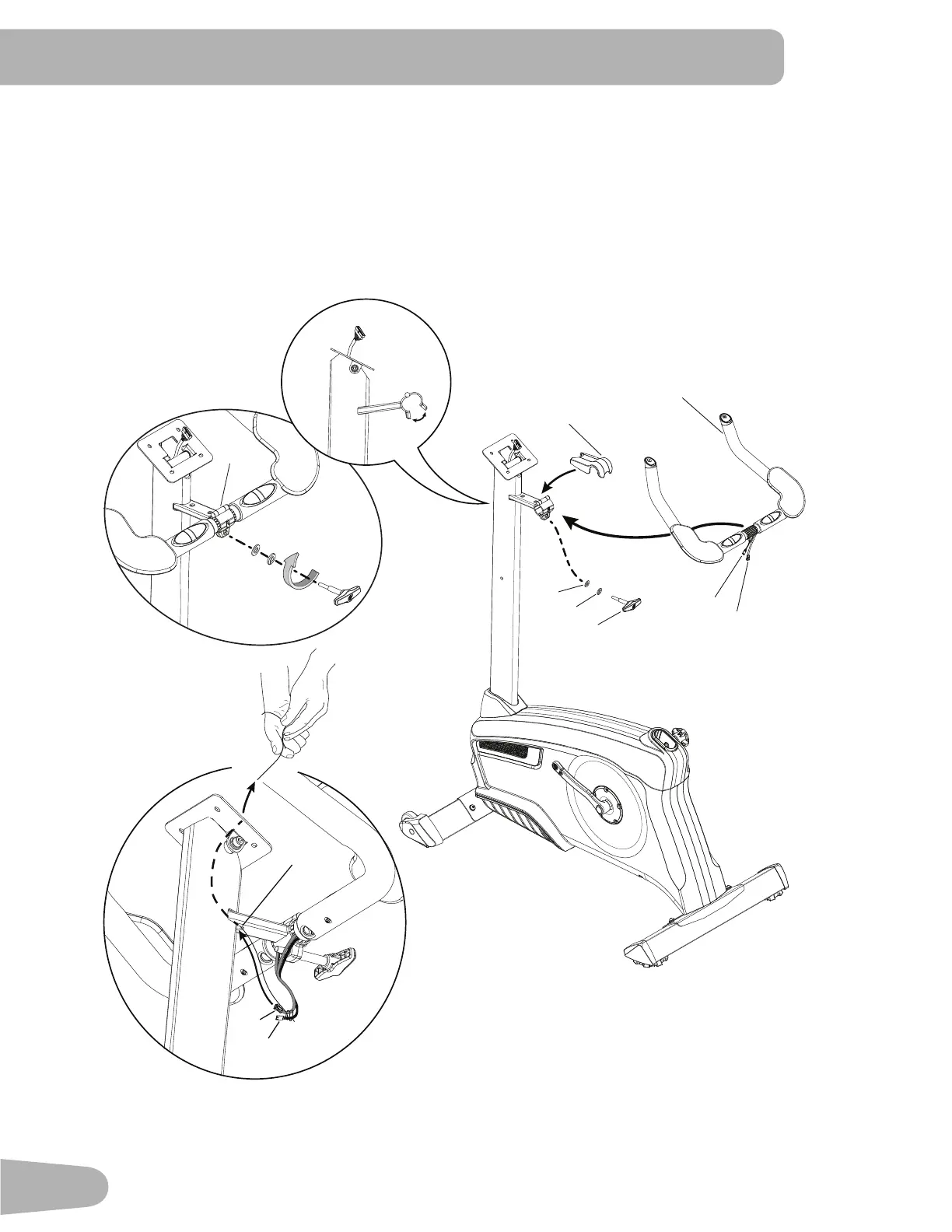

3. Install Handlebars on Console Mast
NOTICE: Do not crimp the cables. Put the Handlebar (7) in the bracket (5a), adjust the Handlebar to the desired
angle, and install the T-handle (D) through the holes. Use the pull cable in the Handlebar Mount to route
the HR cable (7a) and Resistance cable (7b) through the slot (5b) under the Handlebar Mount to the top
of the mast and through the opening in the console mount plate. Fully tighten the T-handle to keep the
Handlebar in position. Push the cover () into position on the Handlebar Mount.
7a
7
6
D
E
B
5a
D
E
B
7
5a
D
7a
7
5b
7b
7b
